Single-Cartridge vs Multi-Cartridge Tank Breather Filter: Which Configuration Should You Choose?
Single-cartridge and multi-cartridge tank breather filters serve the same basic purpose: they provide filtered air exchange for tanks and process vessels as the vessel is filled, emptied, fermented, heated or cooled.
The main difference is the number of filter cartridges and the total available filtration area. Cartridge quantity should be considered separately from cartridge type, filtration rating and the actual air-exchange requirements of the vessel.
For tank breathing applications, a single cartridge may be sufficient when one filter element can meet the required air exchange. A multi-cartridge configuration can provide greater total filtration area and may be selected when higher air-handling capacity, longer operating intervals or additional filtration area is required.
What Does a Tank Breather Filter Do?
A sanitary tank breather filter is installed on a storage tank, fermentation tank or other hygienic process vessel to filter air entering or leaving the vessel.
During filling, emptying, fermentation and temperature changes, the pressure and volume of air inside a vessel can change. A tank breather filter helps provide a controlled path for air exchange while reducing the risk of dust and other airborne contaminants entering the process.
This is different from a liquid filter housing. A tank breather filter is primarily part of the vessel’s air intake and exhaust path, rather than a device for filtering process liquid.

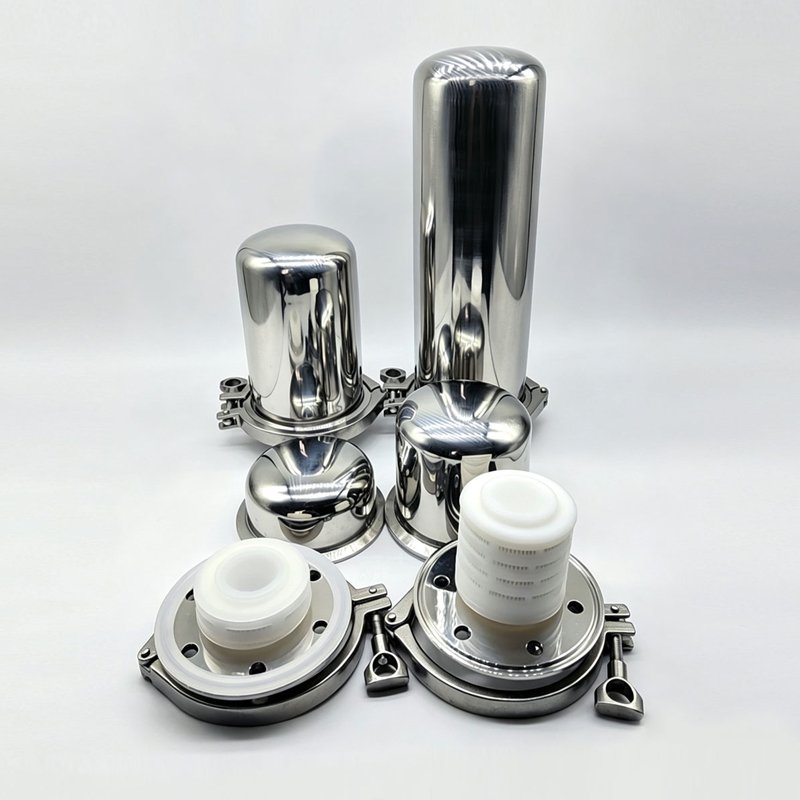

Single-Cartridge Tank Breather Filter
A single-cartridge tank breather filter uses one replaceable filter cartridge inside the sanitary housing. The compact configuration can be suitable when the vessel’s air-exchange requirement can be handled by one cartridge.
Haoqintech’s current single-cartridge tank breather configurations include:
- 2.5-inch configuration — compact option for smaller or space-constrained vessel installations.
- 5-inch configuration — single-cartridge option for sanitary fermenters, storage tanks and process vessels.
- 10-inch configuration — larger single-cartridge option for applications requiring a larger filter element.
View the related products:
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 2.5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 10″

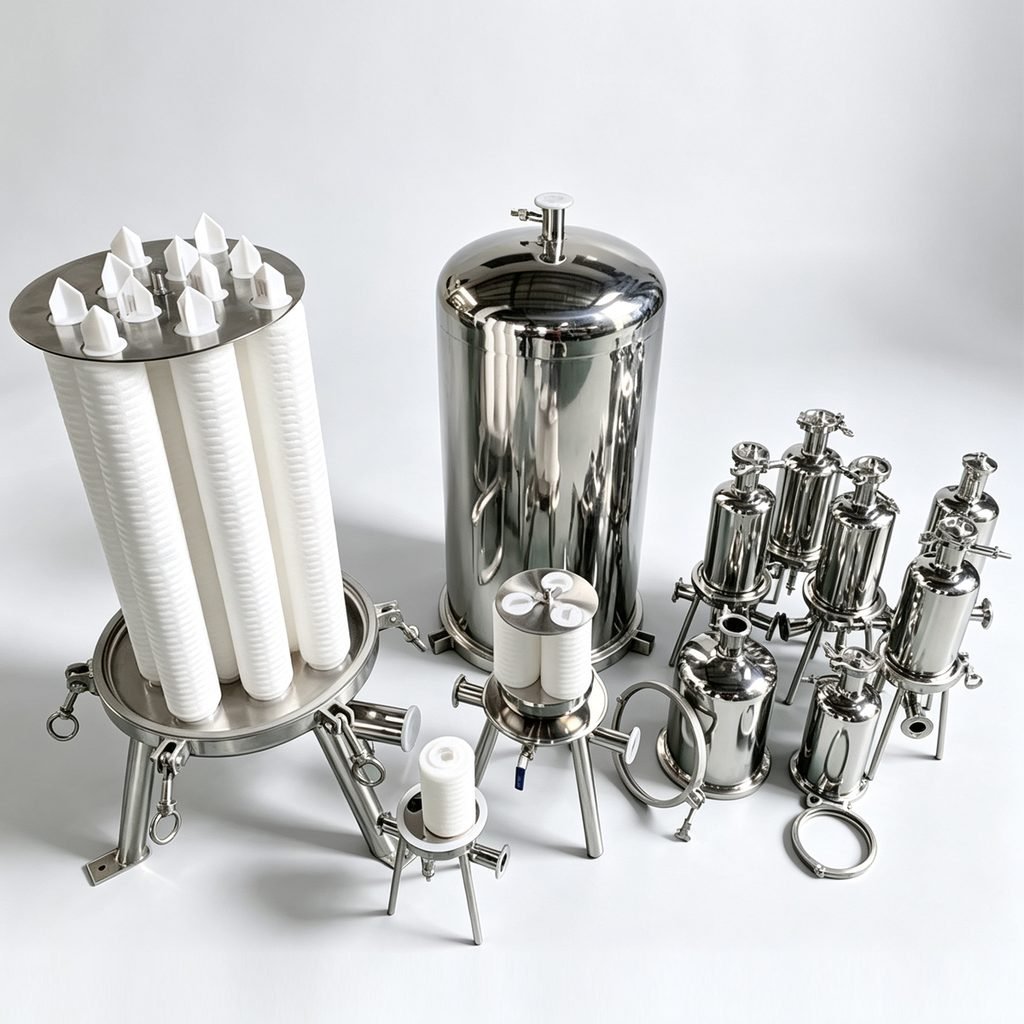

Multi-Cartridge Tank Breather Filter
A multi-cartridge tank breather filter uses multiple filter cartridges in one sanitary housing. The additional cartridges increase the total available filtration area and can provide greater potential air-handling capacity, depending on the cartridge specifications and actual process conditions.
Haoqintech’s current multi-cartridge example uses three PP filter cartridges and is available in 5-inch, 10-inch and 20-inch configurations.
View the 304 SS Sanitary Multi-Cartridge Tank Breather Filter
Single-Cartridge vs Multi-Cartridge: What Is the Difference?
Both configurations can be used for sanitary tank breathing and sterile air filtration. The key differences are related to cartridge quantity, available filtration area, installation size and the air-exchange requirements of the vessel.
In general:
- Single-cartridge: one filter element, simpler and more compact when one cartridge provides sufficient air-exchange capacity.
- Multi-cartridge: multiple filter elements, providing greater total filtration area and potentially greater air-handling capacity when the application requires it.
The number of cartridges does not by itself determine the filtration rating. Cartridge material, pore rating, dimensions, connection configuration and operating conditions must also be considered.
How to Choose the Right Tank Breather Configuration
1. Vessel Size and Air-Exchange Requirement
Consider the vessel volume and how quickly air must enter or leave the tank during filling, emptying, fermentation or other process changes. Do not select cartridge quantity from vessel size alone; the actual operating conditions should be considered.
2. Cartridge Quantity
Choose a single-cartridge configuration when one filter element can meet the required air-exchange conditions. Consider a multi-cartridge configuration when greater total filtration area or additional air-handling capacity is required.
3. Filter Cartridge Type and Rating
Cartridge quantity is only one part of the selection. PP, PTFE and other cartridge options can have different characteristics, and the appropriate filter rating should be selected according to the process and contamination-control requirements.
4. Connection and Installation
The breather filter should match the vessel connection and available installation space. Sanitary Tri-Clamp configurations are commonly used where hygienic installation and removal are required.
5. Process Conditions
Temperature, humidity, cleaning method, sterilization conditions and the required level of contamination control can affect cartridge selection and breather configuration. Final sizing should be confirmed against the actual process conditions and filter manufacturer’s data.
For a broader selection guide, see How to Choose a Sanitary Tank Breather Filter and How to Choose the Right Tank Breather Filter Size.
Which Configuration Should You Use?
There is no universal single-cartridge or multi-cartridge choice for every tank. The appropriate configuration depends on the vessel, required air exchange, cartridge characteristics, installation constraints and process conditions.
A single-cartridge tank breather filter can be a practical configuration when one cartridge provides sufficient capacity and a compact installation is preferred. A multi-cartridge tank breather filter can be considered when additional filtration area or air-handling capacity is needed.
FAQ
Is a multi-cartridge tank breather filter better than a single-cartridge filter?
Not automatically. A multi-cartridge configuration provides more total filtration area and may support greater air-handling capacity, but the correct choice depends on the vessel and actual process requirements.
What is the difference between a tank breather filter and a liquid filter housing?
A tank breather filter is used for filtered air intake and exhaust on a vessel. A liquid filter housing is designed to hold filter cartridges for liquid filtration. Their applications and flow paths are different.
Does a multi-cartridge breather use multiple cartridges at the same time?
The cartridges are arranged within the same breather housing to provide the available filtration area for the vessel’s air-exchange path. Exact airflow and cartridge loading depend on the housing and cartridge design.
What sizes are available from Haoqintech?
Haoqintech currently offers single-cartridge tank breather configurations in 2.5-inch, 5-inch and 10-inch sizes, plus a three-cartridge multi-cartridge configuration available in 5-inch, 10-inch and 20-inch configurations.
Conclusion
Single-cartridge and multi-cartridge tank breather filters belong to the same sanitary tank breathing product family. The difference is mainly the cartridge configuration and the resulting available filtration area and potential air-handling capacity.
When selecting a tank breather filter, consider the vessel’s air-exchange requirements, cartridge type and rating, connection, installation space and process conditions rather than choosing by cartridge count alone.
