304 SS Sanitary Single-Cartridge Tank Breather Filter – 5″

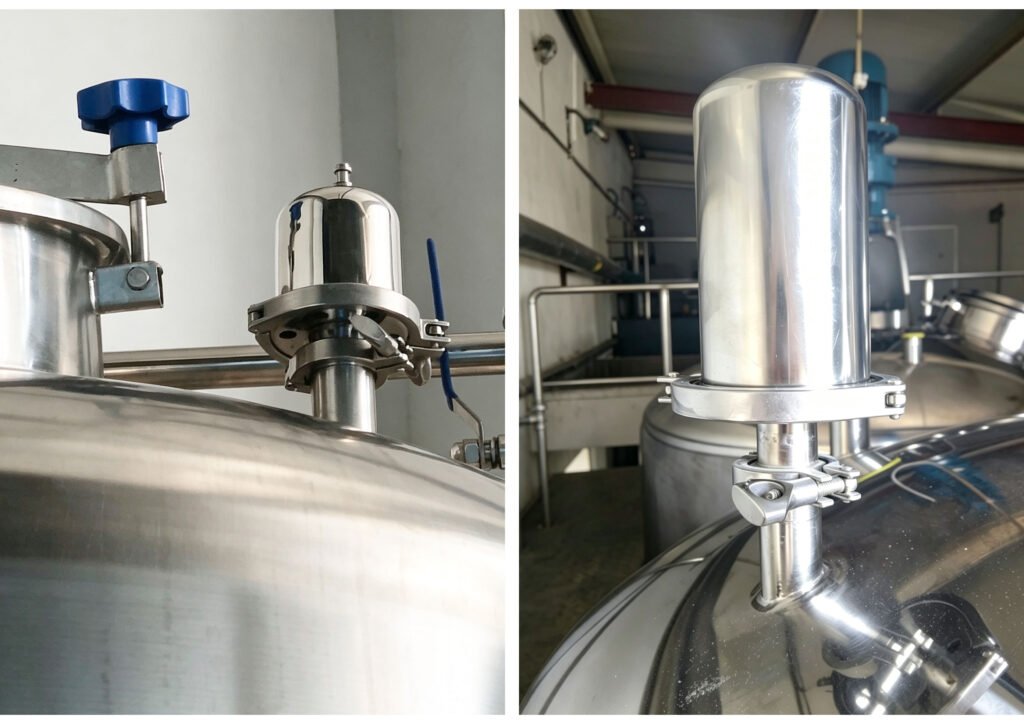

This 304 stainless steel sanitary single-cartridge tank breather filter is designed for filtered air intake and exhaust on fermenters, storage tanks, and other hygienic process vessels. It allows the vessel to exchange air during filling, emptying, fermentation, and temperature changes while helping reduce the risk of airborne contamination entering the tank.

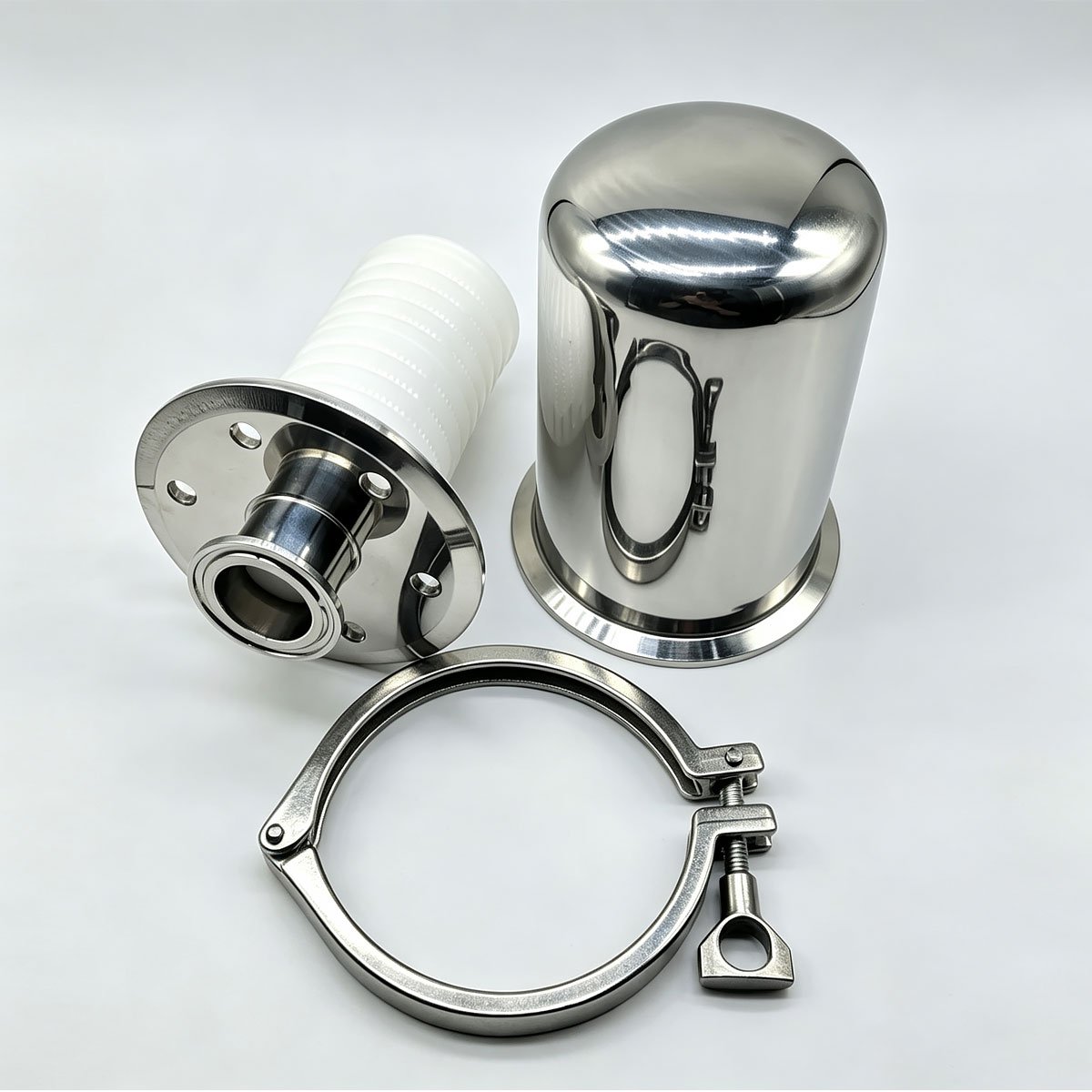

The housing features a sanitary Tri-Clamp connection and polished stainless steel construction. The replaceable filter cartridge is mounted on an internal perforated base structure that provides the air-flow path through the filter element. The same housing path supports both incoming and outgoing air, making the unit suitable for hygienic tank breathing and sterile air exchange.
Key Features
- 304 stainless steel construction
- Sanitary Tri-Clamp connection
- Single-cartridge configuration
- 5-inch cartridge length
- Replaceable PP or PTFE filter cartridge options
- Filtered air intake and exhaust

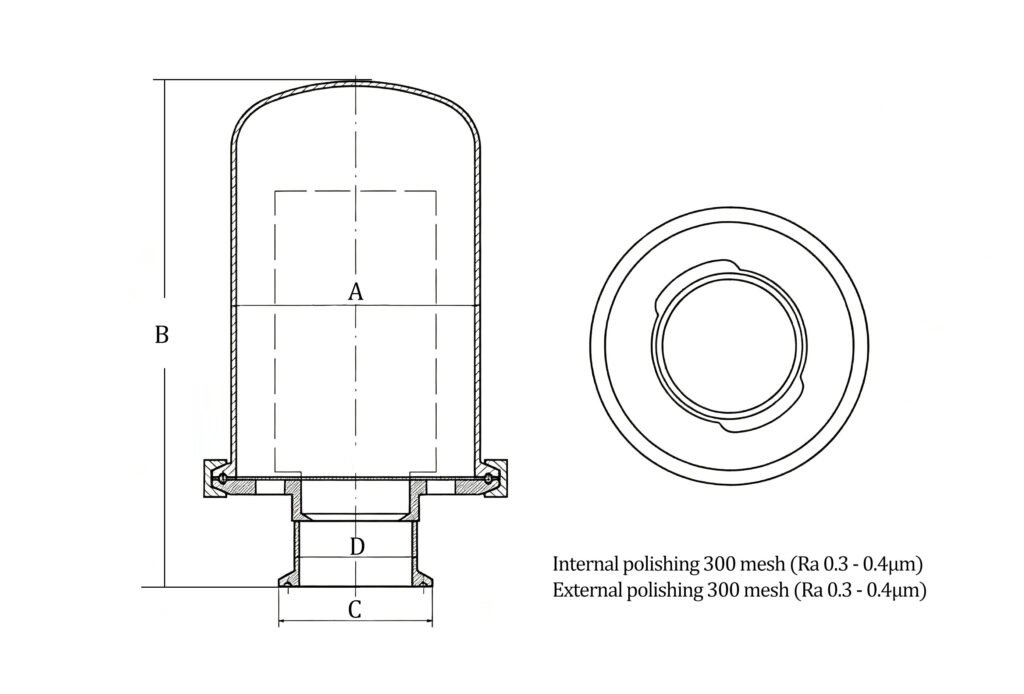

- Internal and external polished finish
- Designed for tank breathing and sterile air exchange

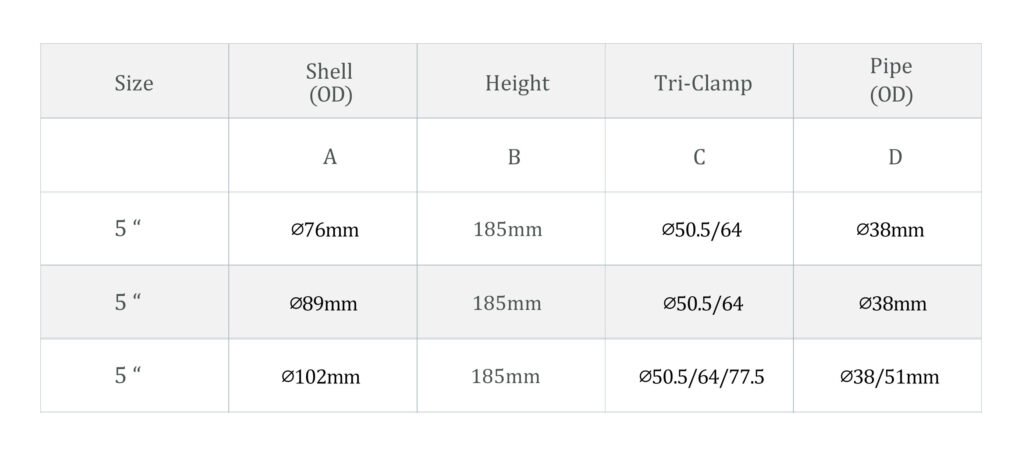

Available Configurations
- Ø76 mm shell + Tri-Clamp Ø50.5 / 64 + Pipe Ø38 mm
- Ø89 mm shell + Tri-Clamp Ø50.5 / 64 + Pipe Ø38 mm
- Ø102 mm shell + Tri-Clamp Ø50.5 / 64 / 77.5 + Pipe Ø38 / 51 mm
Typical Applications
Suitable for hygienic tank breathing and sterile air exchange on fermenters, bioreactors, storage tanks, mixing and process vessels, and sanitary processing systems in food, beverage, dairy, pharmaceutical, biotechnology, and fermentation applications.
The actual cartridge material, filtration rating, connection configuration, operating pressure, flow capacity, and other requirements should be selected according to the process conditions.

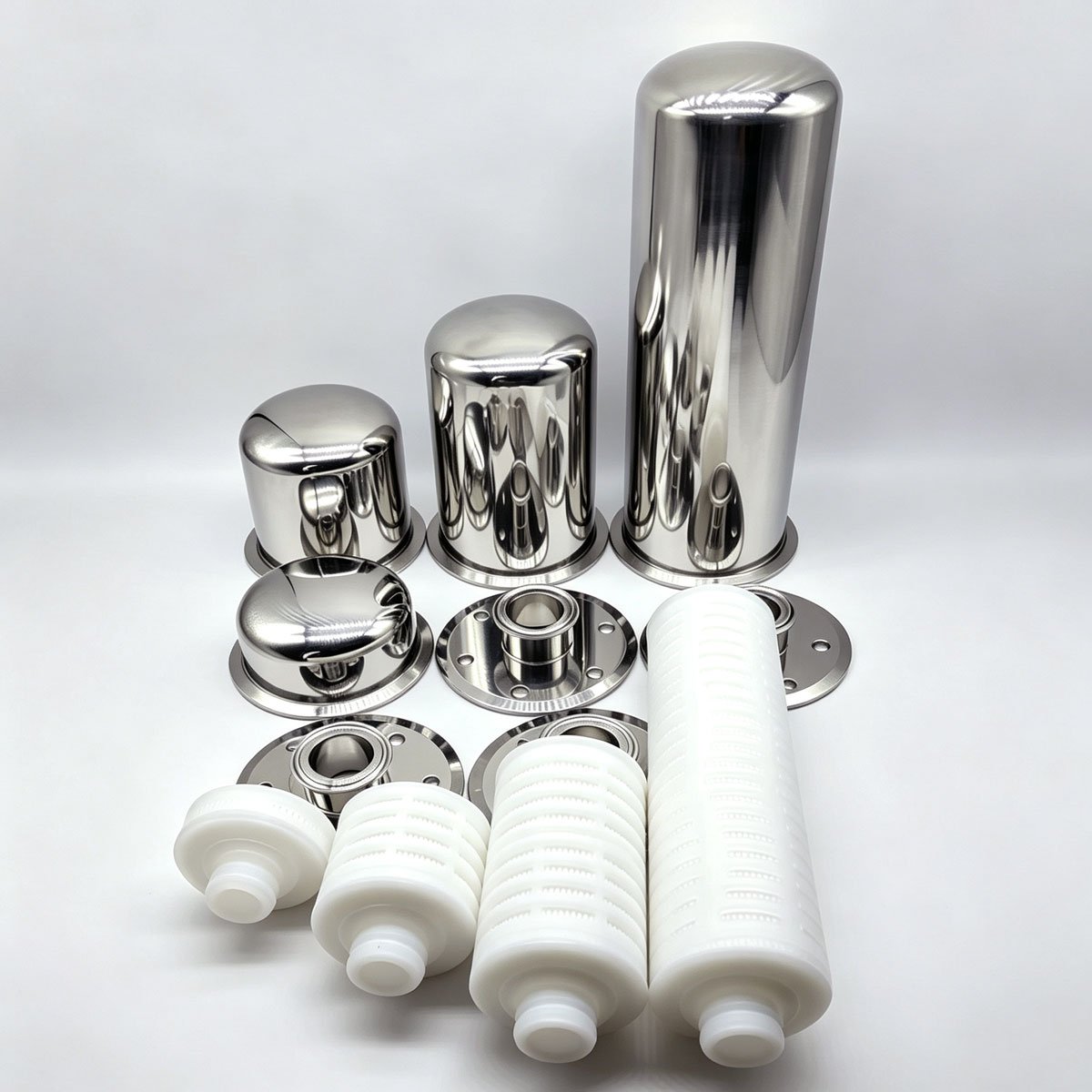

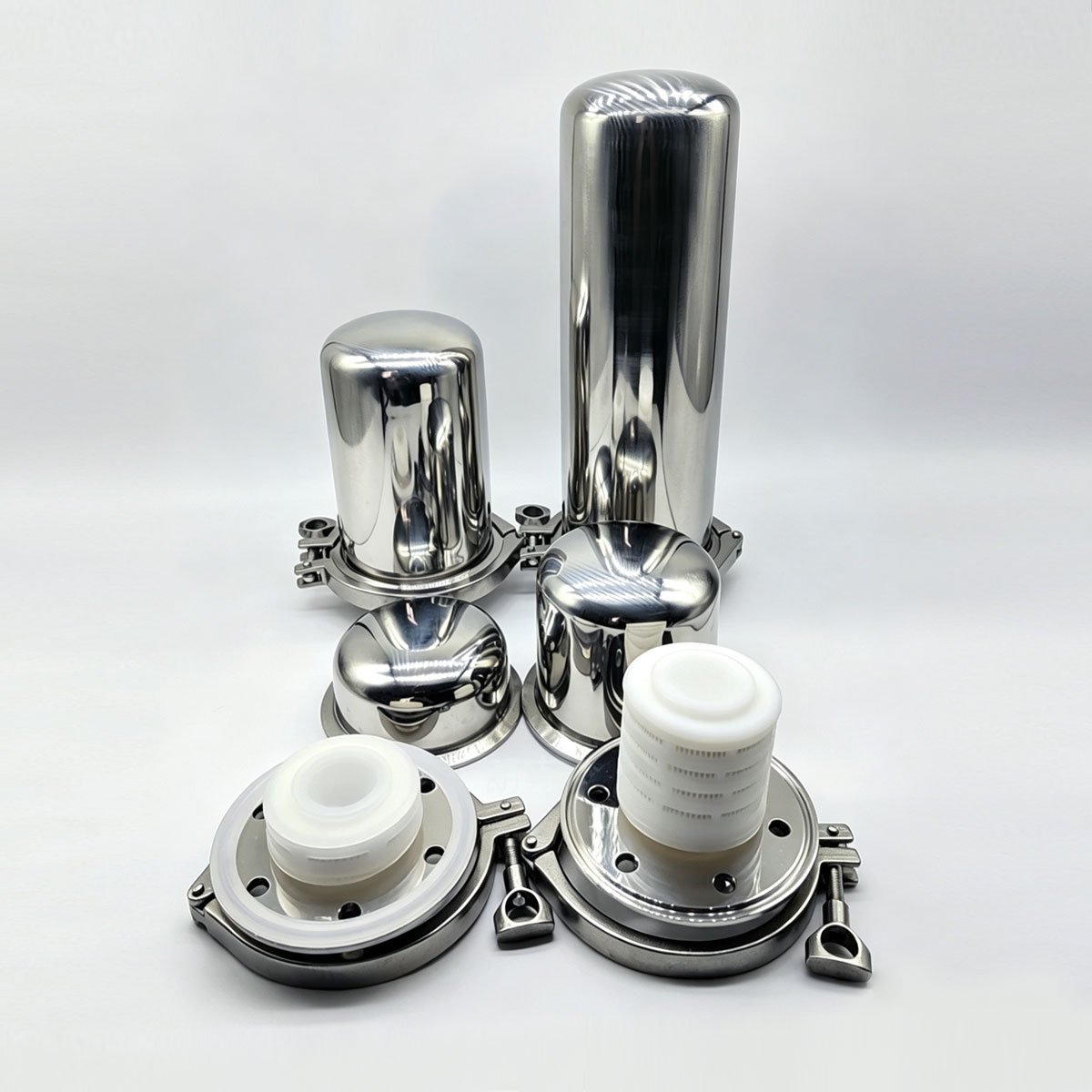

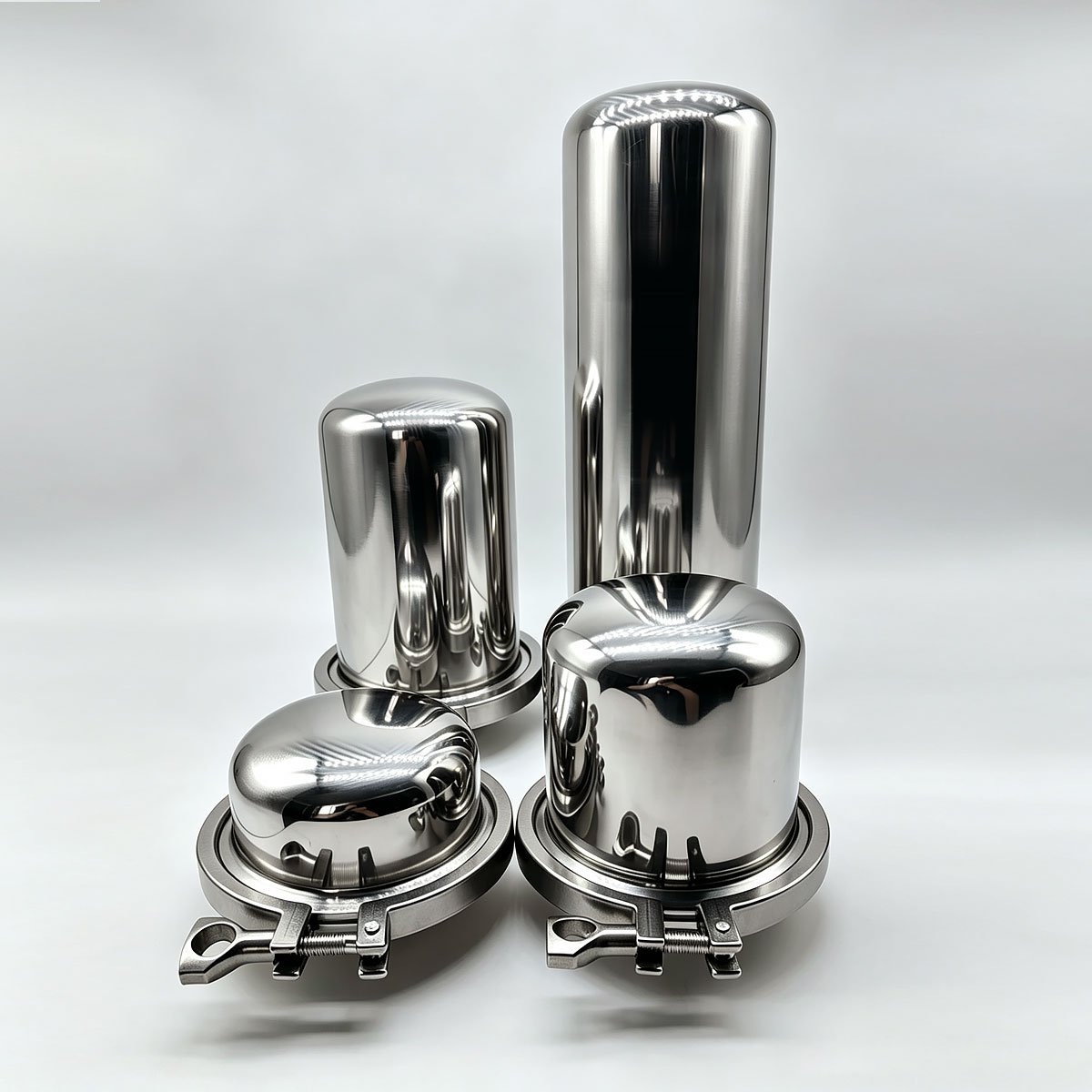

Tank Breather Filter Family
This product is the single-cartridge 5-inch configuration in Haoqintech’s sanitary tank breather filter family. Other single-cartridge sizes include 2.5-inch and 10-inch configurations. A multi-cartridge configuration with three filter cartridges is also available.
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 2.5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 10″
- 304 SS Sanitary Multi-Cartridge Tank Breather Filter
