Description

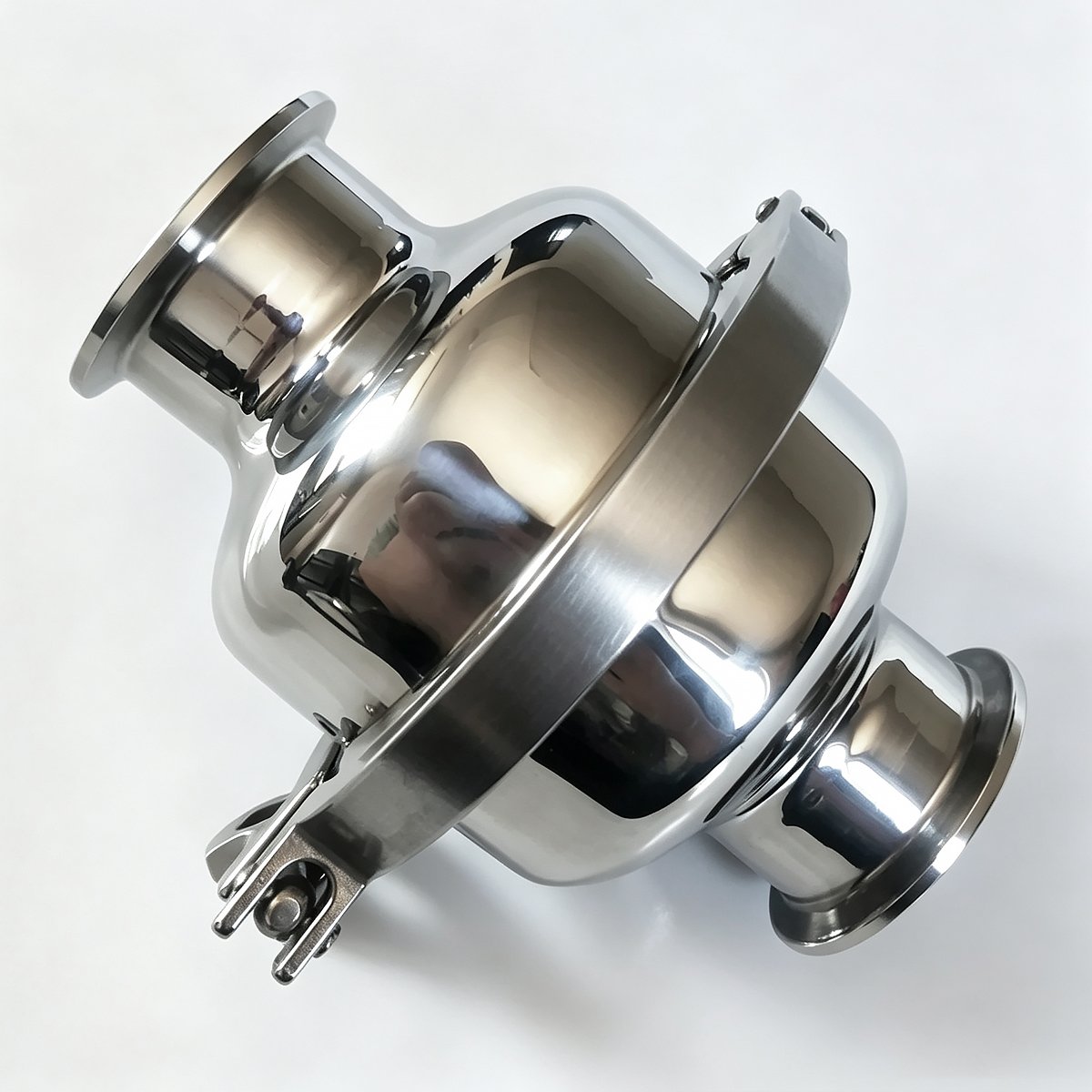

This sanitary 304 stainless steel quick-clamp flame arrester (also known as a flame arrester breather valve) combines flame arresting and pressure balancing functions in one compact unit. It is designed for hygienic applications and features a Tri-Clamp (quick clamp) connection for easy installation and cleaning.
Key Features
- Material: 304 stainless steel (316L available upon request)
- Connection: Tri-Clamp / Quick Clamp
- Dual function: Flame arresting + pressure breathing
- Hygienic design with polished internal and external surfaces

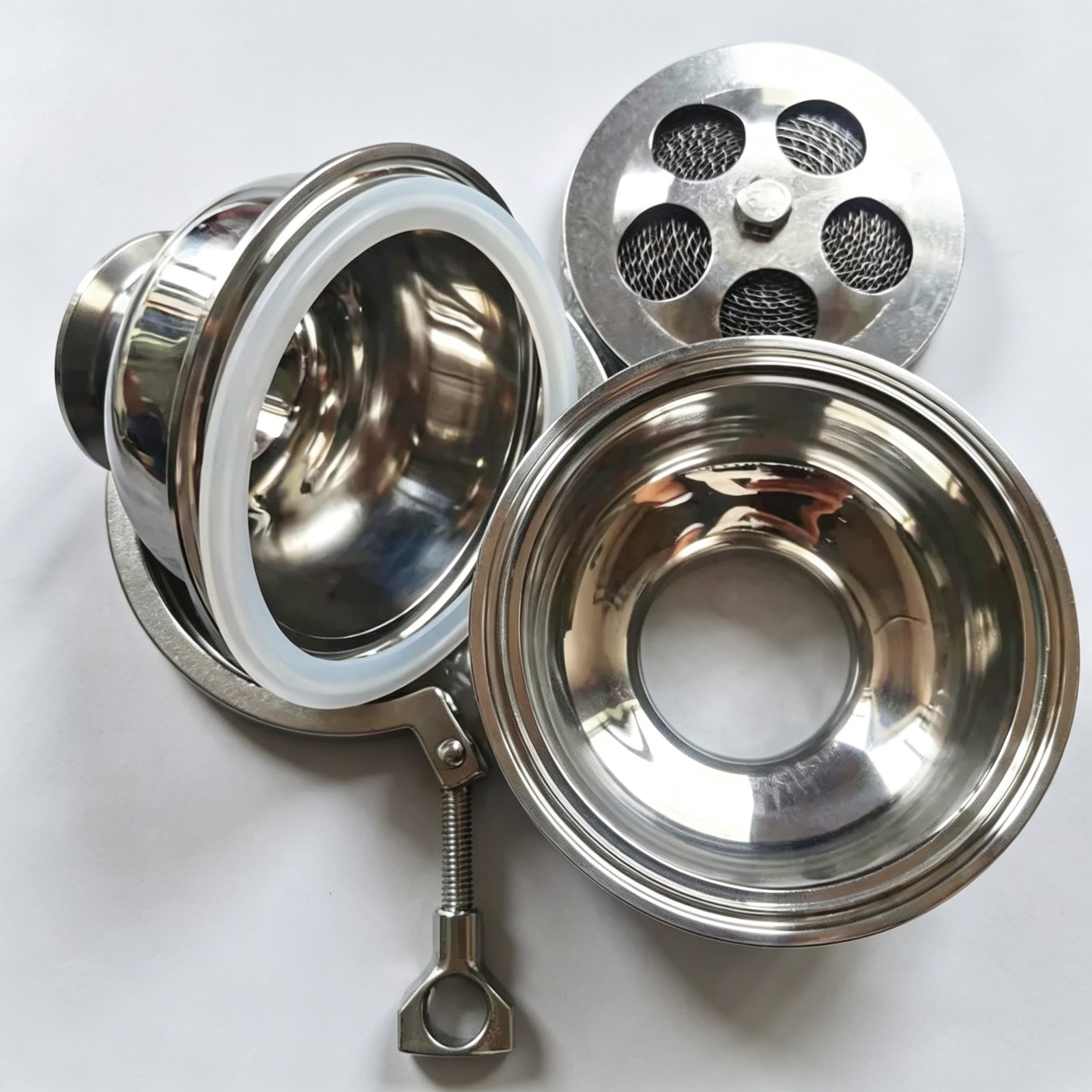

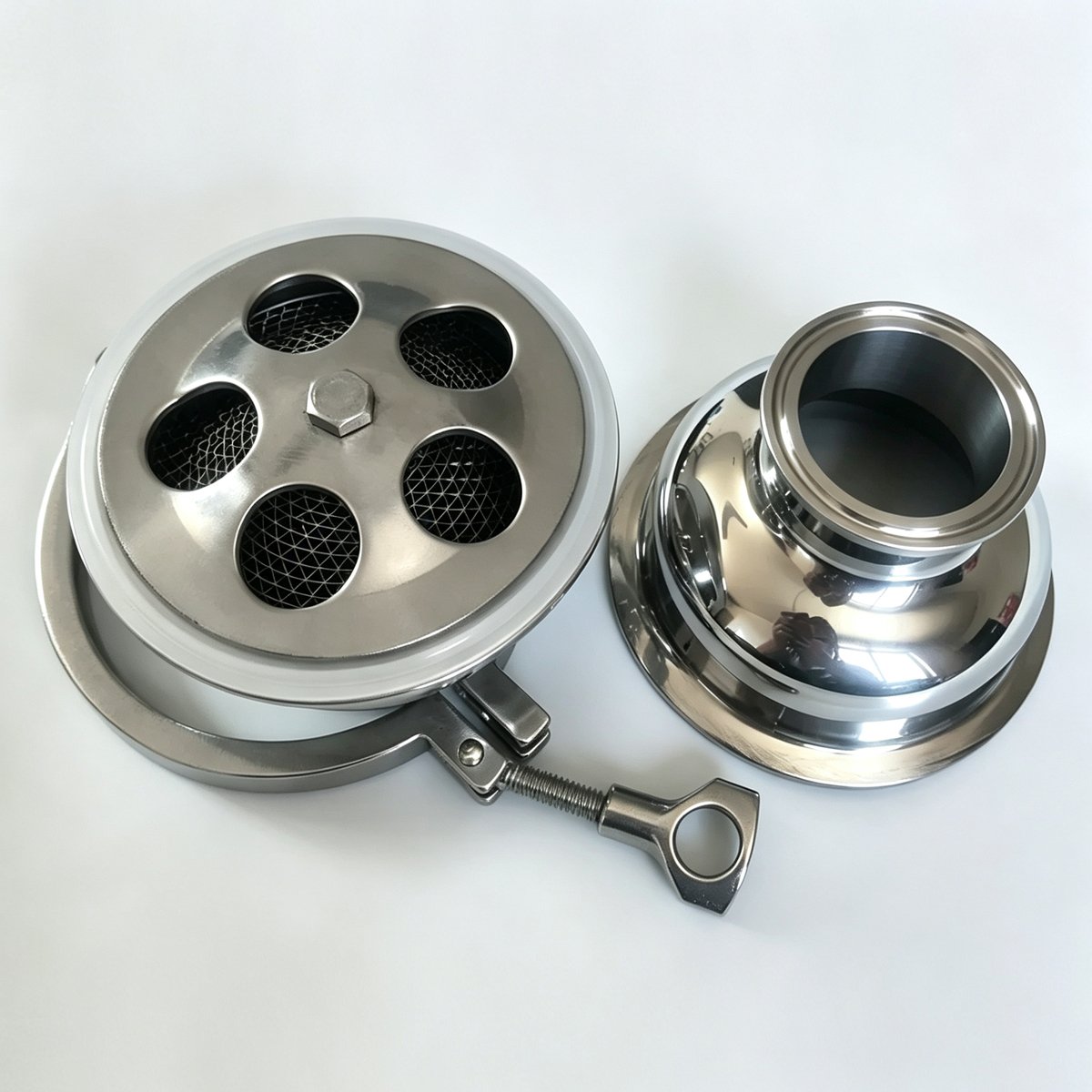

- Easy to disassemble and clean
- Available sizes: φ32, φ38, φ51, φ63
Technical Specifications
| Item | Specification |
|---|---|
| Material | 304 Stainless Steel (Optional 316L) |
| Connection Type | Tri-Clamp / Quick Clamp |
| Available Sizes | φ32 / φ38 / φ51 / φ63 |
| Surface Finish | Internal & External Polished |
| Working Temperature | -20°C to +150°C (approximate) |
| Working Pressure | Atmospheric / Low Positive Pressure |
| Function | Flame Arresting + Pressure Balancing |
| Suitable Media | Air, Inert Gas, Steam, etc. |
Applications
Ideal for use on storage tanks, reactors, fermenters, and pipeline systems in the following industries:
- Food & Beverage
- Dairy
- Pharmaceutical
- Biotechnology
- Fine Chemicals
- Brewing & Distilling
Installation & Maintenance Notes
- Ensure the sealing gasket is properly installed and in good condition

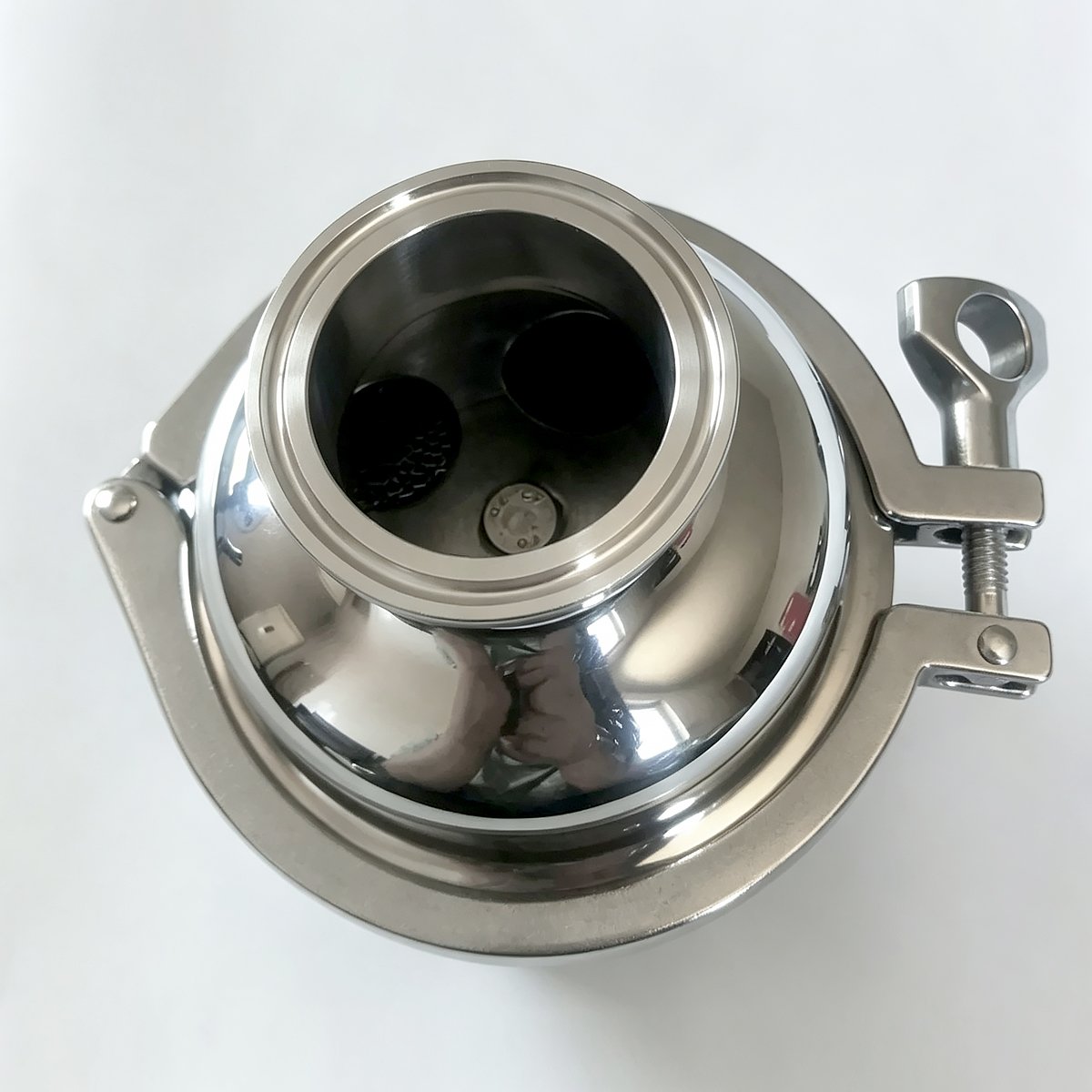

- Periodically inspect the flame arrester element for clogging or damage
- Clean regularly according to hygienic standards
- Custom sizes and 316L material available upon request
