Description
304 Sanitary Tri-Clamp Tank Breather Filter Housing
The 304 Sanitary Tri-Clamp Tank Breather Filter Housing is a single-cartridge vent filtration housing designed for air exchange on sanitary tanks and process vessels.
During filling, emptying, mixing or temperature changes, tanks may need to exchange air to help maintain a balanced internal pressure.
This sanitary breather housing provides a hygienic connection point for a replaceable filter cartridge, helping filter air entering or leaving the tank while reducing the risk of dust and other airborne contaminants entering the vessel.
Made from 304 stainless steel, the housing features a Tri-Clamp / quick-clamp connection for convenient installation and maintenance. It is available in 5-inch and 10-inch housing lengths with 215, 222 and 226 cartridge interface options.
Key Features
- 304 stainless steel construction
- Tri-Clamp / quick-clamp connection

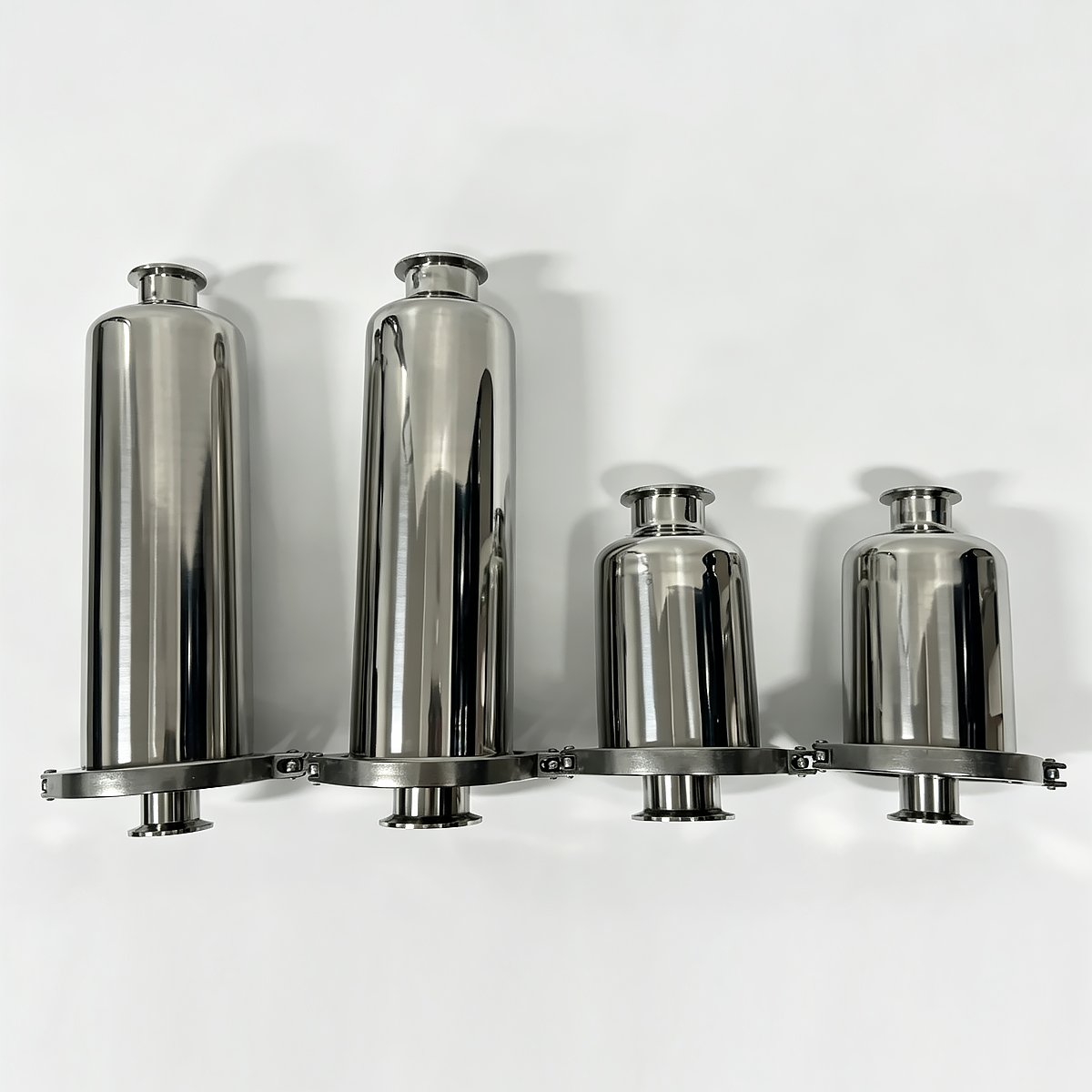

- 5-inch and 10-inch housing lengths
- Ø102 mm housing diameter
- 215, 222 and 226 cartridge interface options
- Designed for tank breathing and vent air filtration
- Replaceable filter cartridge design
- Suitable for sanitary tanks and hygienic process vessels
- Factory-direct supply and configuration support
How Does a Tank Breather Filter Work?
A tank needs to exchange air when the liquid level changes or when temperature and operating conditions change. Without appropriate venting, pressure inside the tank may increase or decrease.
A tank breather filter allows air to pass through a filter cartridge during this air exchange process. The cartridge helps reduce the entry of dust and other airborne contaminants while allowing the tank to breathe.
The filter housing is installed at the tank vent connection, and the replaceable cartridge can be selected according to the required filtration performance and installation requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Sanitary Tank Breather Filter Housing |
| Material | 304 Stainless Steel |
| Connection Type | Tri-Clamp / Quick Clamp |
| Housing Length | 5 inch / 10 inch |
| Housing Diameter | Ø102 mm |
| Cartridge Interface | 215 / 222 / 226 |
| Application | Tank Venting / Air Filtration |
| Filter Replacement | Replaceable Cartridge |
Configuration note: Cartridge compatibility, clamp dimensions, gasket material, filtration rating and other configuration details should be confirmed according to the selected cartridge and installation requirements.
Applications
- Stainless steel storage tanks
- Sanitary process tanks
- Food and beverage processing
- Dairy processing
- Pharmaceutical processing
- Fermentation tanks
- Liquid culture systems
- Mixing and blending tanks
- Hygienic process vessels
- Other sanitary tank venting applications
Why Choose This Tank Breather Filter Housing?
304 Stainless Steel Construction
The housing is manufactured from 304 stainless steel for sanitary processing applications and general corrosion resistance.
Tri-Clamp Connection
The Tri-Clamp / quick-clamp design provides a convenient connection method for sanitary tank installations and simplifies maintenance.
Multiple Cartridge Interfaces
215, 222 and 226 cartridge interface options provide flexibility when selecting a compatible filter cartridge.
Two Housing Lengths
5-inch and 10-inch housing options are available for different tank venting and filtration requirements.
Easy Maintenance
The replaceable cartridge design allows the filter element to be changed when required without replacing the complete housing.
Factory-Direct Supply
Haoqintech supplies sanitary stainless steel components directly from the manufacturer and can assist with configuration and technical requirements.
Ordering Information
When requesting a quotation, please provide the following information when available:
- Required housing length: 5 inch or 10 inch
- Cartridge interface: 215, 222 or 226
- Tank connection requirements
- Filter cartridge specification
- Required filtration rating
- Gasket requirements
- Quantity
- Tank or installation information
If you are not sure which configuration you need, please send us your tank connection size, filter cartridge model or installation requirements. Our team can help confirm the appropriate configuration.
Related Tank Breather Filter
If you need a threaded connection instead of a Tri-Clamp connection, see our 304 Sanitary Threaded Tank Breather Filter Housing with 226 Cartridge.
If you need a different tank breather configuration, please contact Haoqintech for technical support and configuration confirmation.
FAQ
What is a Tri-Clamp tank breather filter?
A Tri-Clamp tank breather filter is a vent filtration assembly installed on a sanitary tank or process vessel. It allows air exchange during tank operation while the filter cartridge helps reduce the entry of airborne contaminants.
What material is the housing made from?
The standard housing is made from 304 stainless steel.
What housing sizes are available?
The standard housing lengths are 5 inch and 10 inch. The housing diameter is approximately Ø102 mm.
What cartridge interfaces are available?
The housing is available with 215, 222 and 226 cartridge interface options, subject to the selected configuration.
Is this a threaded tank breather?
No. This model uses a Tri-Clamp / quick-clamp connection. If you require a threaded connection, please refer to our threaded tank breather filter housing.
Does the product include the filter cartridge?
The supplied configuration should be confirmed when ordering. Please contact us with your required cartridge specification and installation requirements.
Can the configuration be customized?
Configuration requirements can be discussed according to the tank connection, cartridge model and installation conditions. Please contact Haoqintech for confirmation before ordering.
