Description
304 SS Sanitary Multi-Cartridge Tank Breather Filter
This 304 stainless steel sanitary multi-cartridge tank breather filter is designed for filtered air intake and exhaust on fermenters, storage tanks, and other hygienic process vessels. It helps maintain clean air exchange while reducing the risk of airborne contamination entering the tank.

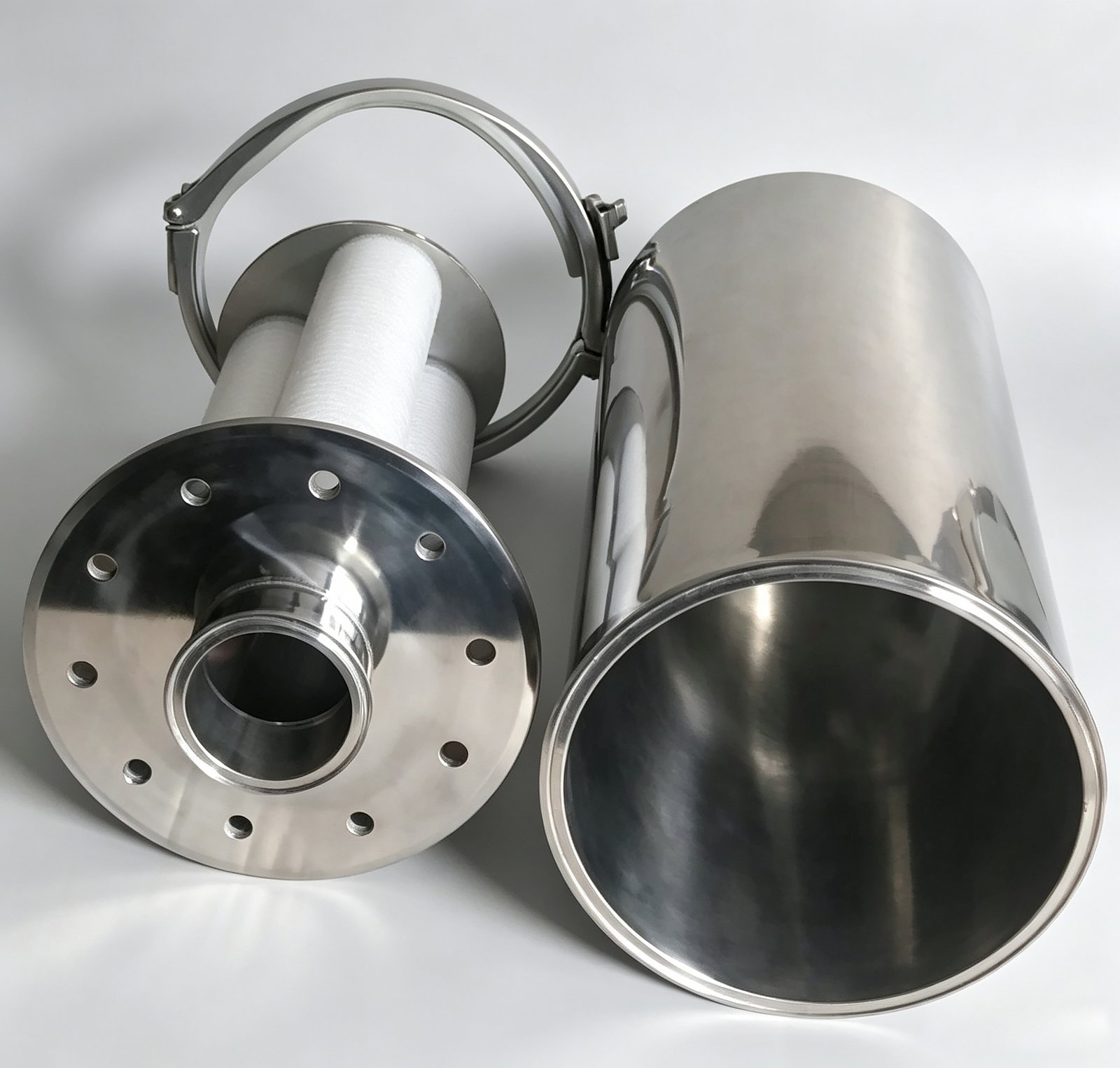

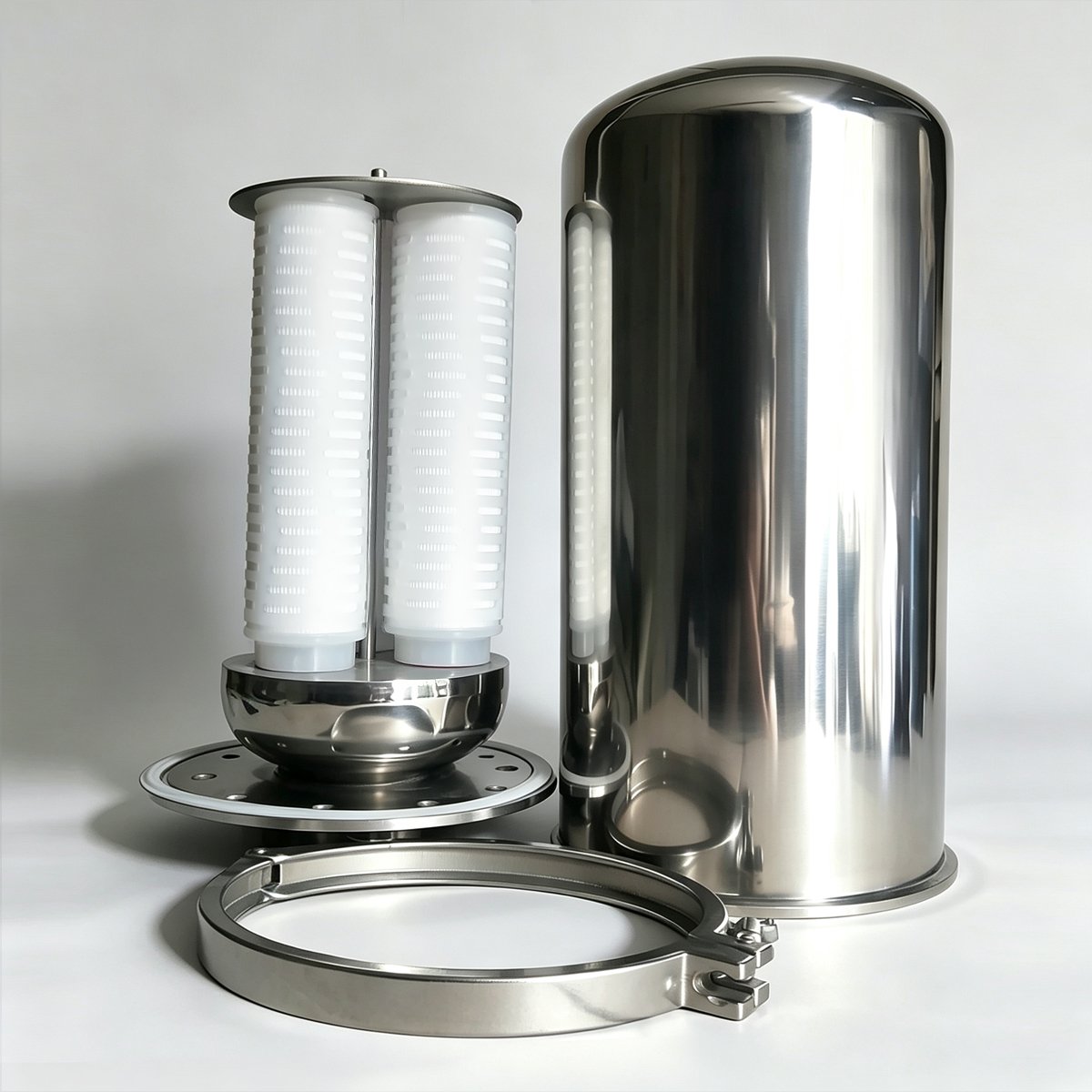

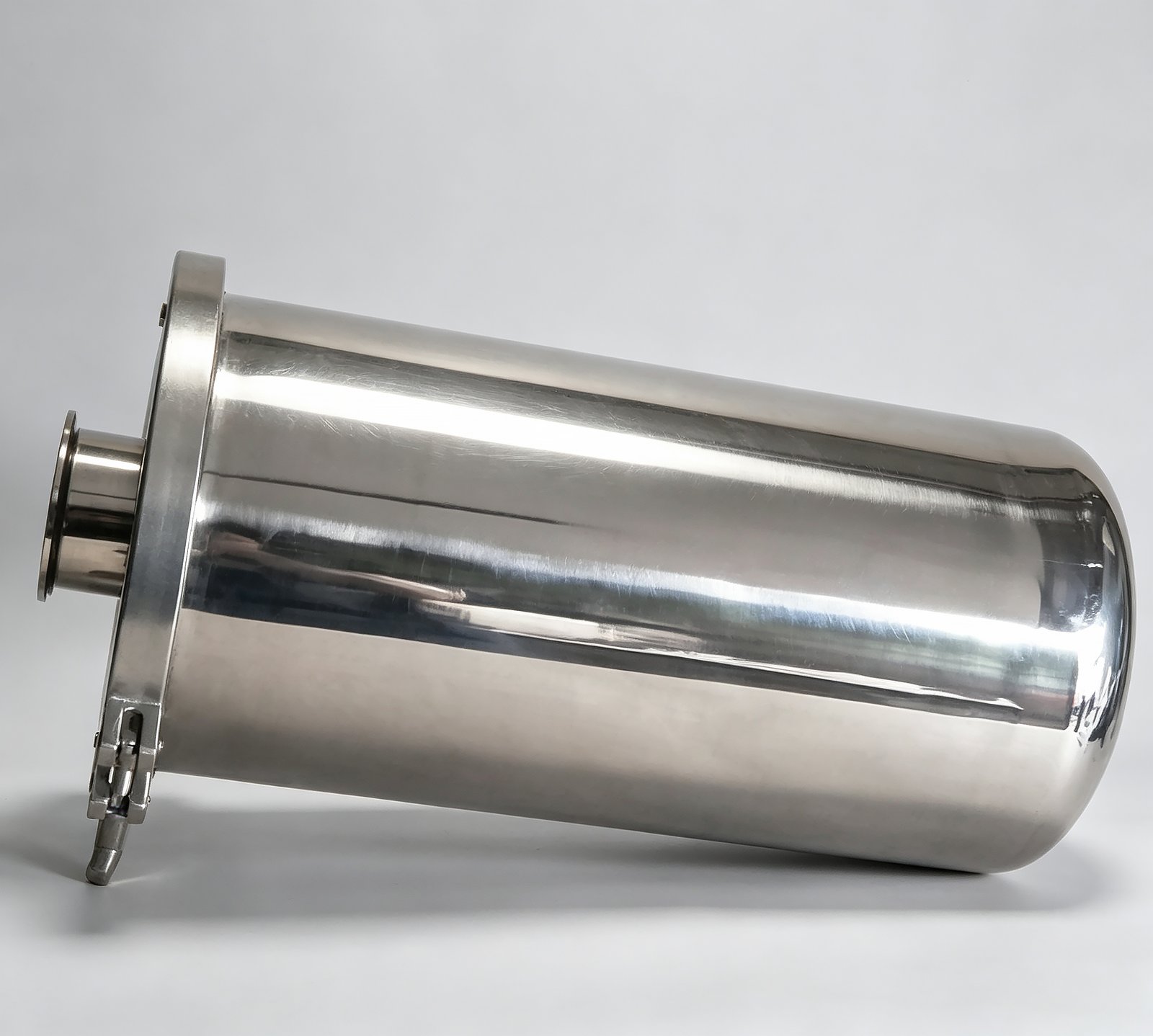

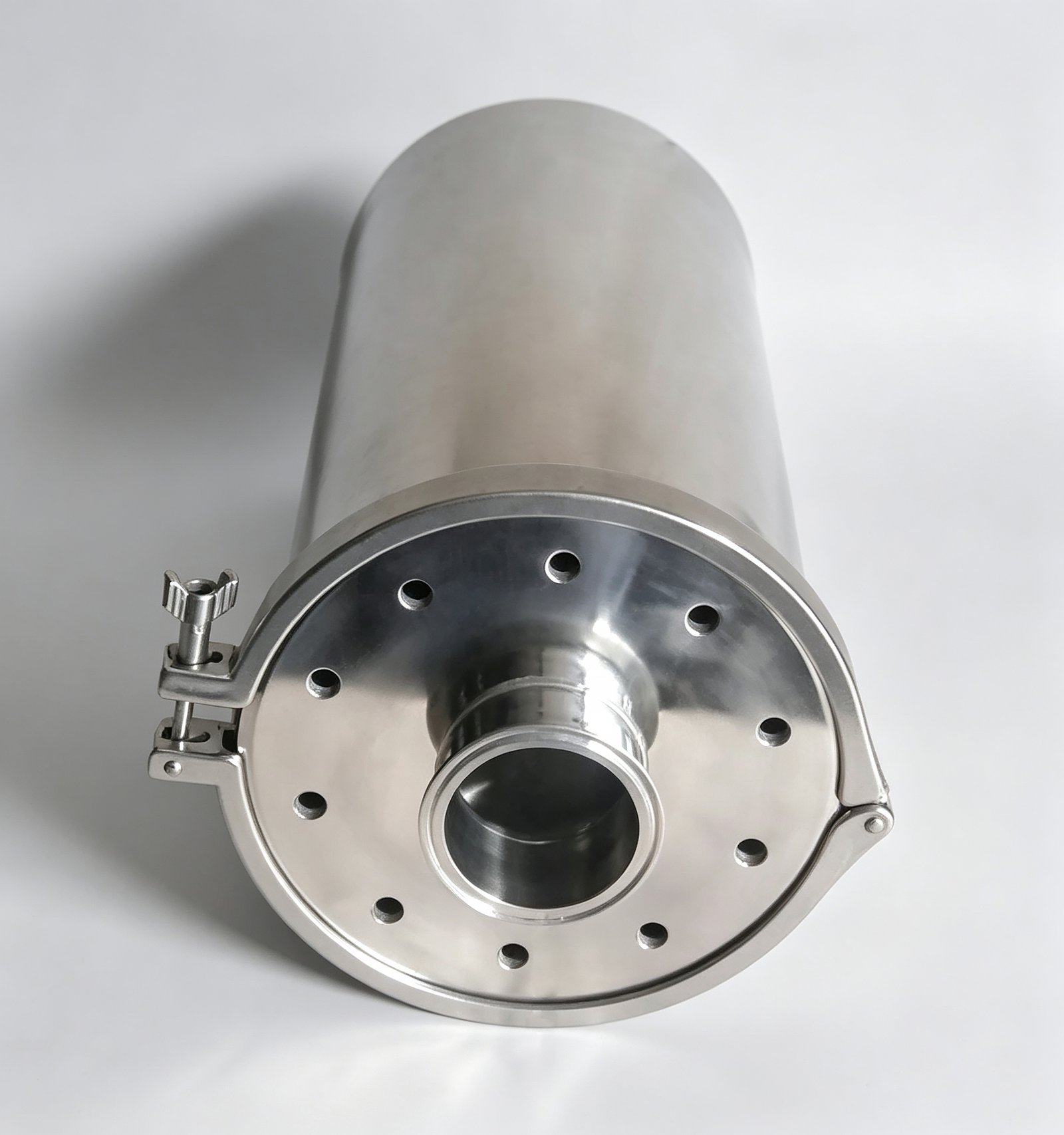

The housing uses a sanitary stainless steel construction with a removable cover and clamp-style closure. Inside the housing, multiple filter cartridges are mounted on a perforated base structure that provides the air-flow path through the cartridges. This multi-cartridge configuration is intended for applications requiring a larger filtration area or higher air-exchange capacity than a single-cartridge breather.
During tank filling, emptying, fermentation, or temperature changes, air can enter or leave the vessel through the filter cartridges. The cartridges help filter the exchanged air and support hygienic tank breathing.
Key Features
- 304 stainless steel construction
- Multi-cartridge tank breather design
- Three-cartridge configuration
- PP filter cartridges
- Removable housing cover
- Clamp-style closure
- Available in 5″, 10″, and 20″ configurations
- φ76 mm housing diameter
- Filtered air intake and exhaust
- Designed for hygienic tank breathing and sterile air filtration
- Convenient cartridge replacement and maintenance
Available Sizes
| Size | Housing Diameter |
|---|---|
| 5″ | φ76 mm |
| 10″ | φ76 mm |
| 20″ | φ76 mm |
Applications
This sanitary multi-cartridge tank breather filter is designed for filtered air exchange on:
- Fermenters and fermentation tanks
- Bioreactors and liquid culture systems
- Storage tanks
- Mixing and process vessels
- Food and beverage processing equipment
- Dairy processing systems
- Pharmaceutical and biotech process vessels
The actual cartridge material, filtration rating, connection configuration, operating pressure, flow capacity, and other requirements should be selected according to the process conditions.
For pharmaceutical, fermentation, or other validated hygienic applications, please confirm the required material grade, surface finish, gasket material, cartridge specification, pressure, temperature, and cleaning or sterilization conditions before selection.
Single-Cartridge and Multi-Cartridge Tank Breather Filters
This product is the multi-cartridge configuration in Haoqintech’s sanitary tank breather filter family. For single-cartridge configurations, see the 2.5-inch, 5-inch, and 10-inch tank breather filters:
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 2.5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 10″
Related Tank Breather Guide
How to Choose a Sanitary Tank Breather Filter →
