Description

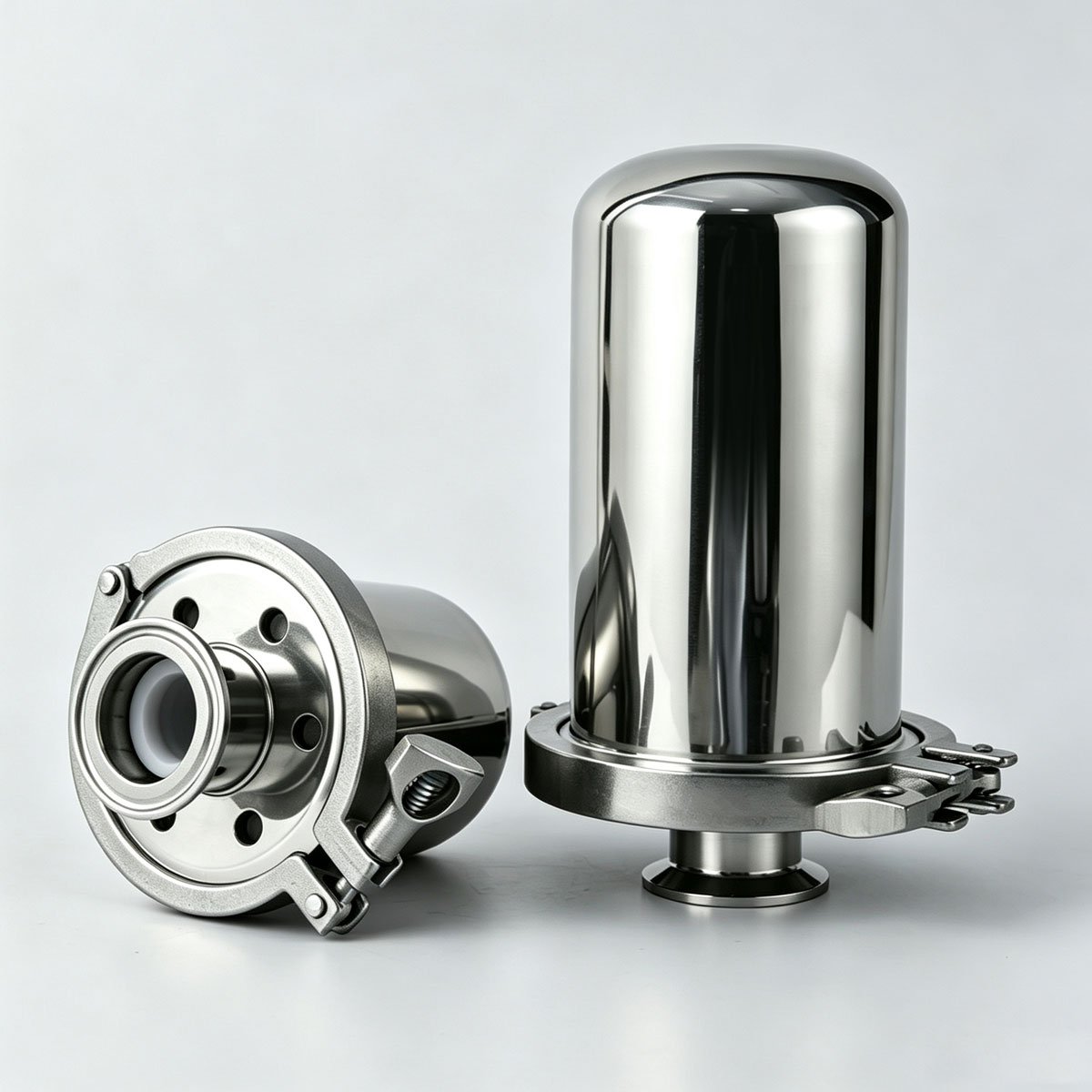

304 SS Sanitary Single-Cartridge Tank Breather Filter
This 304 stainless steel sanitary single-cartridge tank breather filter is designed for filtered air intake and exhaust on fermenters, storage tanks, and other hygienic process vessels. It allows the vessel to exchange air during filling, emptying, fermentation, and temperature changes while helping reduce the risk of airborne contamination entering the tank.

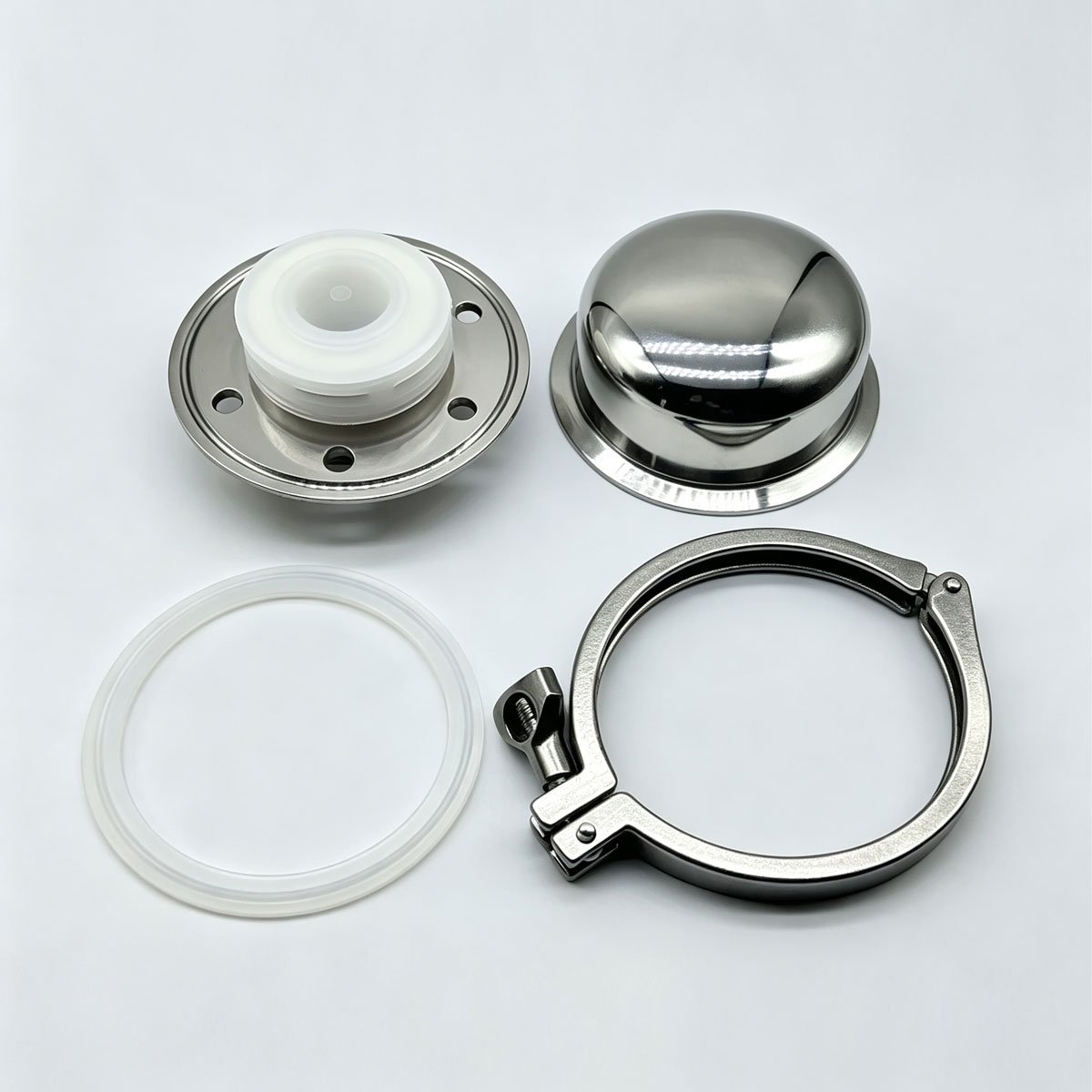

The housing uses a sanitary Tri-Clamp connection and polished stainless steel construction. The replaceable filter cartridge is mounted on an internal perforated base structure that provides the air-flow path through the filter element. The same housing path supports both incoming and outgoing air, making the unit suitable for hygienic tank breathing and sterile air exchange.
Key Features
- Material: 304 stainless steel
- Connection: Sanitary Tri-Clamp
- Configuration: Single-cartridge
- Cartridge Length: 2.5″
- Height: 135 mm
- Shell Diameter: Ø76 mm / Ø89 mm / Ø102 mm
- Surface Finish: Internal and external polished finish, Ra 0.3–0.4 μm
- Function: Filtered tank breathing and sterile air exchange
- Application: Fermenters, bioreactors, storage tanks, and sanitary process vessels

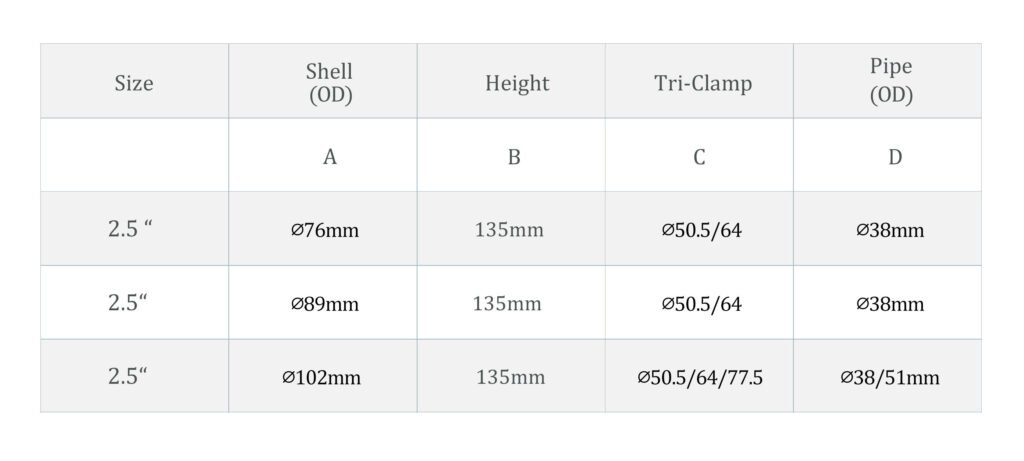

Available Configurations
- Ø76 mm shell + Tri-Clamp Ø50.5 / 64 + Pipe Ø38 mm
- Ø89 mm shell + Tri-Clamp Ø50.5 / 64 + Pipe Ø38 mm
- Ø102 mm shell + Tri-Clamp Ø50.5 / 64 / 77.5 + Pipe Ø38 / 51 mm
Typical Applications
Suitable for hygienic tank breathing and sterile air exchange in food, beverage, dairy, pharmaceutical, biotechnology, fermentation, and other sanitary processing systems.
Custom sizes and configurations are available upon request.
Note: Dimensions are based on the technical drawing. Please confirm the required connection size and configuration before ordering.
Tank Breather Filter Family
This product is the single-cartridge 2.5-inch configuration in Haoqintech’s sanitary tank breather filter family. Other single-cartridge sizes include 5-inch and 10-inch configurations. A multi-cartridge configuration with three filter cartridges is also available for applications requiring a larger filtration area or higher air-exchange capacity.
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 5″
- 304 SS Sanitary Single-Cartridge Tank Breather Filter | 10″
- 304 SS Sanitary Multi-Cartridge Tank Breather Filter
