Introduction
A liquid mushroom spawn fermentation system is more than a group of stainless steel fermentation tanks. To operate as a practical process system, the tanks need to work together with sanitary process piping, valves, fittings, filtration equipment, sterile-air components, and cleaning systems.
Each component has a specific function, but the performance of the complete system depends on how these components are selected, connected, and integrated.
Haoqintech has practical experience in fermentation, liquid culture, and hygienic processing systems. In this article, we look at how common sanitary components work together in a liquid mushroom spawn fermentation system, using real project experience as a reference.
For more information about our fermentation and liquid culture systems, see our dedicated system page.
1. Fermentation Tanks: The Core of the System
Fermentation tanks are the main process vessels in a liquid mushroom spawn production system. Depending on production requirements, a system may include multiple stainless steel fermentation tanks rather than a single vessel.
A typical fermentation vessel may include connections for sanitary process piping, air supply and filtration, liquid transfer, sampling, drainage, monitoring, and cleaning.
The tank itself is therefore only the starting point. The connections around the tank determine how it communicates with the rest of the process.
2. Sanitary Process Piping Connects the Equipment
Once multiple fermentation tanks are integrated into one system, sanitary process piping becomes essential. The piping provides controlled pathways for transferring liquid culture, supplying air, draining vessels, and connecting different parts of the process.
Common sanitary components include Tri-Clamp fittings, weld ferrules, elbows, tees, reducers, sanitary valves, gaskets, clamps, and filters.
Tri-Clamp connections are commonly used where equipment needs to be assembled, disassembled, inspected, or cleaned. For example, a fermentation tank may be connected to a transfer line through a sanitary valve and a series of Tri-Clamp fittings.
For a closer look at these connections, see our guide to sanitary connection selection.
3. Sanitary Valves Control the Process Path
Piping provides the pathway, while valves determine how the process moves through that pathway.
In a multi-tank fermentation system, sanitary valves can be used to isolate vessels, control liquid transfer, drain tanks, manage process lines, and support cleaning operations.
A simplified transfer route might look like:
Fermentation Tank → Sanitary Valve → Process Piping → Filter → Receiving Tank
The exact configuration depends on the process design. As the number of tanks and process lines increases, valve arrangement becomes increasingly important for isolation, maintenance, drainage, and process control.
4. Filtration Has More Than One Role
Filtration in a liquid mushroom spawn fermentation system should not be treated as a single function. Different filtration equipment can serve different parts of the process.
Liquid Filtration
Liquid filtration may be used where the process requires removal of unwanted particles from a liquid stream. Depending on the application, cartridge filter housings, sanitary strainers, or other filtration equipment may be integrated into the liquid process line.
The appropriate filter depends on the liquid, required flow rate, filtration level, pressure conditions, connection type, and process requirements. For more information, see our guide to sanitary filtration and inline strainer selection.
Air and Sterile-Air Filtration
Air filtration serves a different purpose. During fermentation and other controlled processes, air entering or leaving a vessel may need to pass through an appropriate filtration system to reduce contamination risk.
This is why tank breather filters and sterile-air filtration components belong to the overall system, even though they are not liquid filters.
5. Tank Breathing and Sterile Air
A fermentation vessel is not simply a closed container. Changes in liquid level, temperature, pressure, and gas flow can affect the pressure inside the tank.
Sanitary tank breather filters can provide filtered air exchange for tanks and process vessels, while sterile-air filtration may be used where the process requires more controlled air handling.
This is also why a tank breather filter should not automatically be treated as the same product as a conventional liquid filter housing. The application is different, even when both products use replaceable filter cartridges.
For more information, see our guide on how to choose a sanitary tank breather filter.
6. CIP and SIP Are Part of the System Design
Cleaning and sterilization should be considered during the design of a hygienic fermentation system, rather than added as an afterthought.
CIP — Cleaning in Place
CIP allows equipment to be cleaned without completely dismantling the process system. A typical CIP arrangement may involve cleaning solution, sanitary piping, valves, spray devices, tank connections, pumps, and drainage lines.
Tank cleaning components such as rotary spray balls can distribute cleaning fluid across the internal surfaces of a vessel. The effectiveness of CIP depends on more than the spray device itself; flow conditions, coverage, piping configuration, drainage, and equipment geometry also matter.
See our Tank Cleaning & CIP solutions for related sanitary components.
SIP — Sterilization in Place
Where the process requires sterilization, SIP may also form part of the system. Steam or another validated sterilization method may be introduced through dedicated process connections.
This means valves, fittings, filters, tanks, piping, and other components need to be considered together when designing the cleaning and sterilization strategy.
7. How the Components Work Together
A simplified liquid mushroom spawn fermentation process can be viewed as a connected system rather than a collection of individual products.
Preparation → Sterilization → Fermentation → Transfer → Next Stage → Cleaning
Around these stages, different sanitary components perform different functions:
- Fermentation tanks provide the main process vessels.
- Sanitary piping connects the vessels and equipment.
- Valves control flow and isolate different sections.
- Filters support liquid or air filtration requirements.
- Tank breather and sterile-air components support controlled gas exchange.
- CIP components help clean the equipment.
- SIP-related connections may support sterilization where required.
The important point is that these components should not be selected in isolation. Changing one component can affect other parts of the process. For example, changing a pipe size may affect flow requirements; changing a filter may affect pressure drop and flow capacity; and changing a valve configuration may affect drainage or cleaning.
8. A Real Haoqintech Project in Guangxi, China

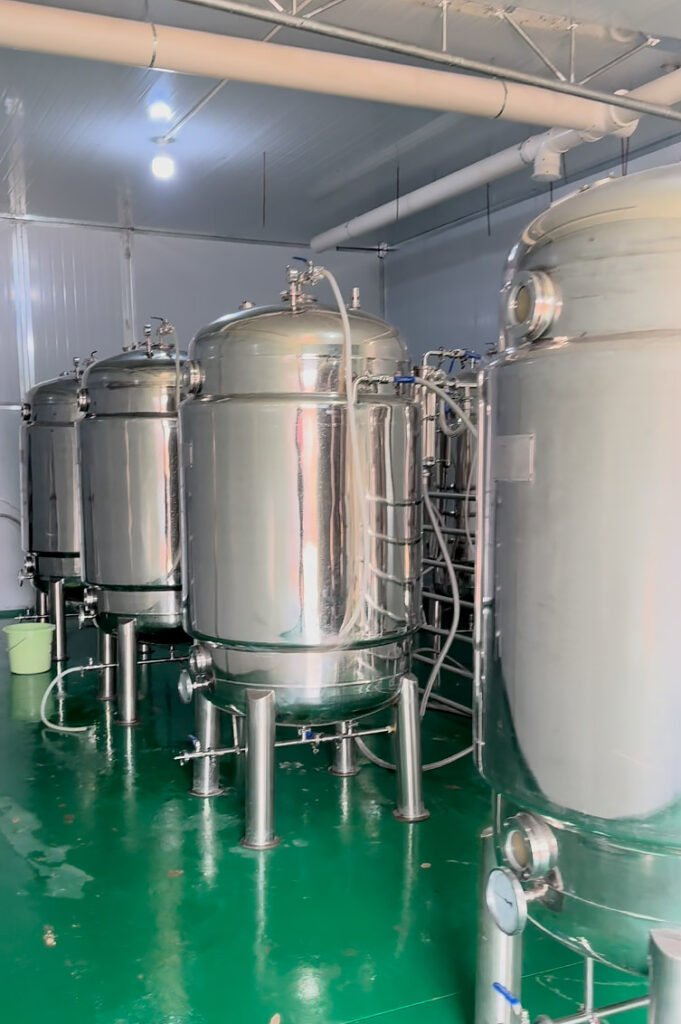

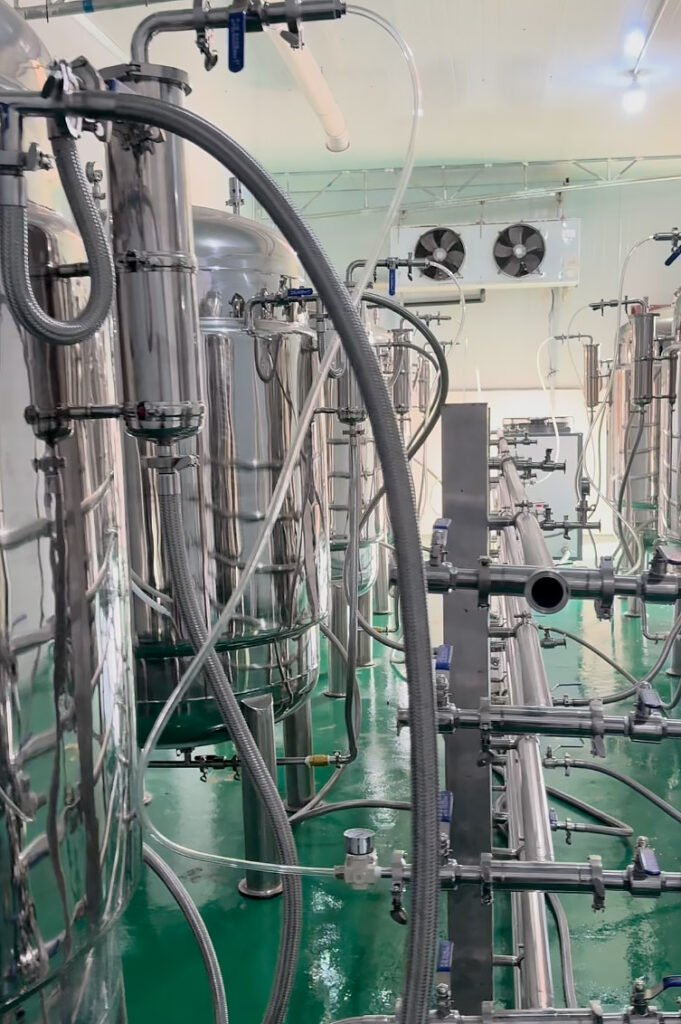

Haoqintech has practical project experience in liquid mushroom spawn fermentation systems. One project in Guangxi, China, included multiple stainless steel fermentation tanks integrated with sanitary process piping and supporting components. See our Haoqintech Project Experience for more real applications.
The project included equipment and components such as:
- Stainless steel fermentation tanks
- Sanitary process piping
- Sanitary valves and fittings
- Filtration equipment
- Pressure monitoring components
- Supporting process equipment
Rather than treating each component as an isolated product, the equipment was integrated into a working process system.
For more details, see our real liquid mushroom spawn fermentation project in Guangxi, China.
9. From Individual Components to an Integrated System
For a sanitary processing project, a fitting is not just a fitting, and a filter is not just a filter. Their value comes from how they perform within the complete process.
A suitable sanitary component should match the required material, connection standard, size, pressure and temperature conditions, flow requirements, cleaning method, and process application.
When these factors are considered together, individual components can become part of a reliable and maintainable process system.
This system-level view is particularly important for fermentation and liquid culture applications, where hygienic design, contamination control, cleaning, and process integration all need to be considered.
10. Another Haoqintech Fermentation Project
Haoqintech’s project experience also includes a liquid edible mushroom spawn fermentation system in Armenia, where fermentation equipment and sanitary components were integrated into a complete production workflow.
See our liquid edible mushroom spawn fermentation system project in Armenia for another example of this type of application.
Conclusion
A liquid mushroom spawn fermentation system is a combination of process equipment and sanitary components working together.
Fermentation tanks provide the main vessels. Sanitary piping connects the process. Valves control flow. Filters support liquid and air filtration. Tank breather and sterile-air components support controlled gas exchange. CIP and SIP-related equipment help maintain hygienic operating conditions.
The important point is that these components need to be considered as part of the complete process rather than selected in isolation.
For Haoqintech, this system-level understanding comes from practical experience with liquid culture, fermentation, sanitary processing equipment, and real project applications.
From individual sanitary components to integrated fermentation systems, the objective is to provide equipment and engineering solutions that fit the actual process.
Looking for sanitary components or equipment for a fermentation, liquid culture, or hygienic processing project? Contact Haoqintech to discuss your application and requirements.
