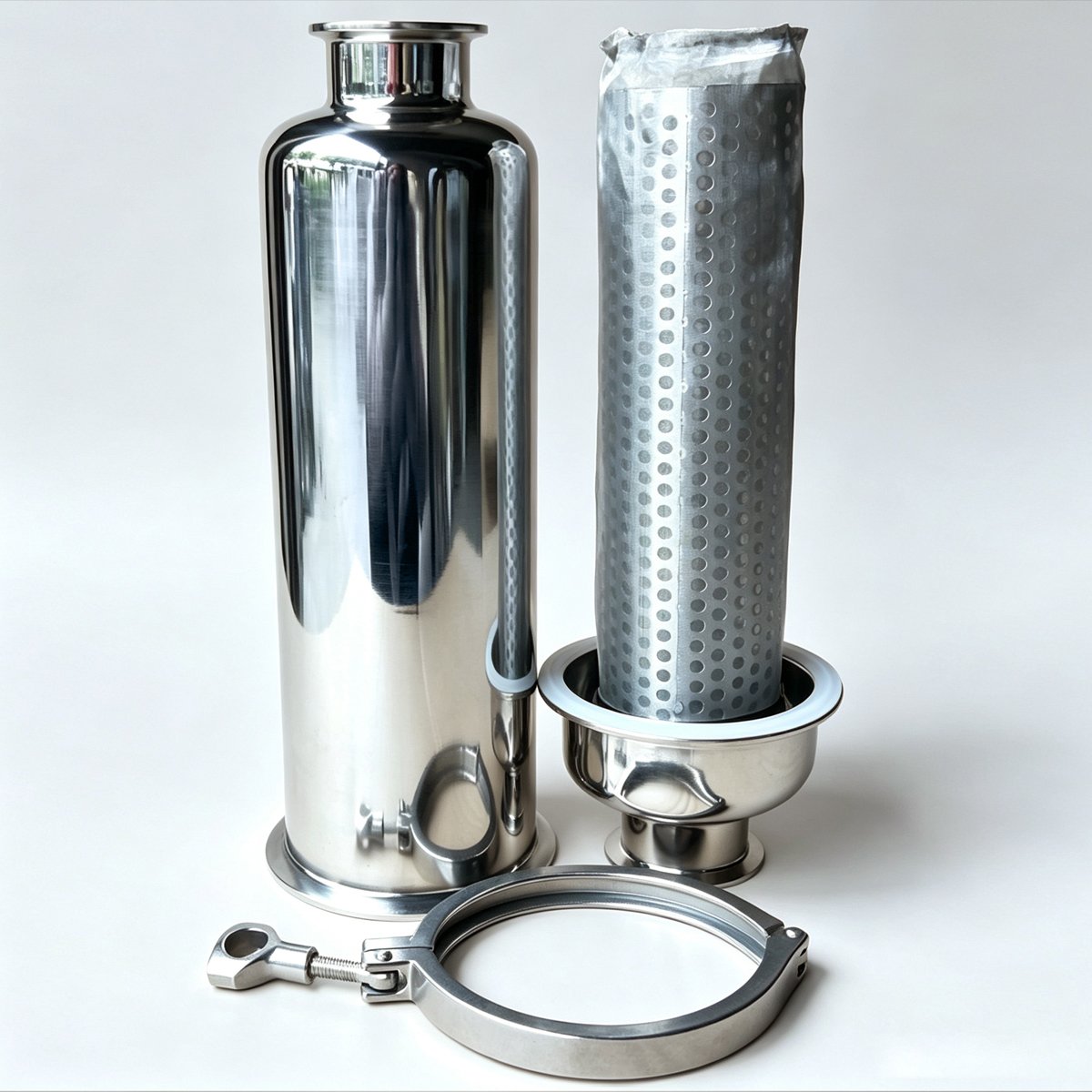

304 Stainless Steel Sanitary Grade Tri-Clamp Inline Filter
Professional-grade straight-through sanitary filter designed for food, beverage, dairy, pharmaceutical, cosmetic, and high-purity process applications.
Constructed entirely from 304 stainless steel with a polished finish, this clamp-style (tri-clamp / quick-connect) filter offers excellent corrosion resistance, easy disassembly, and thorough cleanability. The straight-through design minimizes pressure drop while providing reliable particle retention.
Key Features
- Material: 304 stainless steel (housing, perforated support tube, and clamps)
- Connection: Sanitary tri-clamp (quick-install) – available in 38 mm and 51 mm ferrule sizes

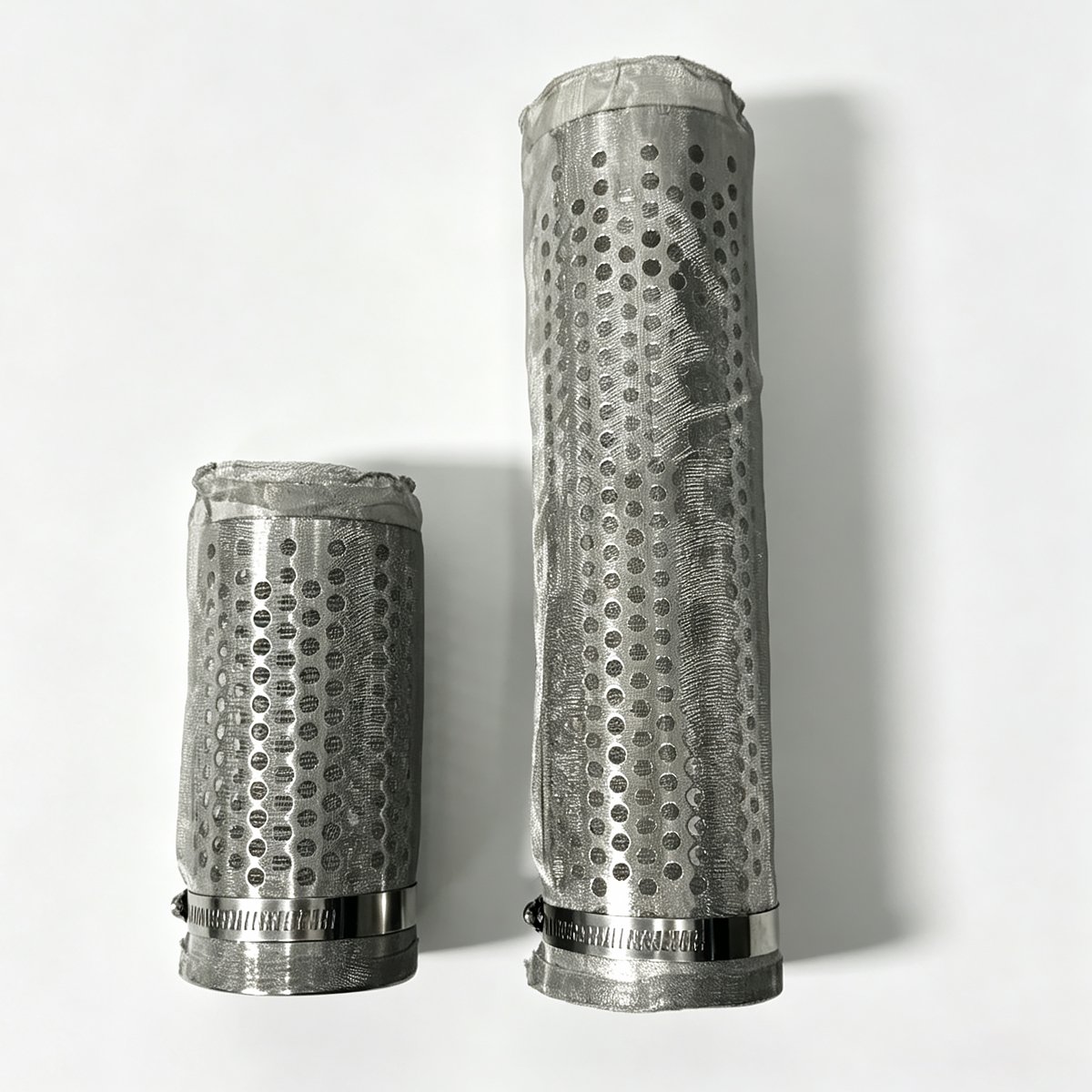

- Length options: 5-inch and 10-inch body

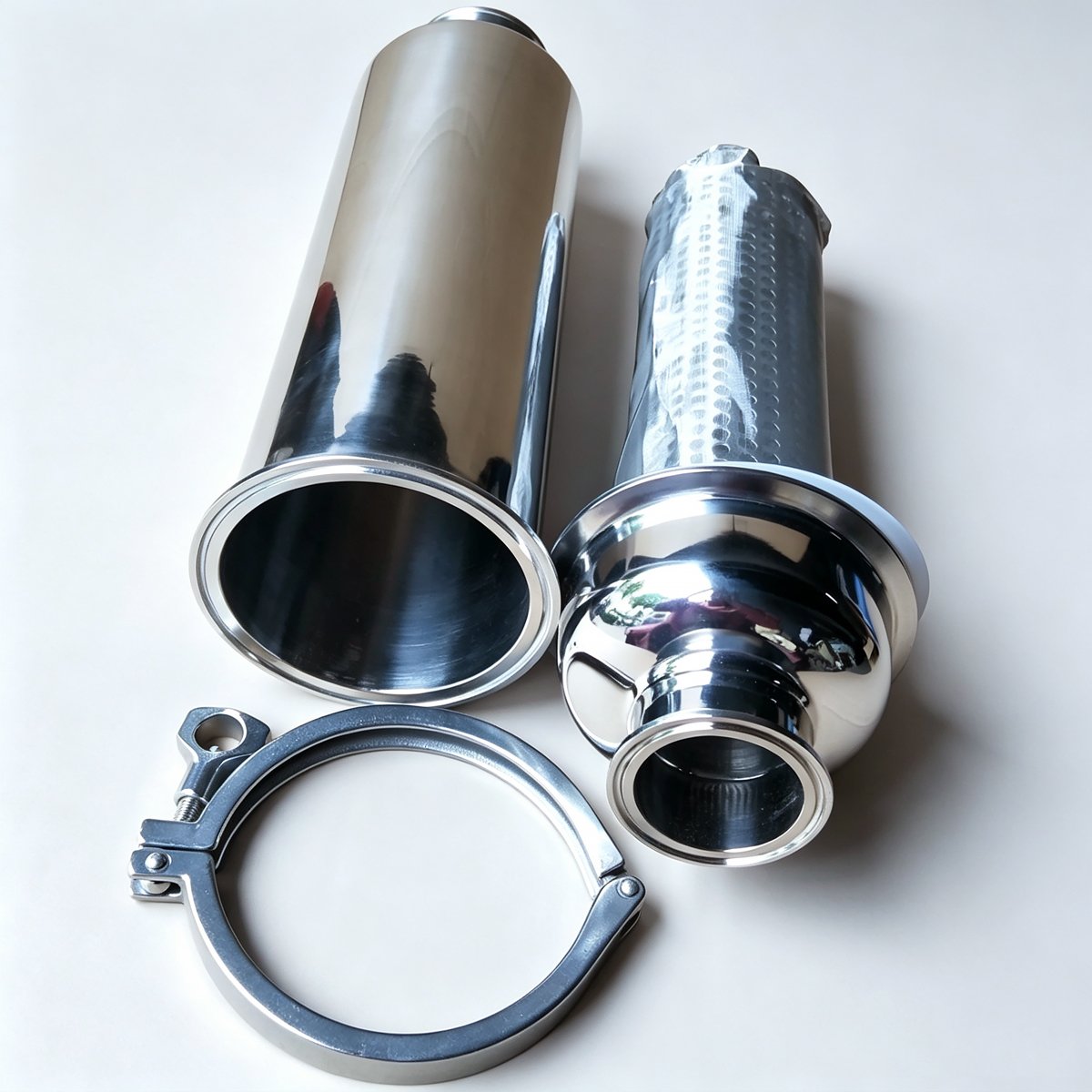

- Filter element: Perforated support cylinder + replaceable stainless steel mesh screen
- Available mesh ratings: 10, 20, 30, 40, 50, 60, 80, 100, 120, 150, 200, 250, 300, 400, 500 mesh
- Includes: Housing, perforated support tube, mesh screen, silicone gasket, and stainless steel clamp
- Easy to open, clean, and reassemble – ideal for CIP/SIP environments
- Suitable for liquids, light oils, and process fluids
Typical Applications
- Beverage and dairy processing
- Brewing and fermentation
- Food ingredient filtration
- Pharmaceutical and cosmetic lines
- Laboratory and pilot-scale systems
- General industrial liquid straining

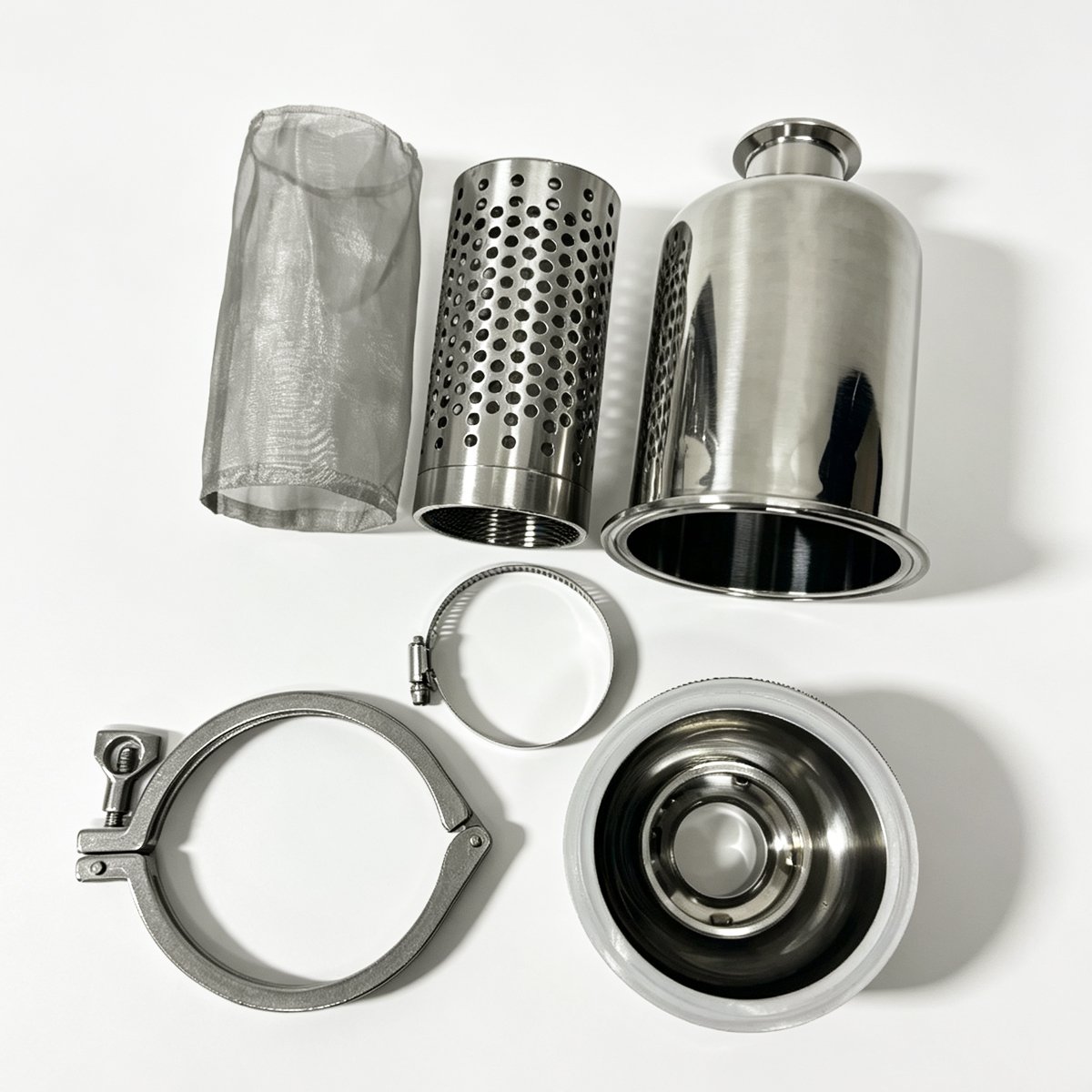

What’s Included
- 1 × 304 SS filter housing
- 1 × Perforated support cylinder
- 1 × Stainless steel mesh screen (selected mesh size)
- 1 × Silicone sealing gasket
- 1 × Stainless steel tri-clamp
