304 Stainless Steel Sanitary Y-Strainer Tri-Clamp Quick Connect

Description

SS304 Sanitary Tri-Clamp Y-Strainer – Food-Grade Clamp Type

High-quality stainless steel sanitary Y-strainer designed for hygienic process systems. Made from SS304 stainless steel with a removable mesh screen, this Tri-Clamp Y-strainer helps remove unwanted particles from process lines while maintaining efficient flow.

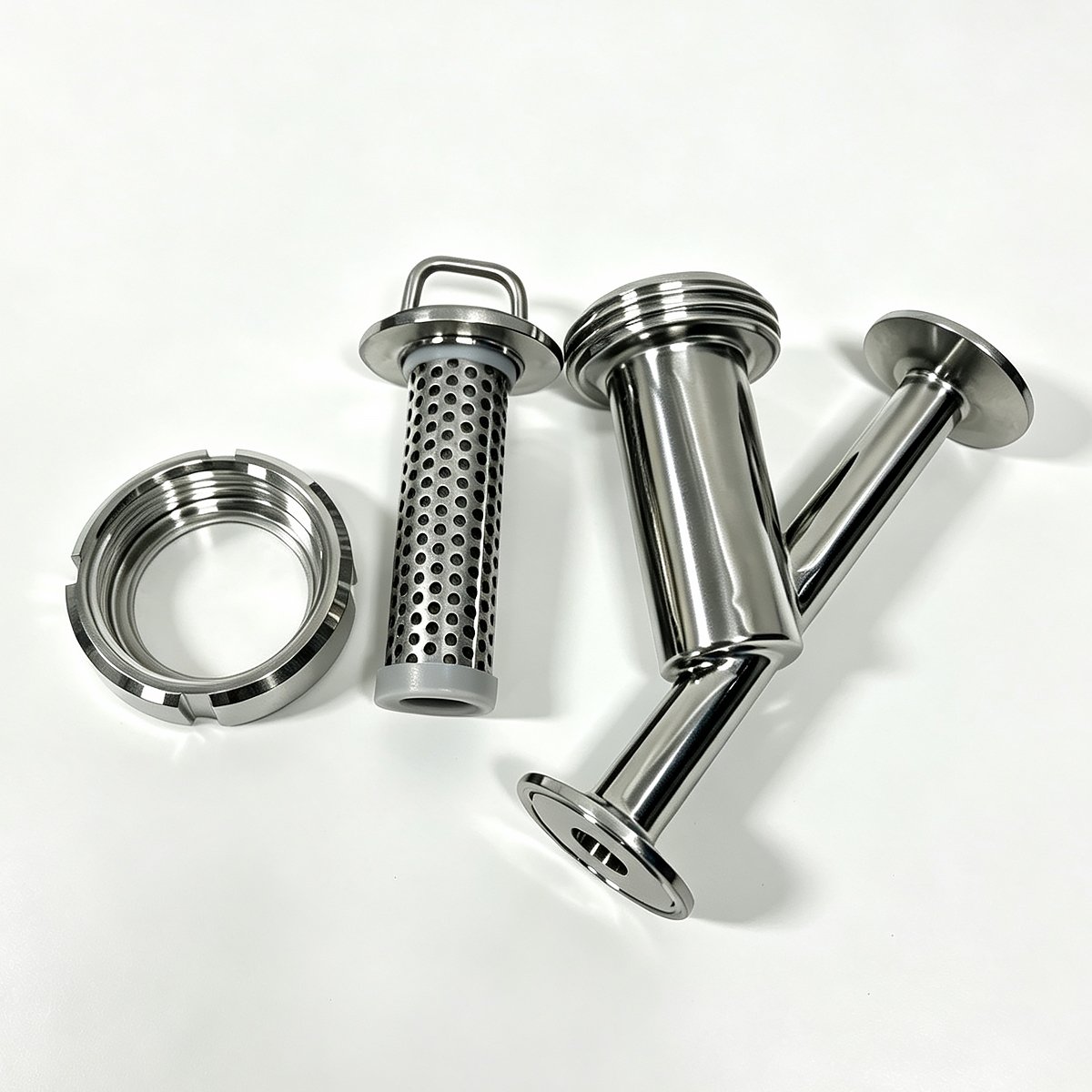

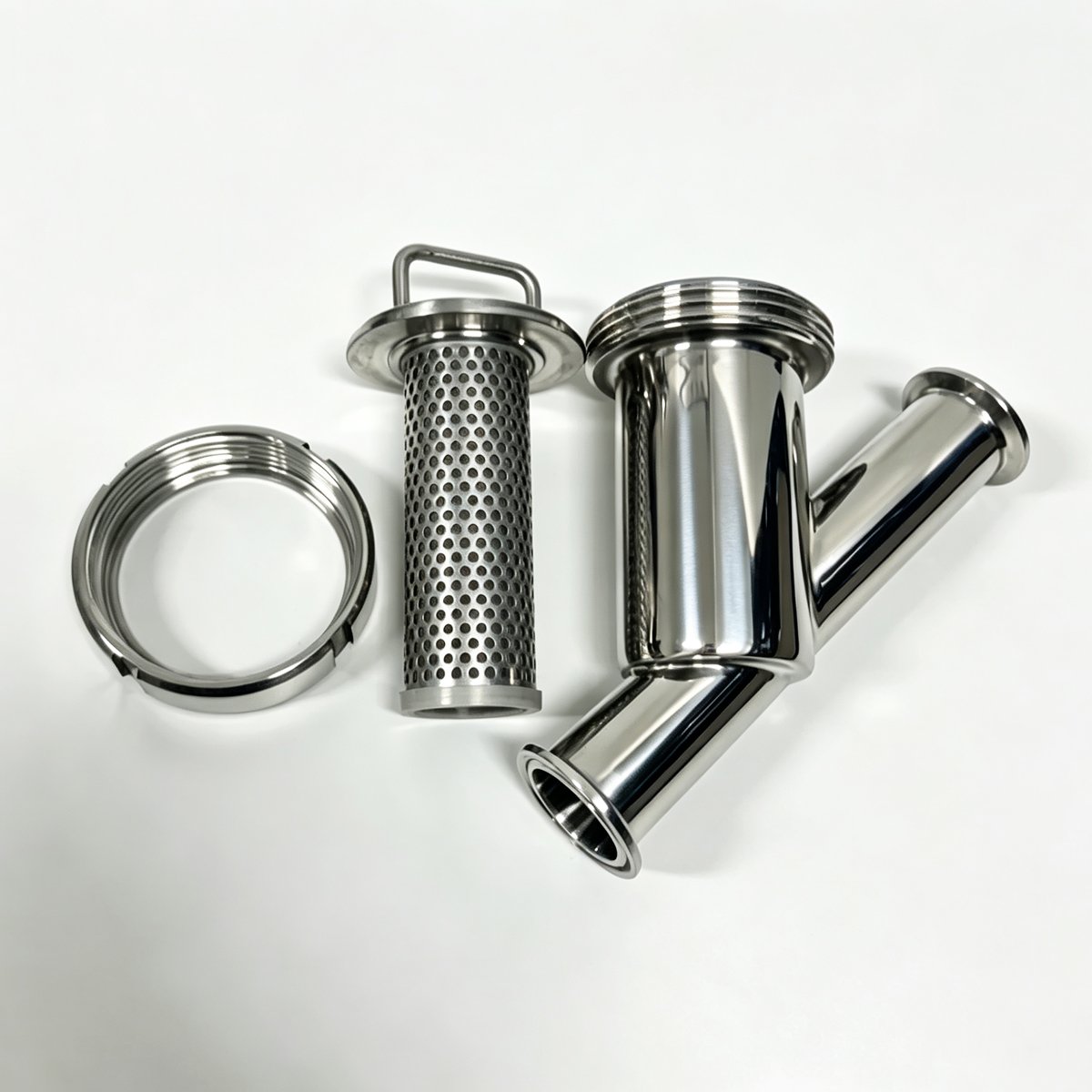

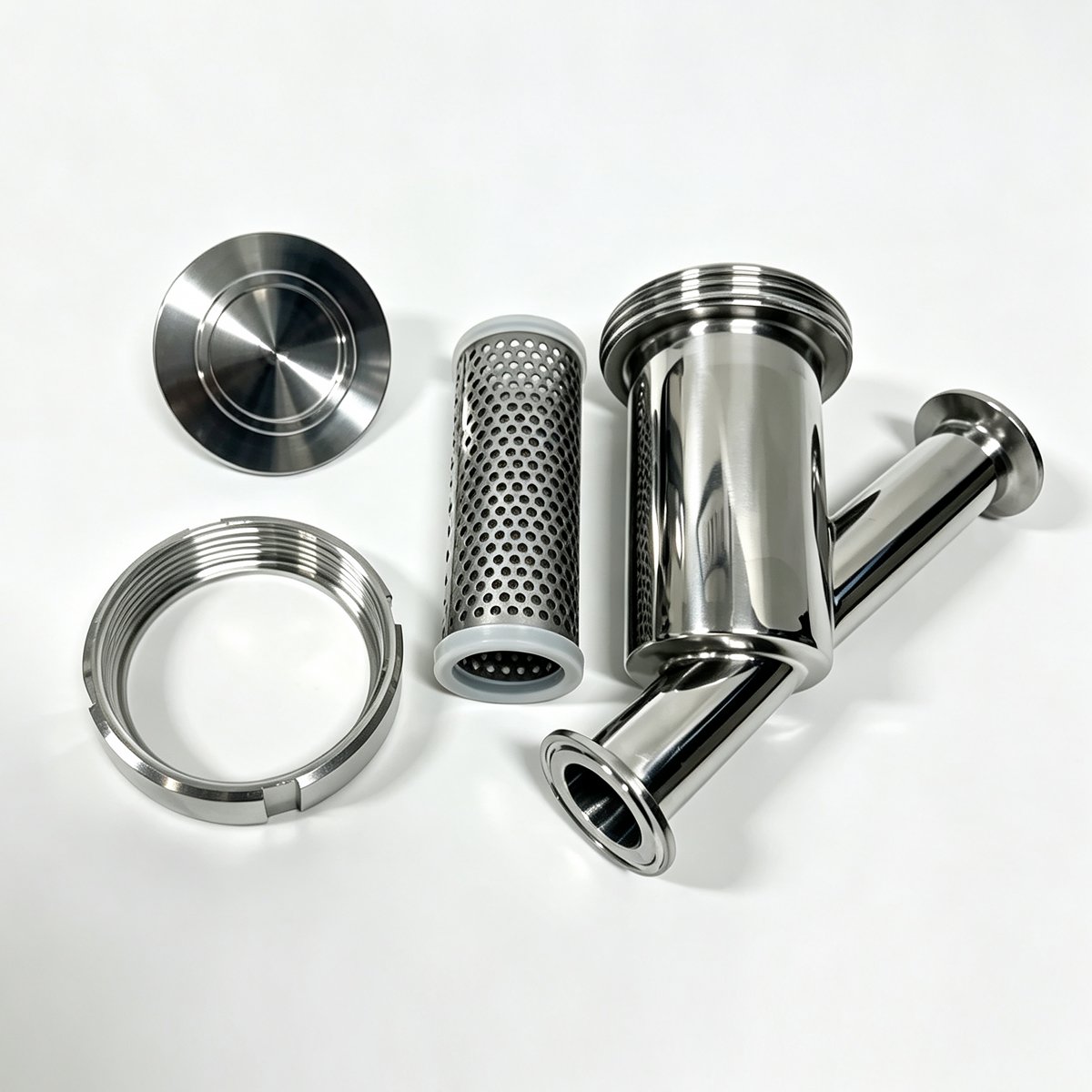

The clamp-type (Tri-Clamp) connections allow fast assembly and disassembly for inspection, cleaning, and maintenance. The Y-shaped body provides convenient access to the removable screen. Polished internal and external surfaces are suitable for hygienic processing and support cleaning and maintenance.

Key Features:

• Material: AISI 304 stainless steel (316 available)
• Connection: Tri-Clamp / Tri-Clover quick connection
• Type: Y-Strainer with removable mesh screen
• Surface: Sanitary polished finish
• Removable screen for cleaning and maintenance
• Suitable for hygienic liquid processing applications

Applications:

Dairy processing • Beverage production • Food processing systems • Brewery lines • Pharmaceutical and cosmetic process piping

For pharmaceutical, SIP, or other validated hygienic applications, material grade, surface finish, gasket material, screen specification, pressure, temperature, and cleaning or sterilization conditions should be confirmed according to the actual process requirements.
