Pharmaceutical extraction systems typically consist of multiple types of process equipment working together as an integrated production system. Extraction reactors, condensers, receiver tanks, pumps, process piping, and supporting structures all need to be coordinated according to the process requirements and installation conditions.
The following images show selected equipment and installation details from an ongoing pharmaceutical extraction system project by Haoqintech. Rather than focusing on the installation sequence, this article looks at the main equipment shown in the project and how these components are integrated into the overall process equipment system.

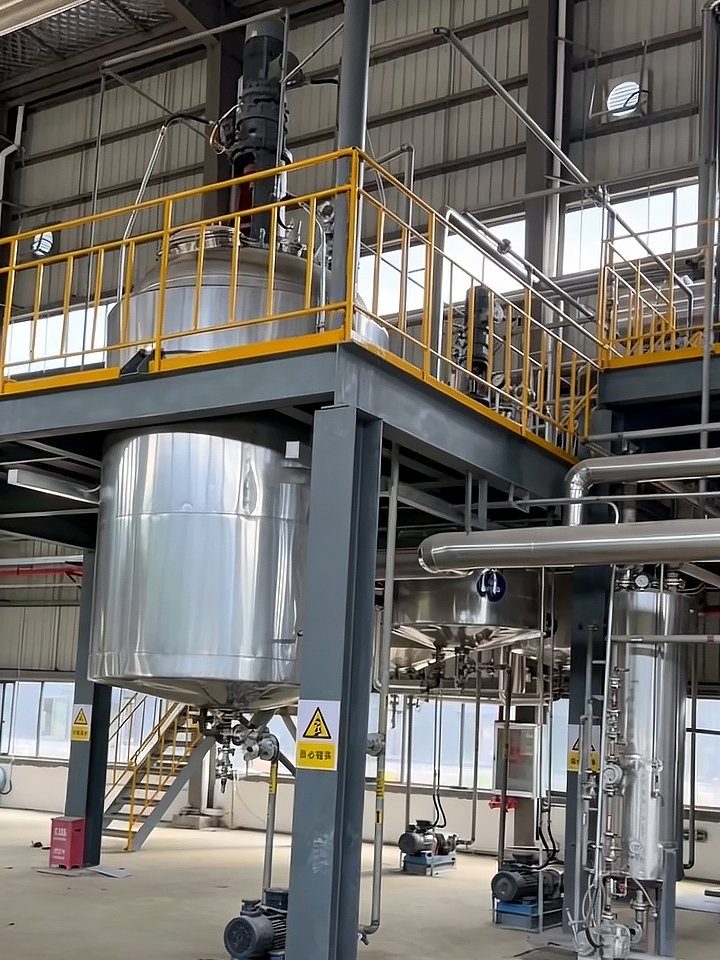

1. Pharmaceutical Extraction Reactor with Agitator
The main extraction vessel is a large vertical stainless steel reactor equipped with a top-mounted agitator drive.
The agitator provides controlled mixing inside the vessel during the extraction or processing operation. The vessel also includes bottom discharge connections, valves, and associated process piping for material transfer.
The reactor is integrated with a multi-level steel platform, providing access to the upper equipment area and supporting the arrangement of process connections around the vessel.
For pharmaceutical and other process applications, the configuration of an extraction reactor can vary according to factors such as working volume, material characteristics, mixing requirements, heating or cooling requirements, operating pressure, and connection configuration.
Haoqintech can customize stainless steel process vessels and related equipment according to specific project requirements.

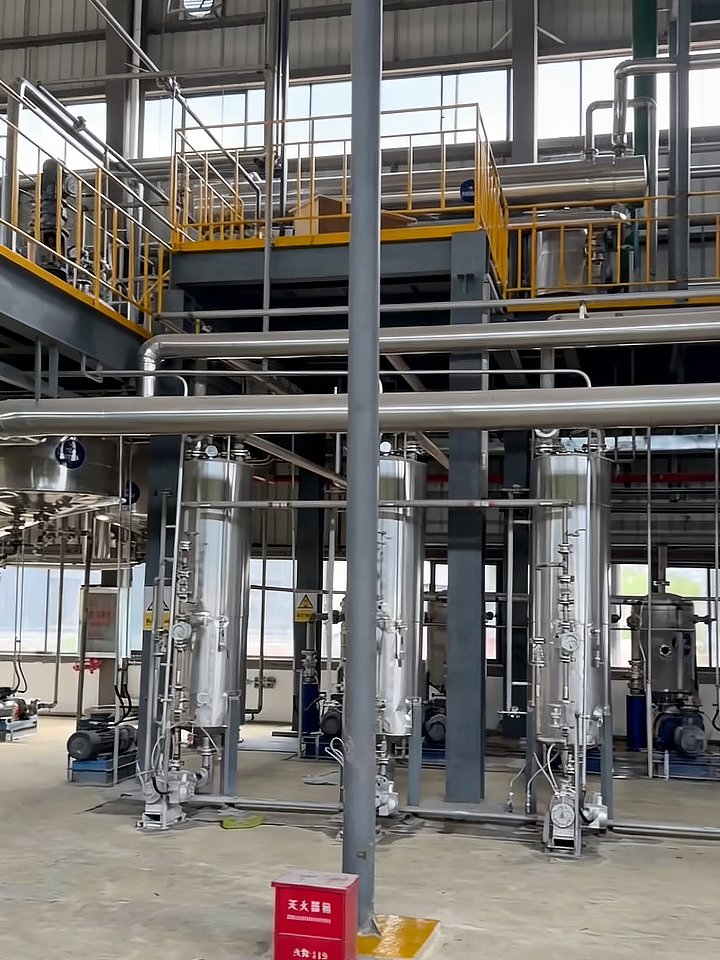

2. Vertical Condensers and Solvent Recovery Equipment
A group of vertical stainless steel process vessels is installed adjacent to the main extraction equipment.
These units can be used for vapor condensation and related heat-transfer duties within an extraction and recovery process. When a process involves heated vapors or volatile process media, condenser equipment can provide a controlled surface for vapor condensation and support the recovery of condensed materials.
The condenser units are connected to the surrounding process piping network, allowing them to operate as part of the larger extraction system rather than as independent equipment.
The arrangement of vertical equipment also makes use of the available multi-level structure, allowing process piping and equipment connections to be organized within the plant layout.
The actual condenser configuration, heat-transfer area, materials, connections, and operating conditions are determined according to the requirements of each project.

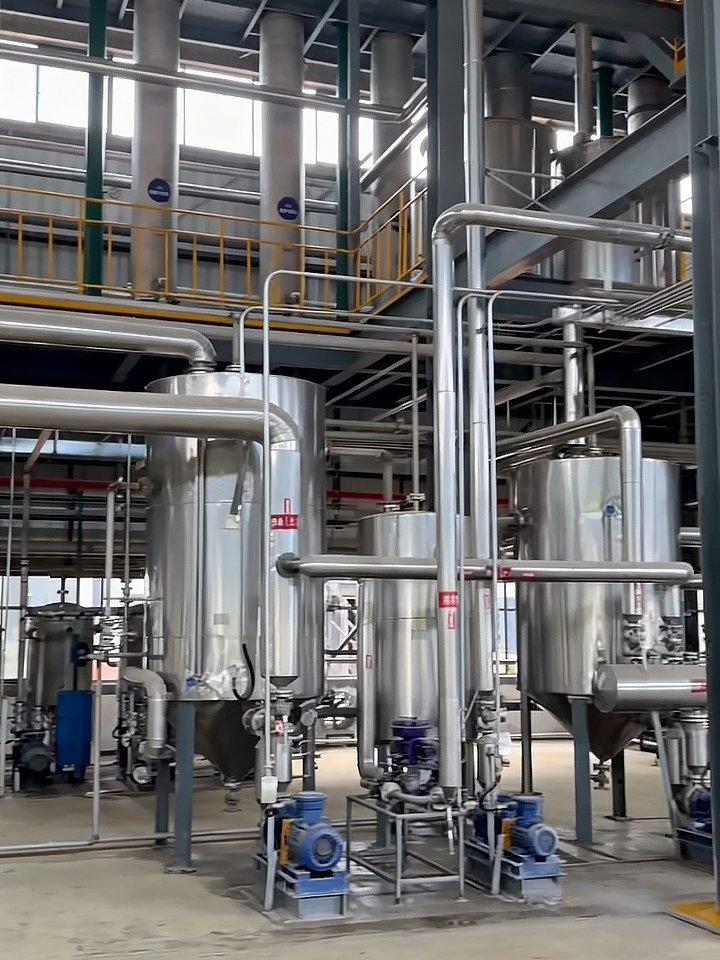

3. Conical-Bottom Receiver Tanks with Pumps
Several stainless steel tanks with conical lower sections are installed as part of the process system.
These receiver tanks can be used for intermediate collection or temporary storage within the extraction process, depending on the specific process configuration.
The conical-bottom design provides a practical outlet arrangement for liquid discharge and material transfer. Pump units are installed around the bottom section of the tanks and connected to the stainless steel process piping network.
The pumps provide the transfer function between different process equipment units. Pump selection in an extraction system depends on factors such as the characteristics of the process fluid, required flow rate, pressure, temperature, transfer distance, and process configuration.
This combination of receiver tanks, pumps, valves, and piping forms an important part of the material-transfer system.

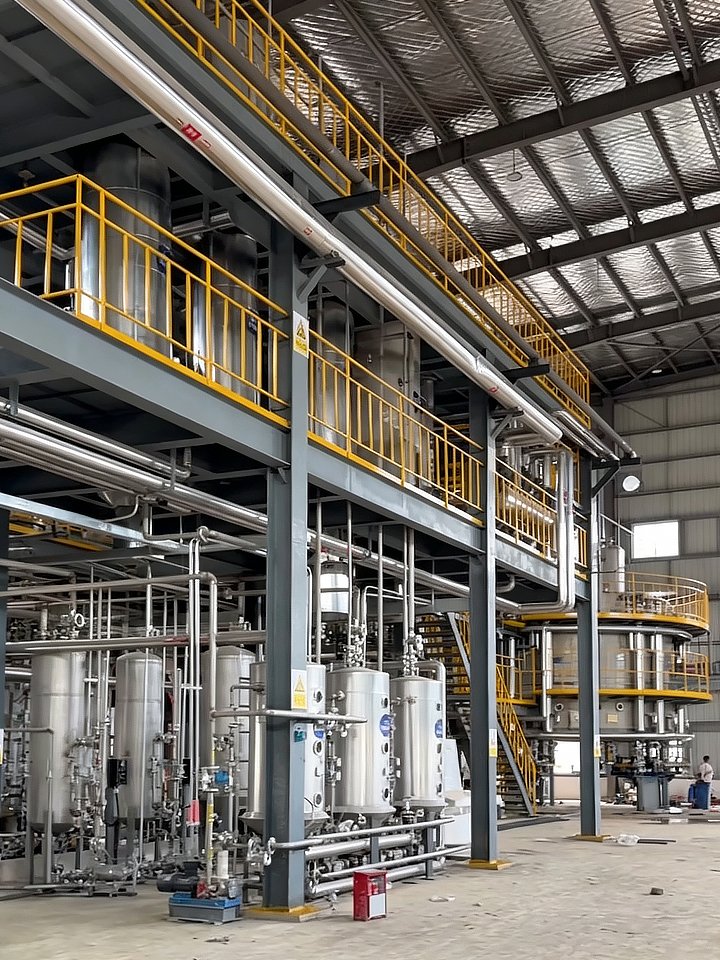

4. Overall Equipment Arrangement and Plant Installation
The overall project layout demonstrates how individual pieces of process equipment are combined into a larger pharmaceutical extraction system.
The installation includes:
- Stainless steel extraction reactors
- Vertical condensers and heat-transfer equipment
- Conical-bottom receiver tanks
- Process pumps
- Stainless steel process piping
- Valves and piping connections
- Multi-level steel operating platforms
- Access stairs and maintenance areas
The multi-level steel structure provides both equipment support and operator access. It also allows process equipment and piping to be arranged vertically, making better use of the available installation space.
For an integrated process equipment project, equipment selection is only one part of the engineering work. The relative position of vessels, piping routes, pumps, platforms, access areas, and maintenance space also needs to be considered during system planning and installation.
Equipment Integration in Pharmaceutical Process Projects
A pharmaceutical extraction system is more than a collection of individual stainless steel vessels.
The reactor, condenser, receiver tank, pump, piping, and supporting structure must work together as an integrated system. Equipment positioning and connection arrangements can affect material transfer, operator access, maintenance, and the overall efficiency of the installation.
For this reason, process equipment projects require coordination between equipment fabrication, piping layout, structural support, installation, and project-specific process requirements.
Haoqintech’s experience covers stainless steel process equipment, sanitary components, equipment integration, process piping, and on-site installation for different process applications.
From Fermentation Equipment to Broader Process Engineering
Haoqintech’s process equipment experience began with fermentation and liquid culture systems, where stainless steel vessels, sterile air filtration, process piping, temperature control, and system integration were important parts of the engineering work.
As project experience has grown, our scope has gradually expanded into a broader range of applications, including biotechnology, pharmaceutical processing, natural and botanical extraction, chemical processing, and other hygienic process applications.
This development has allowed Haoqintech to build experience not only in individual stainless steel components, but also in larger equipment systems involving vessels, heat-transfer equipment, piping, structural platforms, and on-site installation.
Current Project Status
This pharmaceutical extraction project is currently under installation.
The project involves the positioning and integration of stainless steel process equipment, process piping, pumps, supporting structures, and related connections.
As installation progresses, equipment alignment, piping connections, structural integration, accessibility, and other project-specific requirements are coordinated according to the engineering and installation plan.
The final configuration and operating parameters are determined by the project requirements and the customer’s process design.
Conclusion
This project demonstrates the type of integrated process equipment work that Haoqintech is increasingly involved in.
From the main extraction reactor and condenser equipment to receiver tanks, pumps, process piping, and multi-level operating platforms, each component forms part of a coordinated stainless steel process system.
With experience developed through fermentation and liquid culture projects and expanded into pharmaceutical, biotechnology, extraction, chemical, and other process applications, Haoqintech provides customized stainless steel process equipment and equipment integration support based on individual project requirements.
For pharmaceutical extraction systems and other stainless steel process equipment projects, the combination of equipment fabrication, system integration, process piping, and on-site installation provides a practical foundation for delivering complete project solutions.
