In modern hygienic process systems, reliable and cleanable connections are essential. One of the most widely used connection components is the Tri-Clamp weld ferrule, also commonly referred to as a sanitary weld ferrule.
Used in dairy, beverage, brewing and food processing systems, a weld ferrule provides a permanent sanitary connection point that can be quickly connected to another ferrule using a gasket and Tri-Clamp.
This article explains the background of the Tri-Clamp connection, how a weld ferrule works, the benefits of 304 stainless steel, common applications, and the key factors to consider when selecting the right sanitary weld ferrule.
What Is a Sanitary Tri-Clamp Weld Ferrule?
A Tri-Clamp weld ferrule is a stainless steel fitting designed to be welded onto sanitary tubing, tanks or process equipment.
The ferrule has a sanitary flange that connects to another ferrule using:
- A sanitary gasket
- A Tri-Clamp
Once welded into the process line, the ferrule creates a permanent connection point while allowing the connected components to be removed quickly for cleaning, inspection or maintenance.
This combination of permanent welding and removable clamp connections is one of the reasons Tri-Clamp systems are widely used in hygienic processing.
A Brief History of the Tri-Clamp Connection
The sanitary clamp connection is closely associated with Tri-Clover, a company that developed sanitary equipment for the dairy and food industries in the early 20th century.
Compared with traditional threaded or bolted connections, the sanitary clamp design offered several practical advantages:
- Faster assembly and disassembly
- Easier cleaning and inspection
- Fewer areas where product residue could accumulate
- A simple gasket-and-clamp sealing system
Over time, sanitary clamp connections became widely adopted across food, beverage, dairy and other hygienic processing industries.
Today, Tri-Clamp-style connections are commonly used throughout sanitary process piping and equipment, with dimensional standards helping improve compatibility between components.
Why Choose 304 Stainless Steel for a Tri-Clamp Weld Ferrule?
1. Good Corrosion Resistance
304 stainless steel provides good corrosion resistance for many food, beverage and dairy processing environments.
It is a practical and cost-effective material choice for general sanitary applications where the process conditions do not require the additional corrosion resistance of 316L stainless steel.
2. Hygienic and Easy to Clean
Sanitary weld ferrules are designed with smooth internal surfaces and cleanable geometries to help minimize areas where product residue can accumulate.
When properly installed and finished, the connection can support effective cleaning procedures such as CIP and other established hygienic cleaning processes.
3. Fast Connection and Disconnection
After the ferrule has been welded into the process line, the connection can be assembled or disconnected quickly using a compatible gasket and Tri-Clamp.
This is particularly useful for systems that require:
- Frequent inspection
- Regular maintenance
- Product changeovers
- Equipment replacement
- Routine cleaning
4. Widely Used Sanitary Connection Design
Tri-Clamp-style connections are widely used in hygienic process systems, making compatible ferrules, clamps and gaskets readily available for many applications.
This can simplify equipment maintenance and component replacement.
5. Flexible Installation
Weld ferrules can be installed on sanitary tubing, tanks and process equipment to create removable connection points.
They are commonly used for:
- Process piping
- Tank outlets
- Pump connections
- Valve connections
- Filter connections
- Instrument connections
Common Applications for 304 Stainless Steel Weld Ferrules
304 stainless steel sanitary weld ferrules are commonly used in:
- Dairy processing — milk, cream and other liquid dairy products
- Beverage processing — juice, soft drinks and purified water systems
- Brewing — breweries and beverage production equipment
- Food processing — hygienic product transfer lines
- Sanitary tanks — tank outlets and process connections
- Pilot plants — laboratory and small-scale processing systems
They are particularly useful in systems where components need to be disconnected regularly for cleaning, inspection or maintenance.
How to Choose the Right Tri-Clamp Weld Ferrule
Before ordering a sanitary weld ferrule, consider the following factors.
1. Tube Size

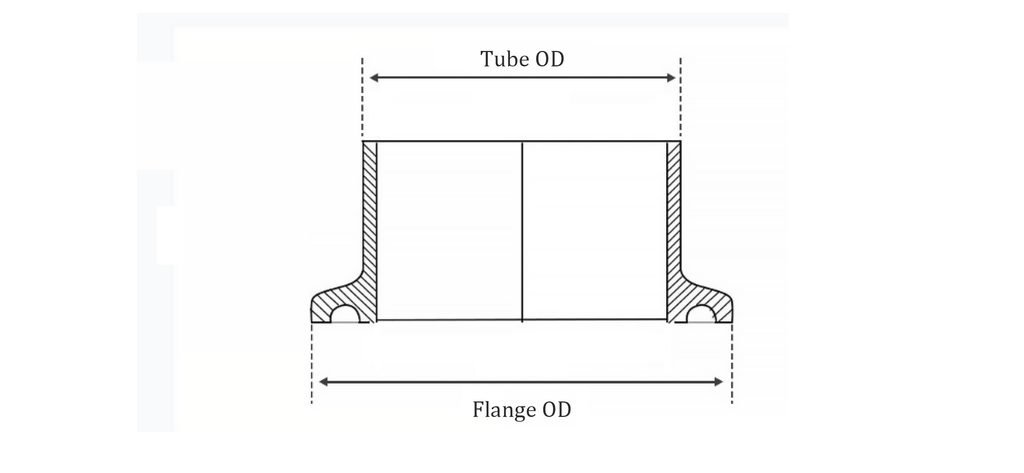

Confirm the tube outside diameter (OD) and the applicable connection standard.
Do not select the ferrule based only on the flange diameter. The ferrule must match the tubing and the other components in the sanitary connection.
2. Stainless Steel Material
The most common choices are:
- 304 stainless steel — suitable for many general food, beverage and dairy applications
- 316L stainless steel — preferred when higher corrosion resistance or more demanding hygienic requirements are needed
The material should be selected according to the process media, cleaning chemicals, temperature and overall operating environment.
3. Surface Finish
Surface finish is an important consideration for hygienic applications.
Depending on the application and specification, sanitary components may require a controlled internal surface finish, such as Ra ≤ 0.8 μm or a finer finish.
Always confirm the required finish with your equipment specification or project requirements.
4. Ferrule Length and Design
Different applications may require different weld ferrule configurations, including short or extended weld lengths.
Consider:
- Available installation space
- Tube wall thickness
- Welding method
- Equipment design
- Required connection dimensions
5. Connection Standard
Make sure the ferrule matches the dimensional standard used by the other components in the system.
Common sanitary standards and specifications may include ASME BPE, 3-A and other applicable industry requirements, depending on the application and market.
Always verify the actual dimensions and required certification before ordering.
304 vs. 316L Sanitary Weld Ferrules
For many general sanitary applications, 304 stainless steel provides a good balance of corrosion resistance and cost.
However, 316L may be a better choice when the system is exposed to more aggressive cleaning chemicals, chlorides or demanding pharmaceutical and high-purity process conditions.
The right material depends on the complete application rather than simply the industry name.

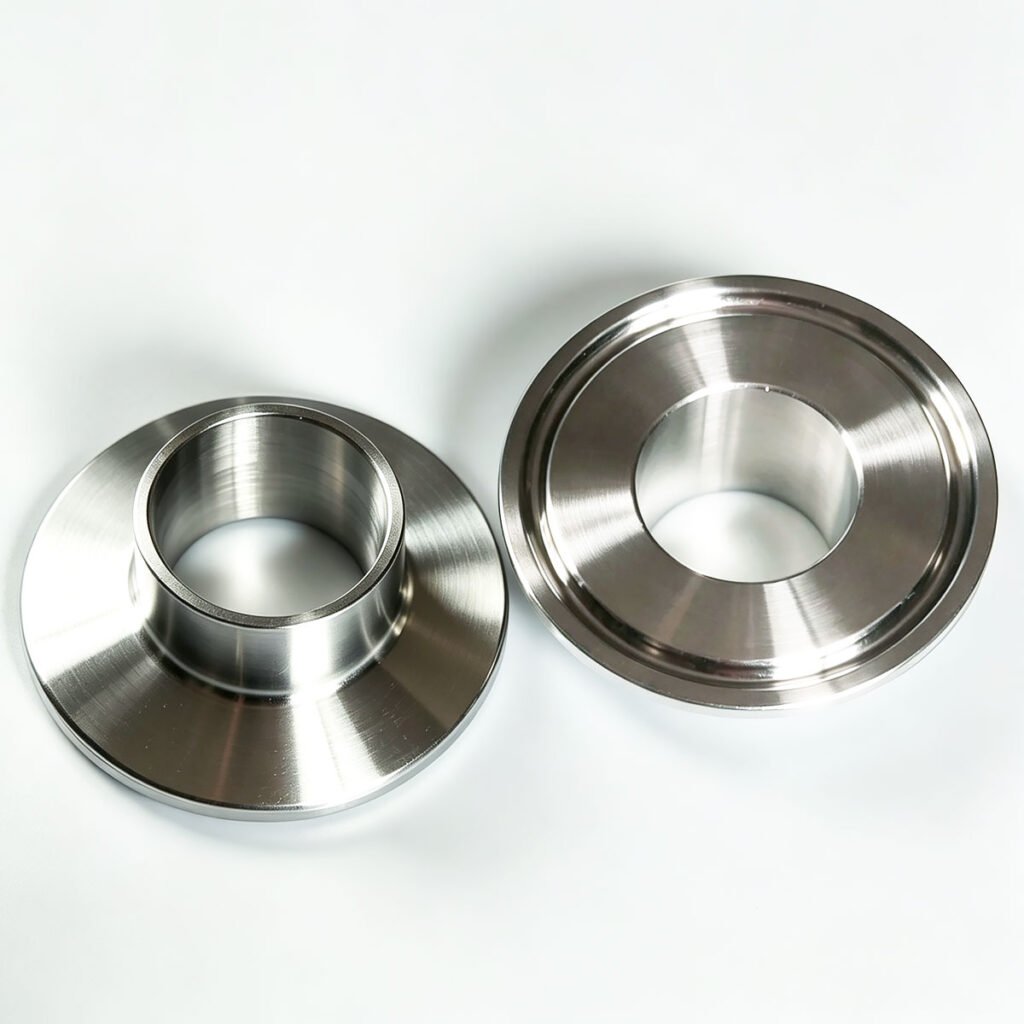

Haoqintech 304 Stainless Steel Tri-Clamp Weld Ferrules
Haoqintech supplies 304 stainless steel sanitary Tri-Clamp weld ferrules for food, beverage, dairy, brewing and other hygienic processing applications.
Our sanitary weld ferrules are available in different sizes and configurations to meet various sanitary piping and equipment requirements.
For projects requiring specific dimensions or documentation, customers can provide their tubing size, connection standard, material requirements and surface-finish requirements for confirmation.
Conclusion
A sanitary Tri-Clamp weld ferrule provides a reliable connection point between sanitary tubing and process equipment while allowing fast connection and disconnection through a compatible gasket and clamp.
For many food, beverage and dairy applications, 304 stainless steel offers a practical combination of corrosion resistance, durability and cost-effectiveness.
Choosing the correct ferrule requires more than selecting a nominal size. Tube dimensions, material, surface finish, connection standard, welding requirements and operating conditions should all be considered.
Need help selecting the right sanitary weld ferrule?
Haoqintech can help you identify the appropriate sanitary ferrule based on your tube size, connection requirements and application.
Contact Haoqintech for a quotation or technical support.
