Description

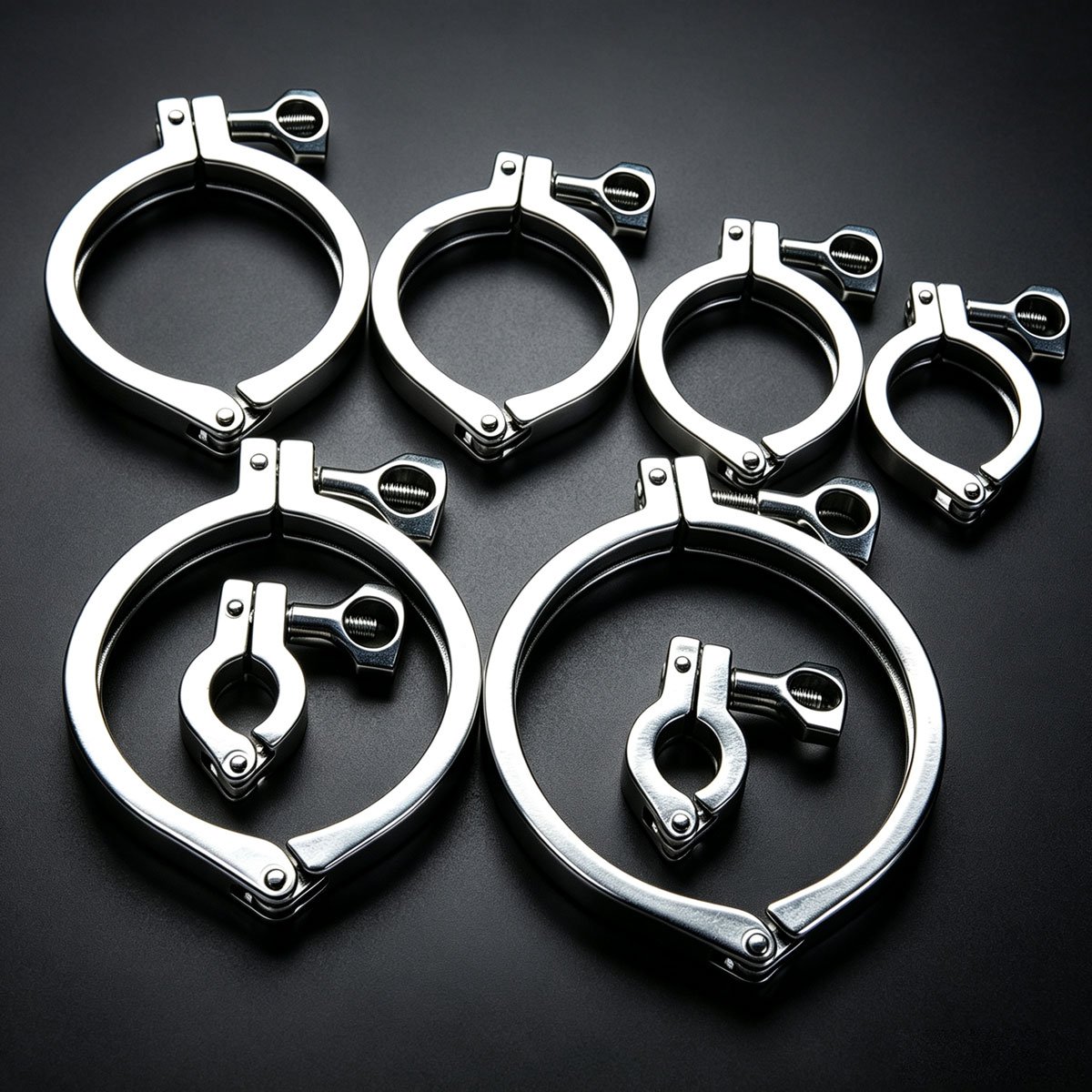

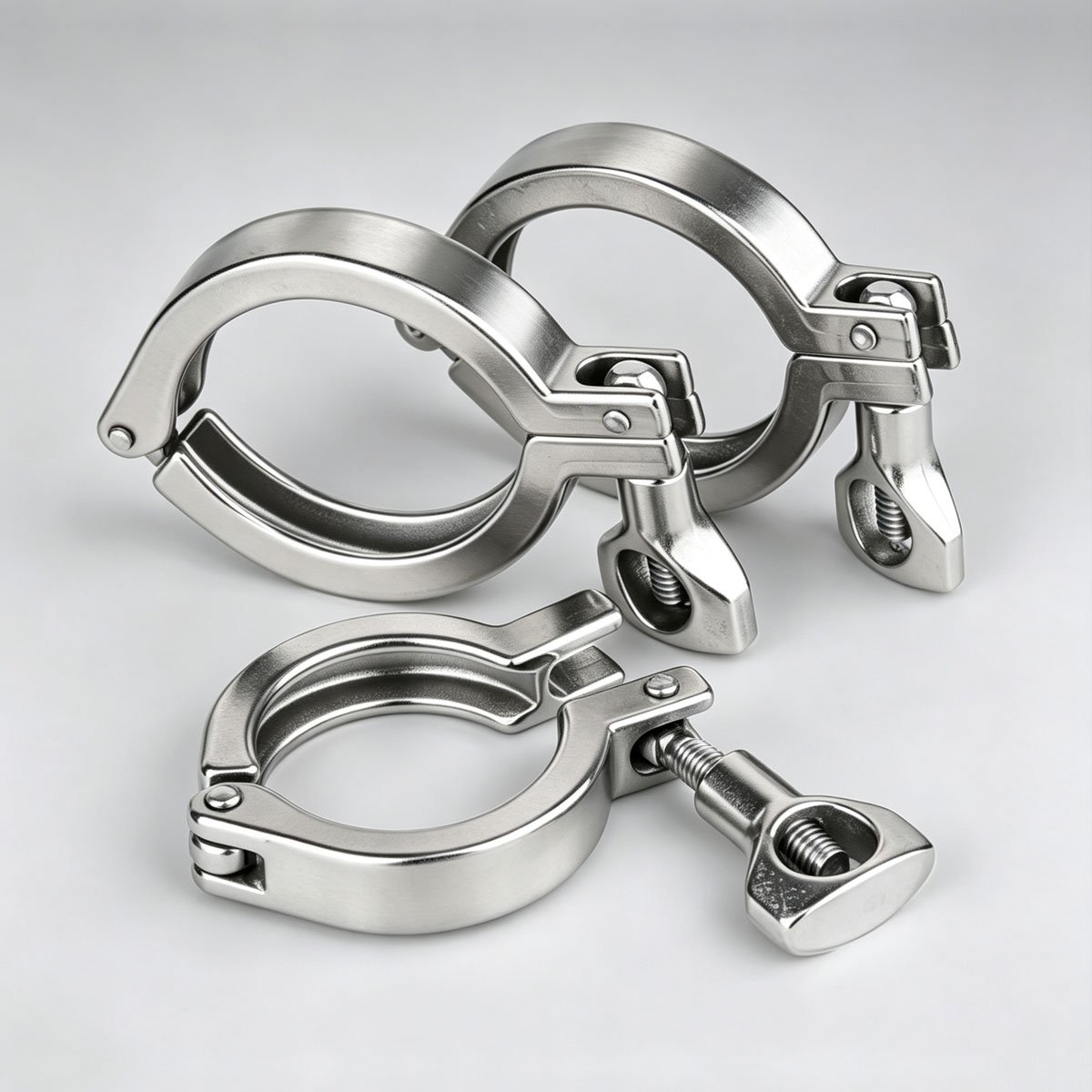

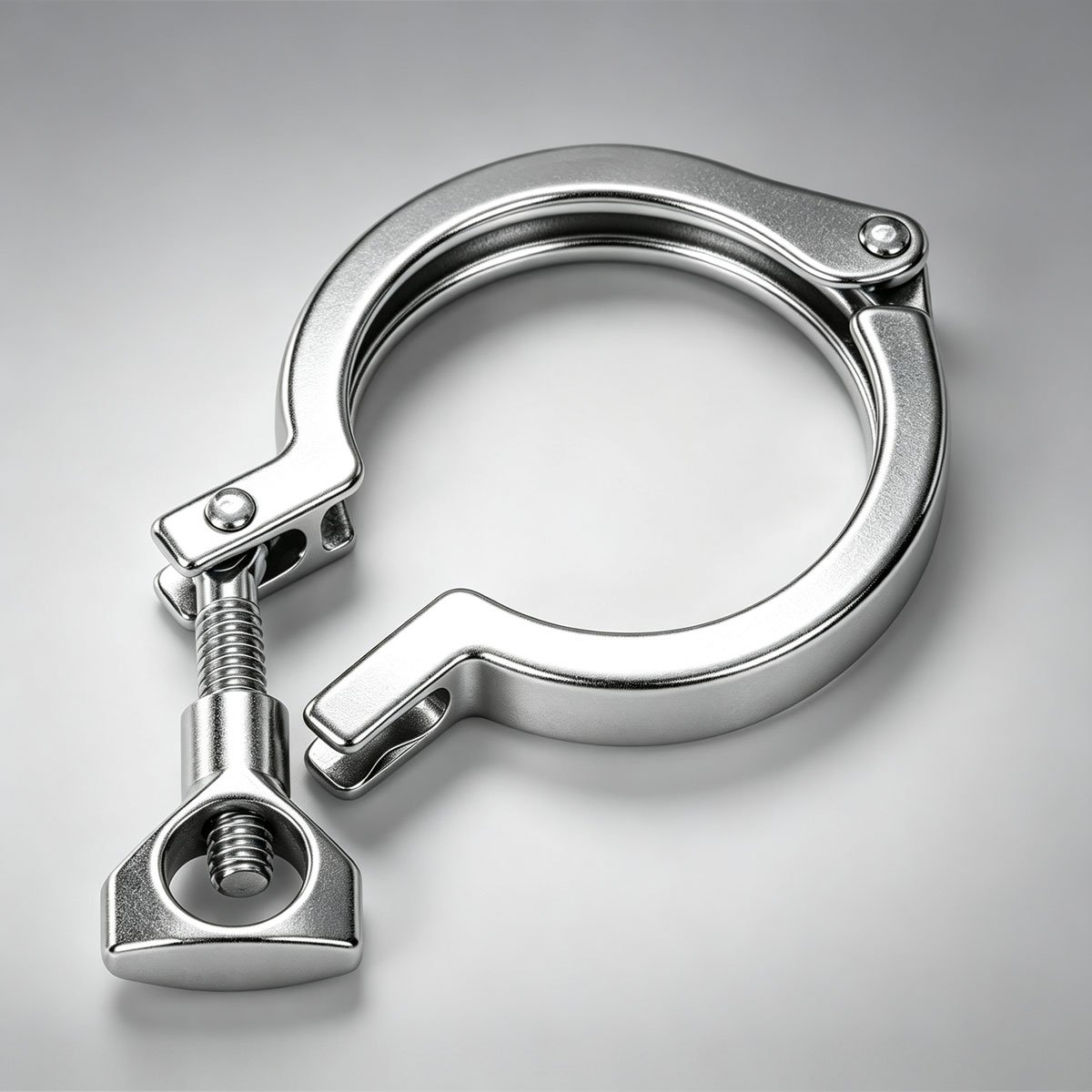

The 304 Stainless Steel Heavy Duty Tri-Clamp is designed to securely connect two sanitary Tri-Clamp ferrules in hygienic piping systems. The single-pin design allows for quick and reliable installation and removal while maintaining a secure connection.
Made from 304 stainless steel, this sanitary clamp is suitable for food and beverage processing, brewing, dairy, pharmaceutical, chemical, water treatment, fermentation, and other hygienic applications.

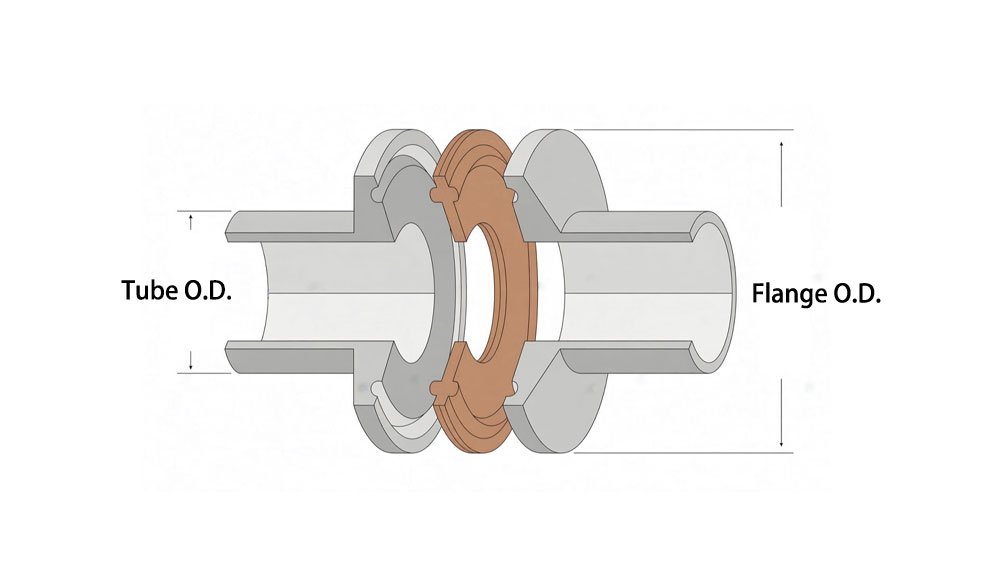

How to Choose the Correct Tri-Clamp Size
Tri-Clamp sizing is based on the outside diameter (OD) of the tube, not the outside diameter of the clamp or flange.
For example:
- If the tube OD measures 2 inches, the correct Tri-Clamp size is 2 inches.
- If the flange OD of an existing Tri-Clamp fitting measures approximately 2.5 inches (2.516″), the fitting is typically a 2-inch Tri-Clamp size.

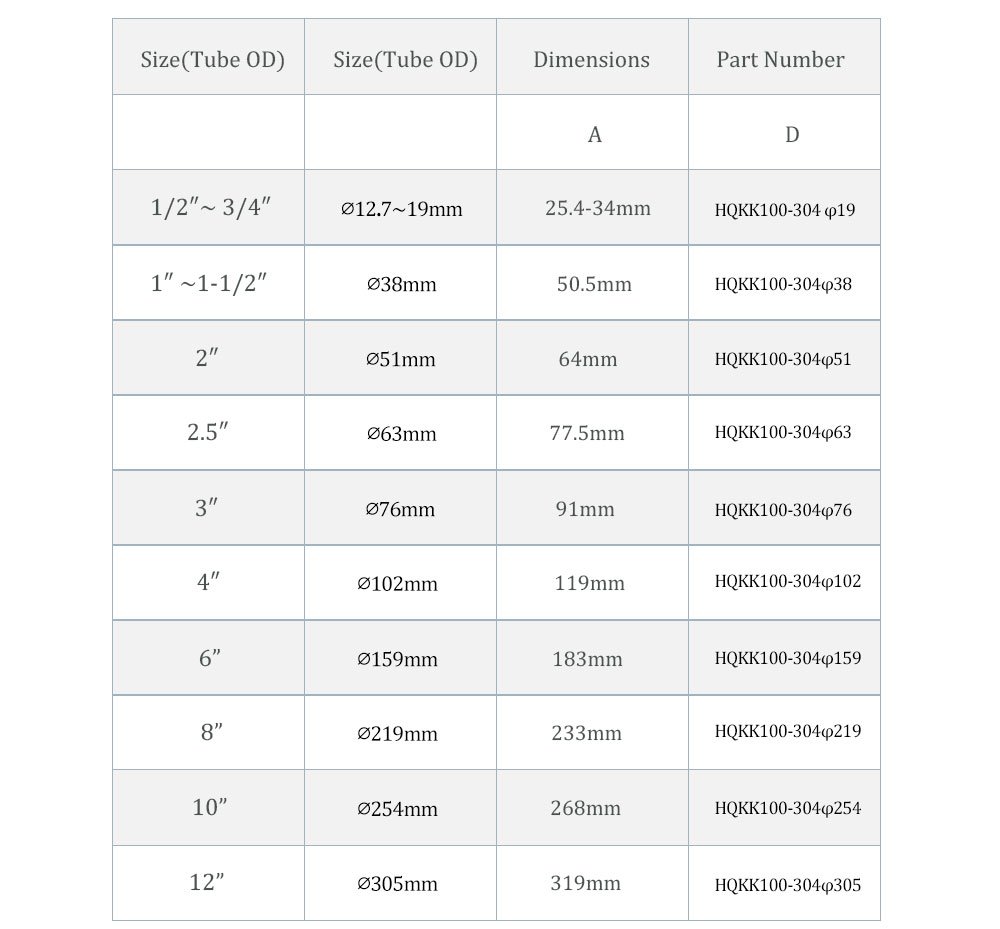

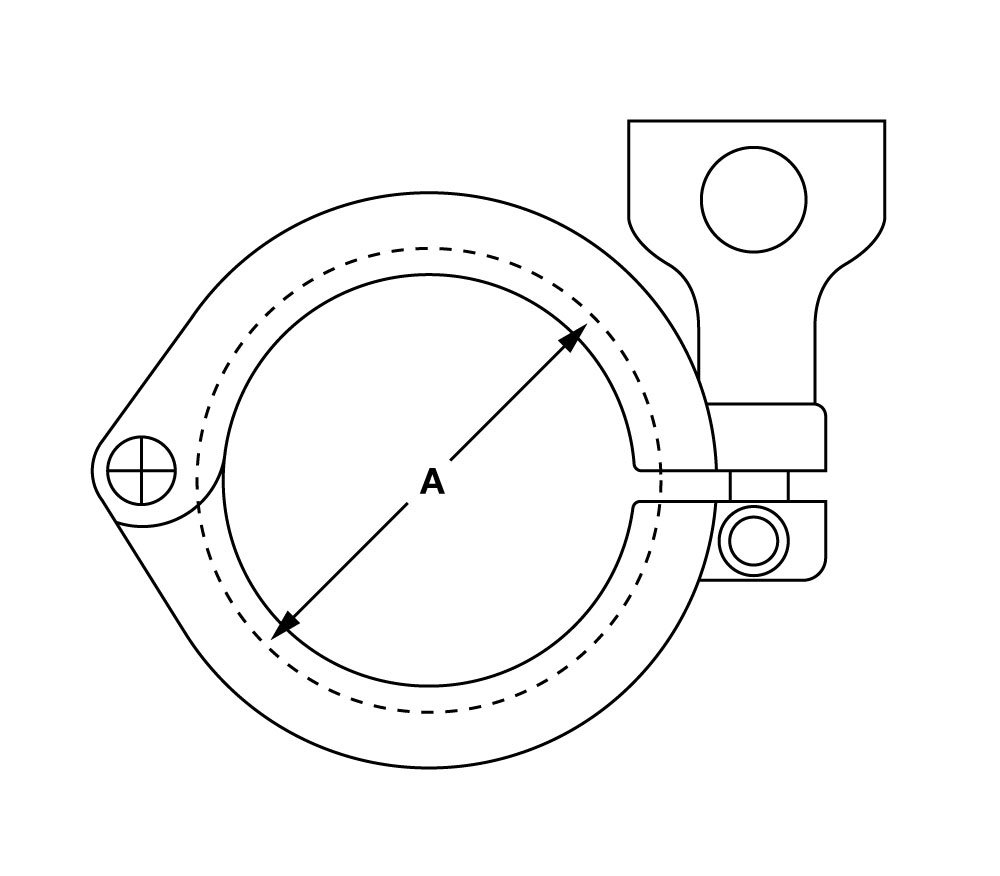

Tri-Clamp Size Guide
Use the size chart below to compare the corresponding tube OD and flange OD measurements.
Important Notes:
- 1/2″ and 3/4″ Tri-Clamp sizes use approximately the same flange OD of 0.984″.
- 1″ and 1-1/2″ Tri-Clamp sizes use approximately the same flange OD of 1.984″.
- Always identify the Tri-Clamp size by measuring the tube OD, rather than relying only on the flange OD.

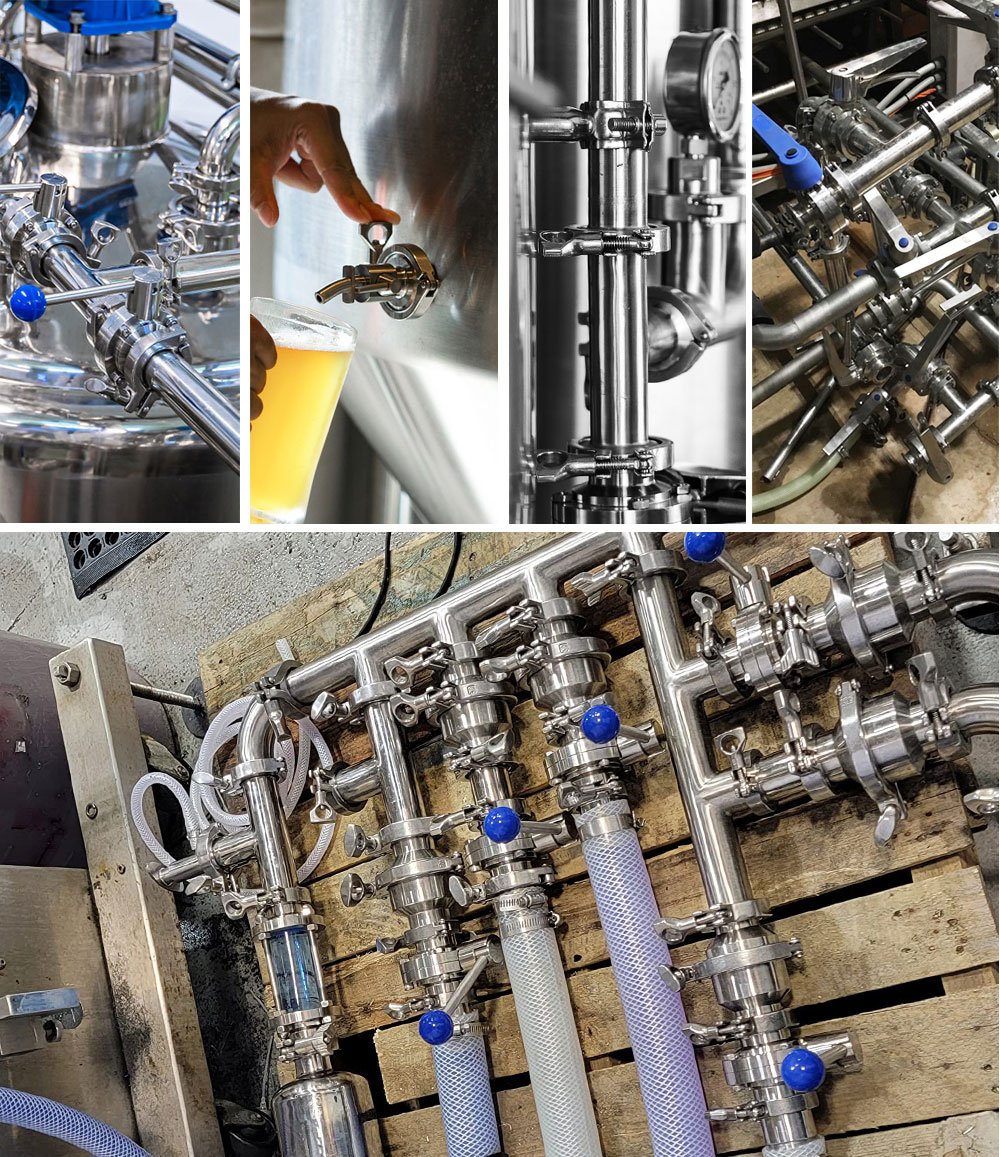

Typical Applications
This heavy-duty sanitary Tri-Clamp is commonly used in:
- Food & beverage processing
- Brewing and fermentation
- Dairy processing
- Pharmaceutical and bioprocessing
- Chemical processing
- Water treatment
- Hygienic fluid transfer systems
