Description

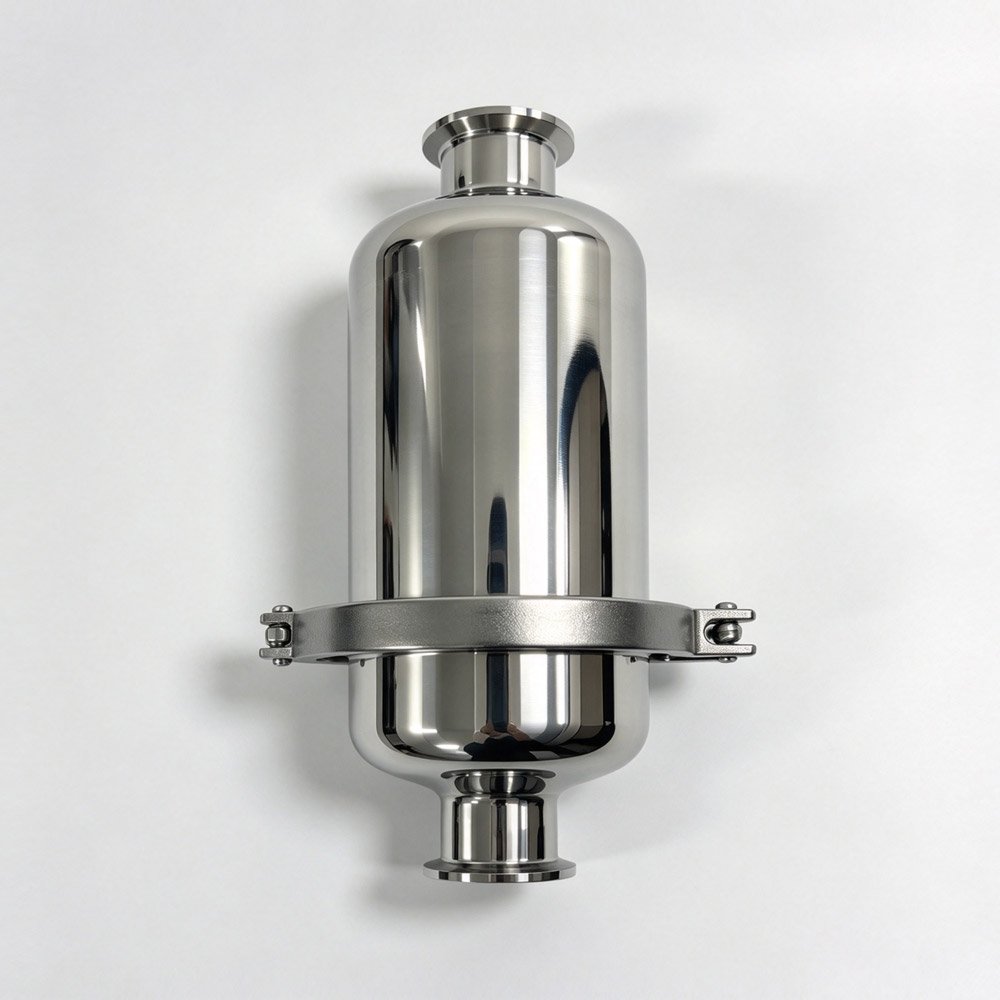

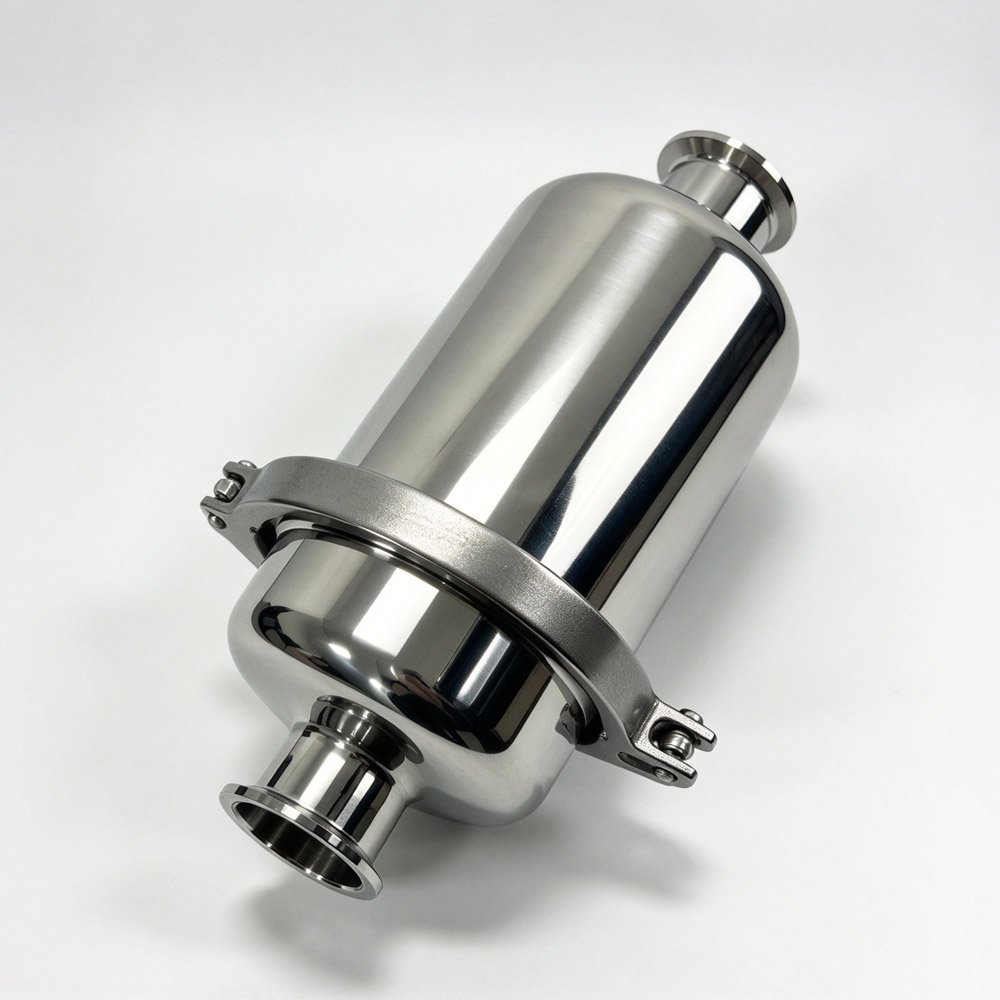

304 SS Sanitary Tri-Clamp Pipeline Strainer – 5 Inch
The 304 SS Sanitary Tri-Clamp Pipeline Strainer – 5 Inch is designed for liquid pipelines where particulate removal and hygienic processing are required. The straight-through pipeline design allows the strainer to be installed directly into a sanitary fluid line, while the removable stainless steel mesh screen allows inspection, cleaning, and maintenance.
The strainer uses sanitary Tri-Clamp connections for convenient installation and removal. Its 304 stainless steel construction makes it suitable for a range of food, beverage, dairy, brewing, and general hygienic liquid-processing applications.
Key Features
- 304 stainless steel construction for sanitary liquid-processing applications
- Tri-Clamp connections for convenient installation and maintenance
- 5-inch configuration for applications requiring this specific pipeline size
- Straight-through pipeline design for inline installation
- Removable stainless steel mesh screen for inspection and cleaning
- Suitable for food, beverage, dairy, brewing, pharmaceutical, and other hygienic processing systems
- Designed for installation in liquid pipelines where particulate protection is required
How the Pipeline Strainer Works
The sanitary pipeline strainer is installed in the liquid pipeline before downstream equipment or process components that require protection from unwanted particles.
As liquid passes through the strainer, the stainless steel mesh screen retains particles larger than the selected mesh opening. The screened liquid continues through the pipeline, while the removable screen can be taken out for cleaning or inspection when required.
The straight-through configuration also allows the component to function as a sanitary inline strainer in a liquid processing system.
5-Inch Sanitary Pipeline Strainer for Hygienic Processing
This 5-inch pipeline strainer is intended for sanitary fluid-processing systems where stainless steel construction and cleanable components are important.
Typical applications include:
- Food and beverage processing
- Dairy processing
- Brewing systems
- Pharmaceutical processing
- Cosmetic and personal-care production
- Liquid culture and fermentation systems
- Hygienic industrial liquid pipelines
The actual suitability of the strainer depends on the process liquid, operating conditions, connection size, mesh specification, and system requirements.
Tri-Clamp Connection
Tri-Clamp connections allow the pipeline strainer to be installed and removed without complicated threaded connections. This can be useful in sanitary processing systems where components may need to be inspected, cleaned, or replaced regularly.
The appropriate connection size should be selected according to the pipeline and equipment configuration.

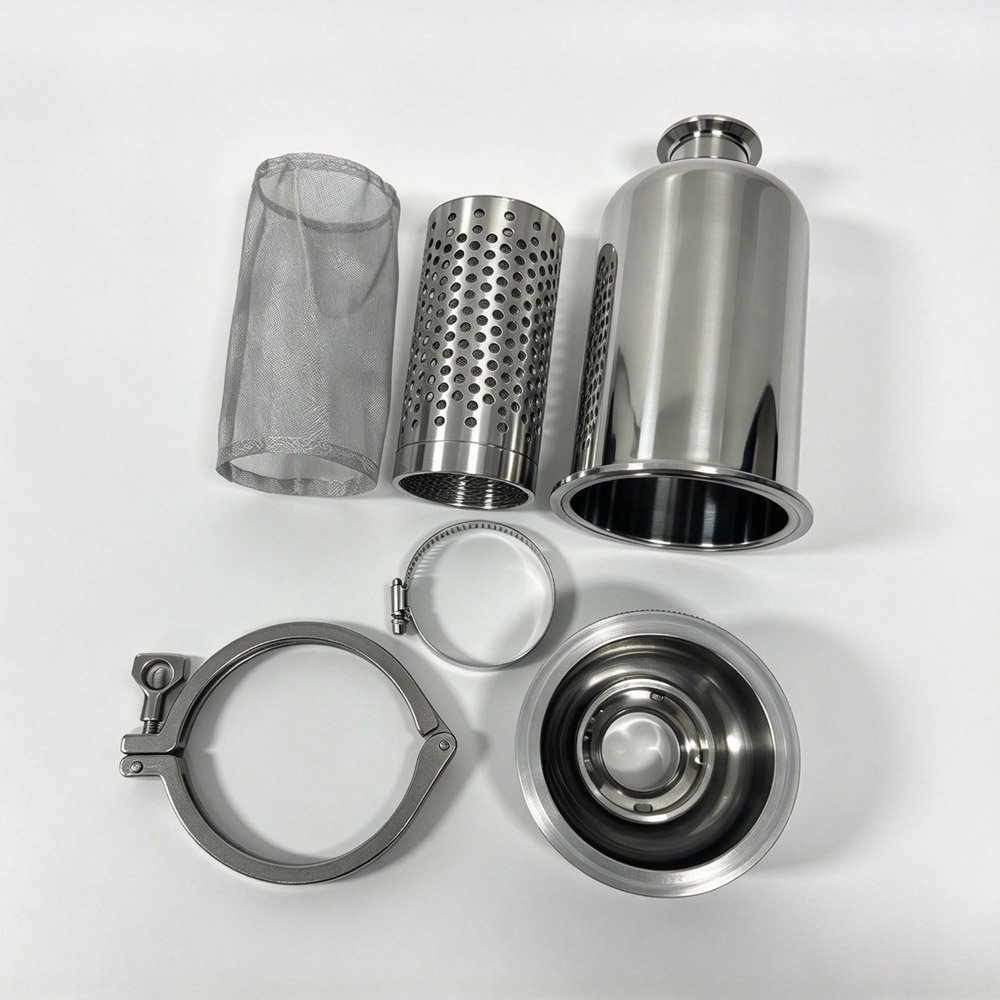

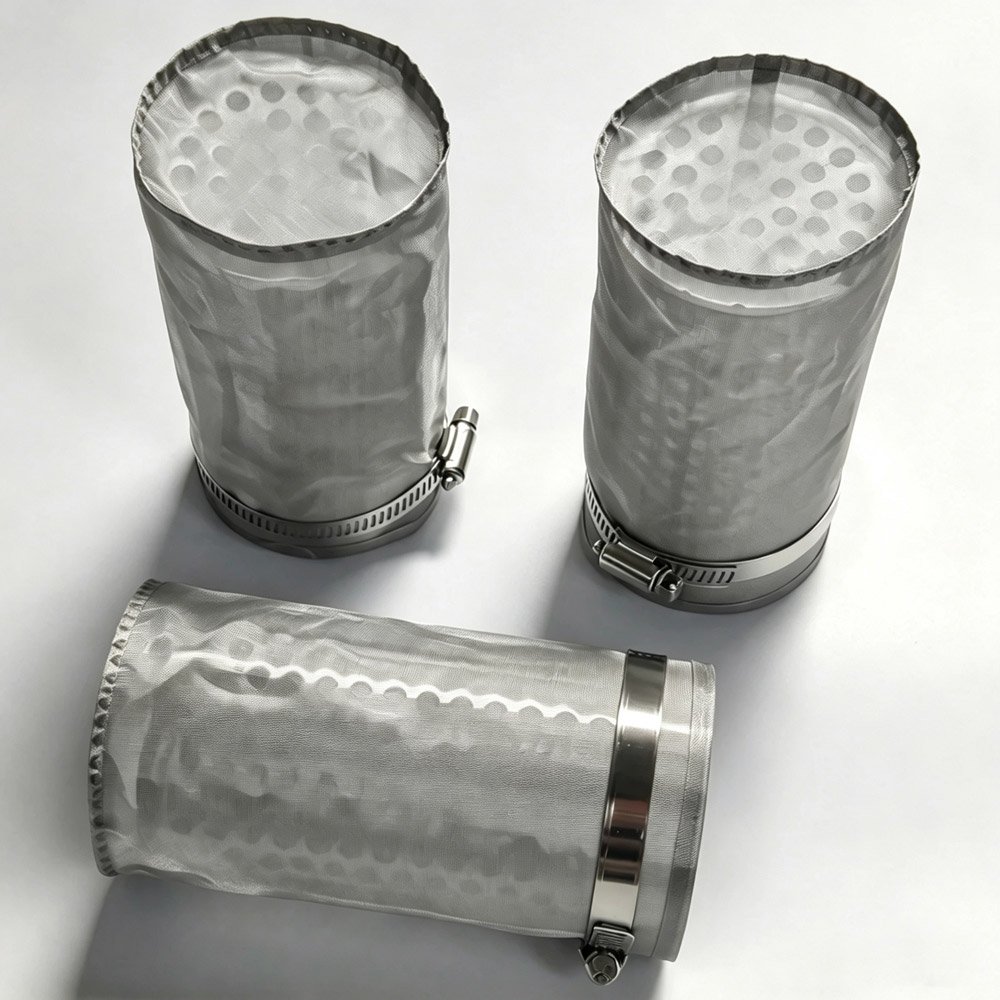

Removable Mesh Screen
The removable stainless steel mesh screen is the main filtration element of the pipeline strainer.
Different mesh specifications can be selected according to the required particle retention and process conditions. Mesh selection should consider particle size, liquid viscosity, flow requirements, pressure drop, cleaning requirements, and the equipment located downstream.
Please contact Haoqintech if you need help selecting the appropriate mesh specification for your application.
Pipeline Strainer vs. Y-Strainer
Both pipeline strainers and Y-strainers can be used to remove particulate matter from liquid pipelines, but their configurations are different.
A straight-through pipeline strainer places the inlet and outlet on the same flow path, while a Y-strainer uses a branch-shaped body with the screening element positioned in the Y-section.
For applications where a straight-through sanitary configuration is preferred, this 5-inch pipeline strainer provides a compact option with removable mesh screening.
For other pipeline configurations, see our sanitary Y-strainer range.
Technical Information
| Specification | Details |
|---|---|
| Product Type | Sanitary Pipeline Strainer |
| Material | 304 Stainless Steel |
| Connection | Tri-Clamp |
| Configuration | Straight-Through |
| Size | 5 Inch |
| Filter Element | Removable Stainless Steel Mesh Screen |
| Installation | Inline Pipeline Installation |
| Application | Hygienic Liquid Processing |
Note: Mesh size, connection dimensions, pressure rating, temperature rating, surface finish, and other technical specifications should be confirmed according to the actual product configuration. Please contact Haoqintech for detailed specifications and customization requirements.
Why Choose Haoqintech
Haoqintech supplies sanitary stainless steel components and fluid-processing equipment for food, beverage, pharmaceutical, fermentation, liquid culture, and other hygienic processing applications.
For projects requiring multiple sanitary components, we can also support the selection and integration of related filters, strainers, fittings, valves, tank components, and fluid-processing equipment.
Contact us with your pipeline size, connection type, mesh requirement, and application details for product selection and quotation.
