Description

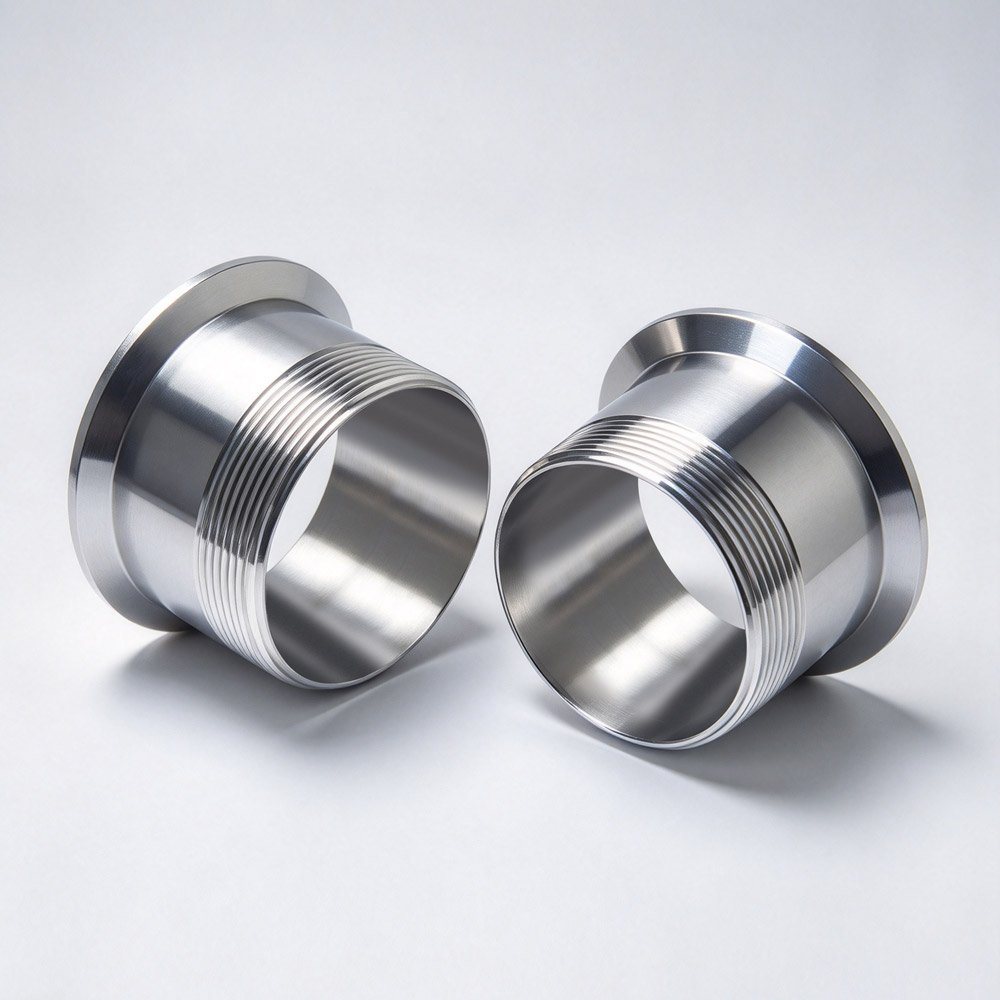

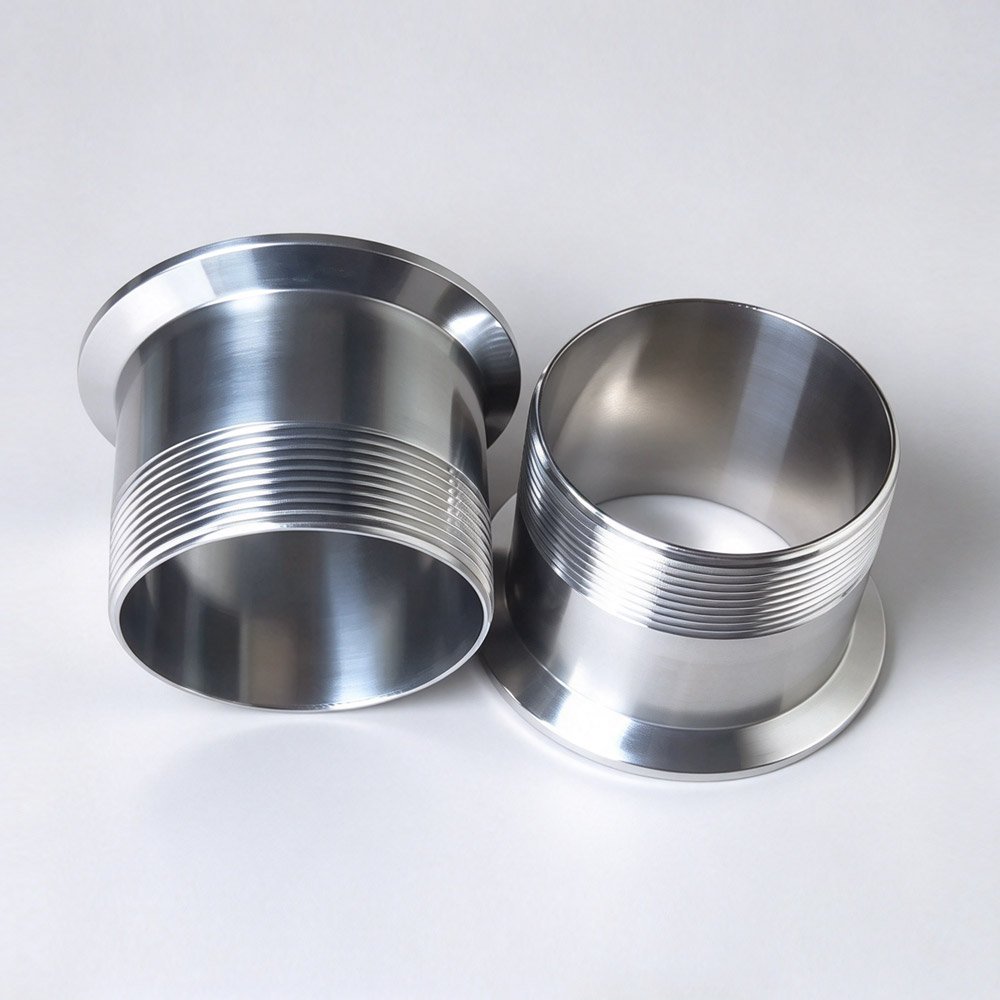

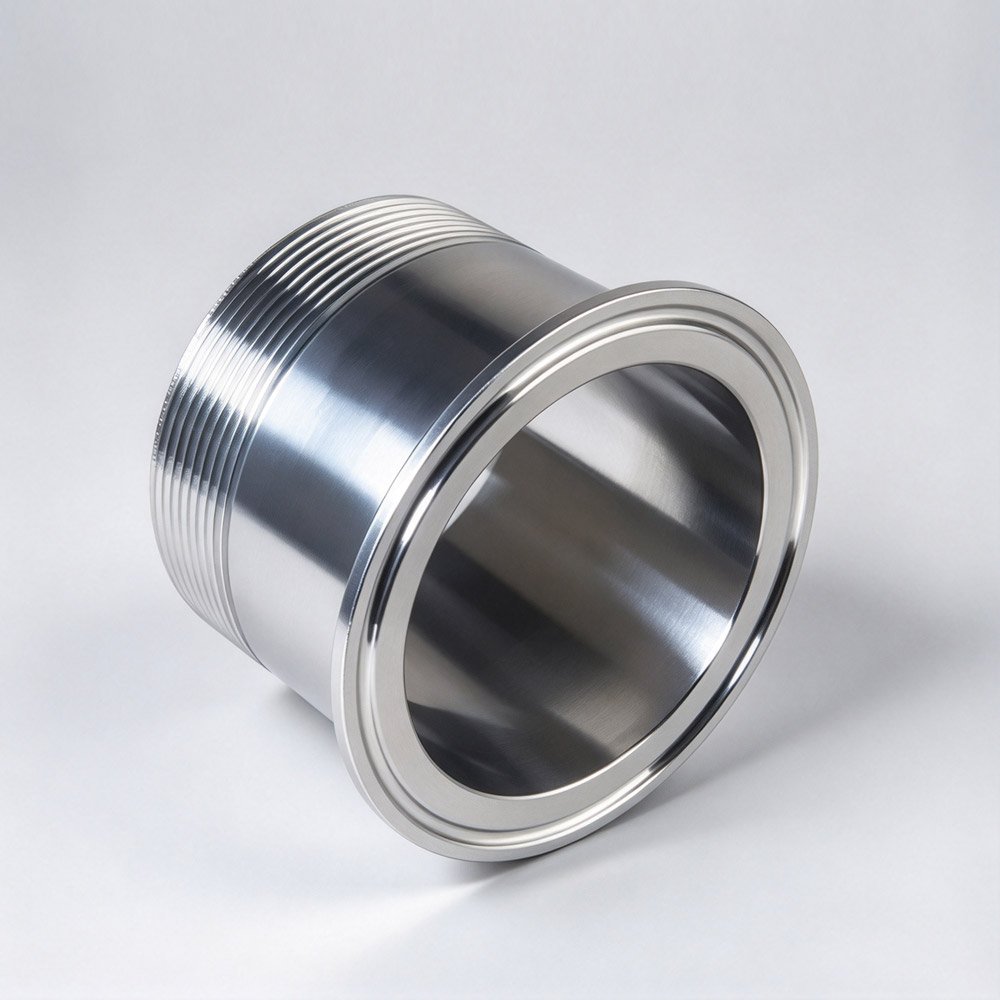

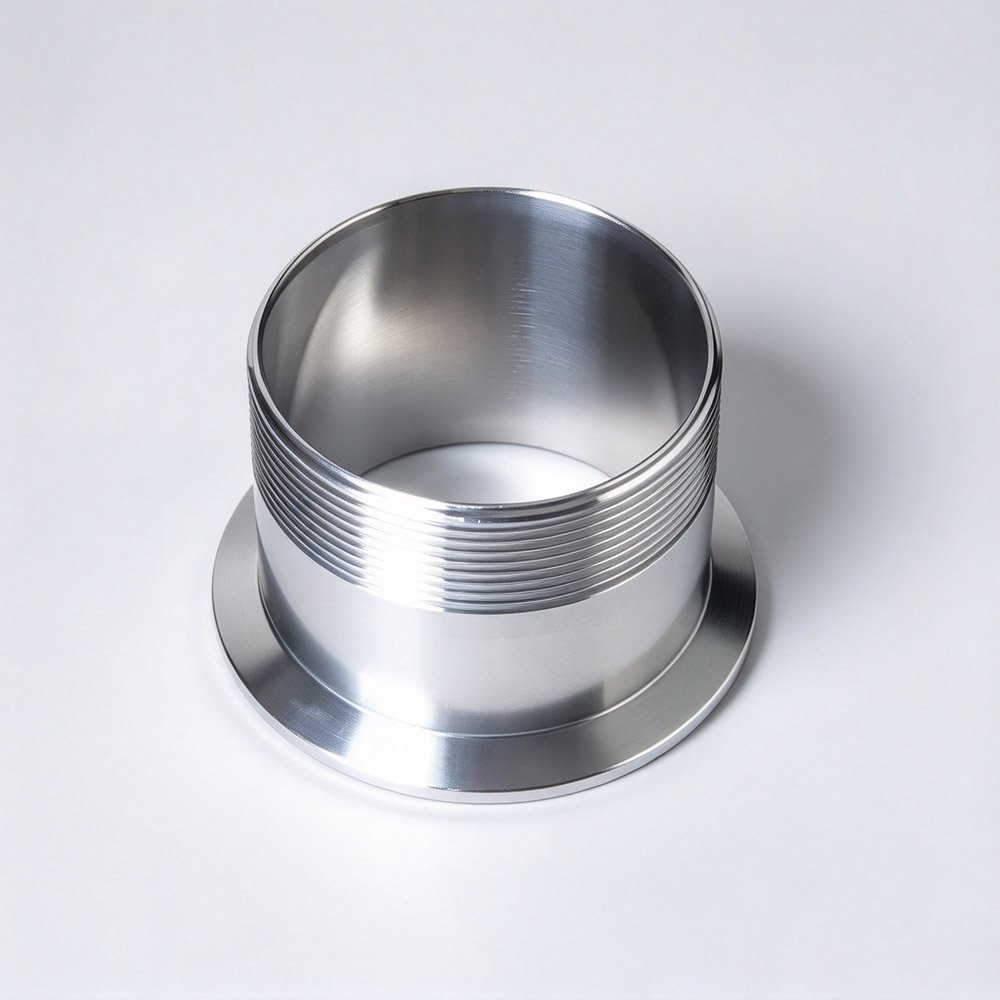

304 Stainless Steel Sanitary Tri-Clamp Male Thread Adapter
The 304 Stainless Steel Sanitary Tri-Clamp Male Thread Adapter is designed to provide a practical connection between Tri-Clamp sanitary piping systems and equipment or fittings using male threaded connections.
One end features a sanitary Tri-Clamp ferrule for quick clamp assembly, while the other end provides an external male thread for connection with a compatible threaded component.
This type of adapter is useful when a hygienic process line needs to transition between a Tri-Clamp connection and a threaded connection without changing the entire piping arrangement.
Key Features
- 304 stainless steel construction for corrosion resistance and durability
- Tri-Clamp connection for quick installation and disassembly
- External male thread for connection with compatible threaded components
- Smooth internal passage suitable for hygienic fluid-processing systems
- Compact design for sanitary piping and equipment connections
- Multiple nominal sizes from DN15 to DN100
- Suitable for system modification, equipment connection and piping transitions
Connection Design
The adapter combines two connection types in one fitting:
Tri-Clamp side → Male threaded side
The Tri-Clamp end can be connected using a compatible sanitary clamp and gasket, while the male-threaded end connects to a matching female-threaded component.
This makes the adapter useful when sanitary piping needs to interface with existing threaded equipment, valves, fittings or other process components.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Sanitary Tri-Clamp Male Thread Adapter |
| Material | 304 Stainless Steel |
| Connection Type | Tri-Clamp × Male Thread |
| Nominal Sizes | DN15 / DN20 / DN25 / DN32 / DN40 / DN50 / DN65 / DN80 / DN100 |
| Thread Type | Male / External Thread |
| Tri-Clamp Connection | Sanitary Clamp Connection |
| Surface | Machined / Polished |
| Application | Food, Beverage, Dairy, Pharmaceutical, Chemical and Hygienic Fluid Processing |
Note: Thread specification should be selected according to the actual product configuration and customer requirement.
Typical Applications
This sanitary male thread adapter can be used in hygienic fluid-processing and process piping systems where a Tri-Clamp connection needs to transition to a threaded connection.
Typical applications include:
- Food and beverage processing
- Dairy processing
- Brewing systems
- Pharmaceutical processing
- Liquid culture and fermentation systems
- Hygienic process piping
- Stainless steel tanks and vessels
- Fluid transfer equipment
- Sanitary valves and fittings
Why Use a Tri-Clamp to Male Thread Adapter?
In hygienic processing systems, Tri-Clamp connections are commonly used where frequent disassembly, cleaning and maintenance are required. However, some equipment or existing piping components may use threaded connections.
A Tri-Clamp to male thread adapter provides a simple transition between these two connection methods.
It can therefore be useful when:
- connecting sanitary piping to threaded equipment;
- integrating existing threaded components into a hygienic piping system;
- modifying or extending an existing process line;
- connecting different types of sanitary fittings.
