Description

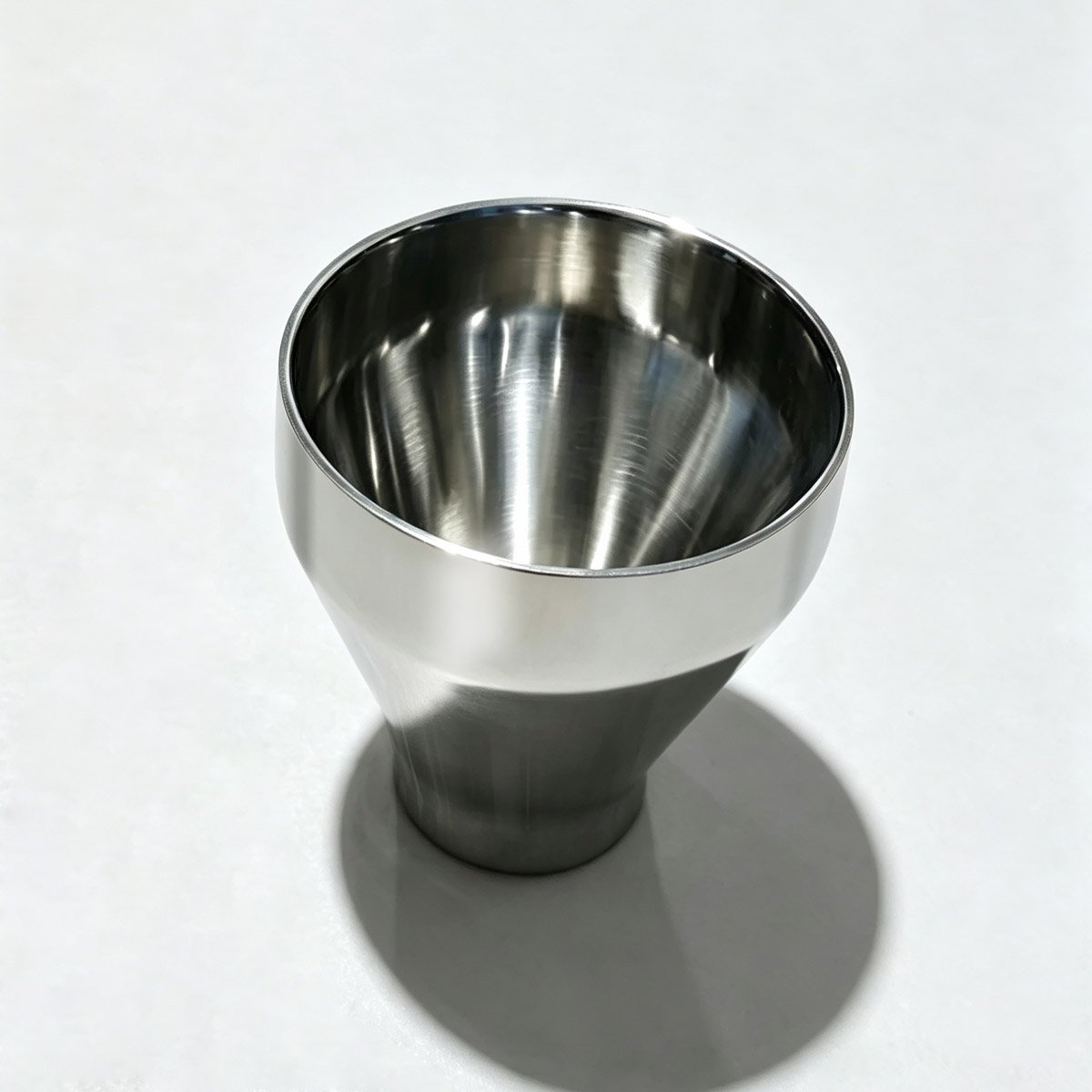

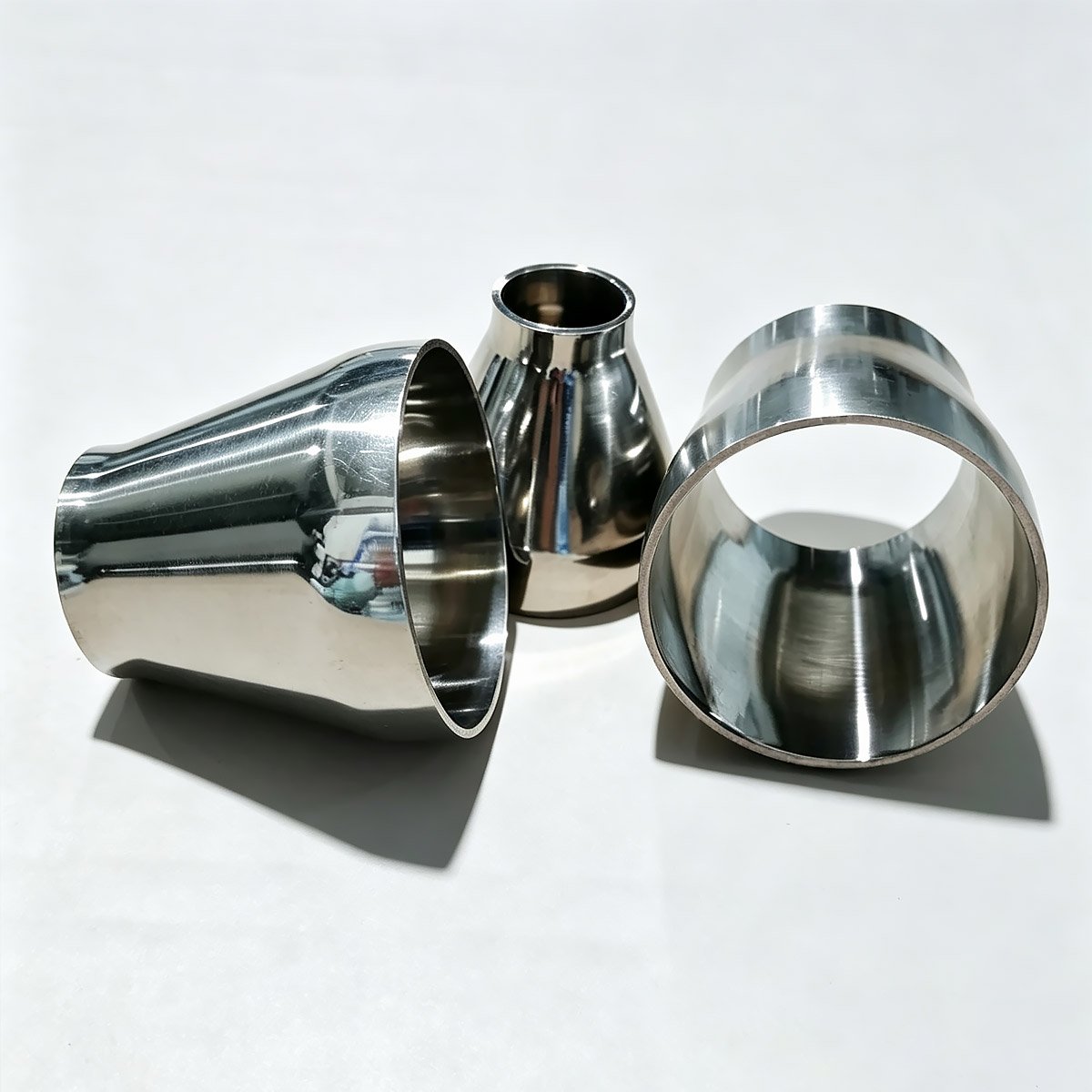

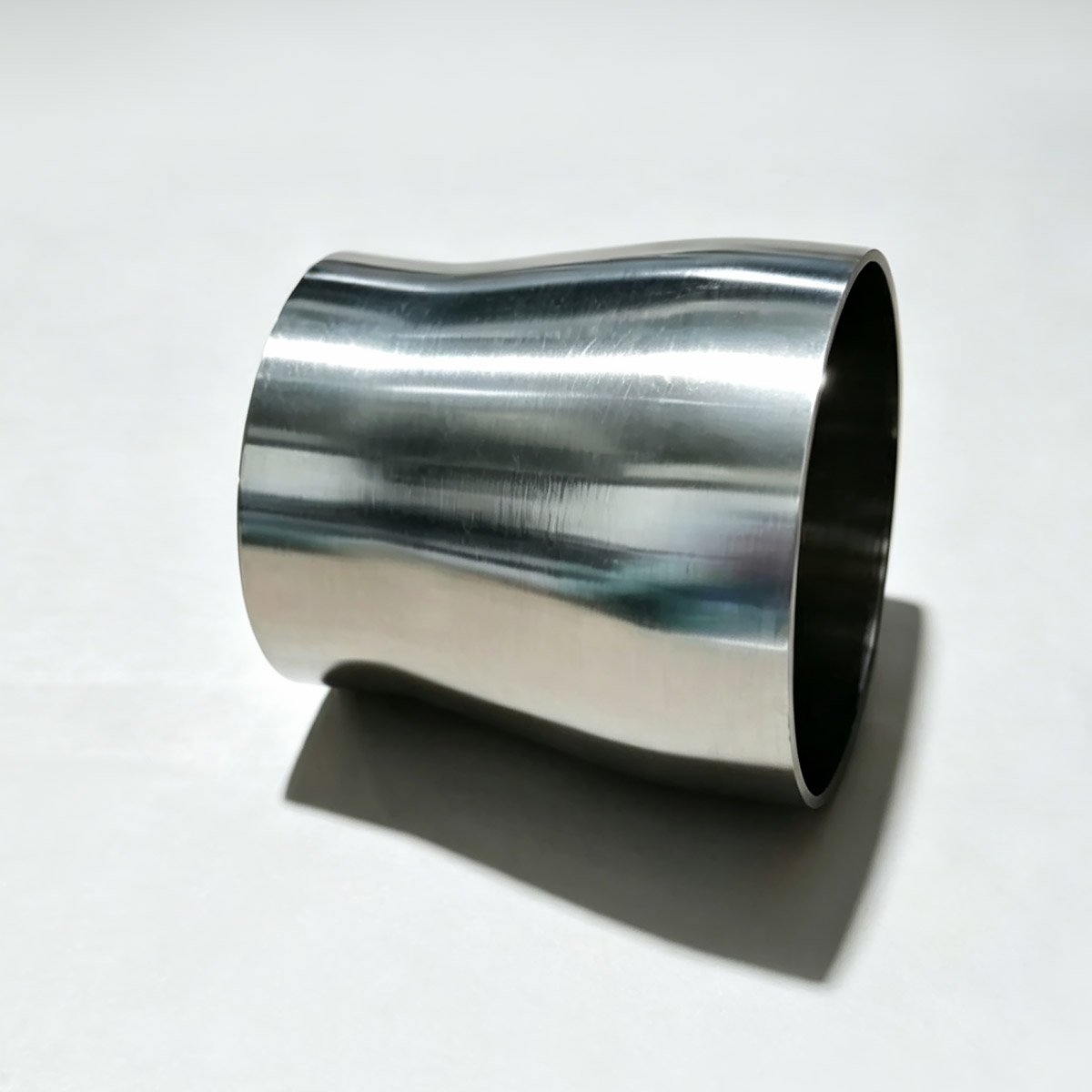

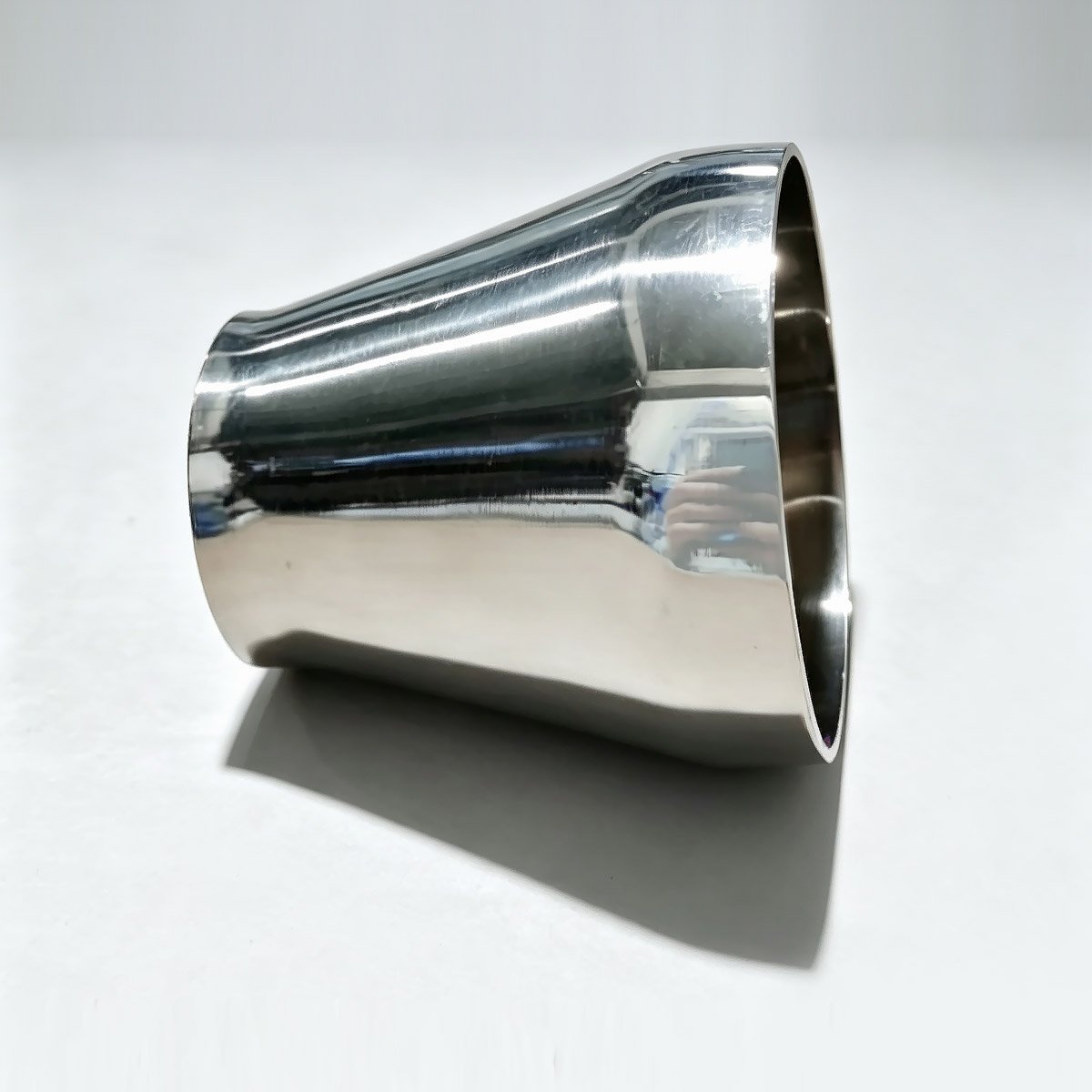

304 Stainless Steel Sanitary Butt-Weld Concentric Reducer
The Haoqintech 304 Stainless Steel Sanitary Butt-Weld Concentric Reducer is designed to connect sanitary stainless steel tubes with different outside diameters in hygienic fluid-processing systems.
The concentric reducer provides a centered transition between two tube sizes, helping create a compact and continuous piping layout. The butt-weld connection is suitable for permanent sanitary piping installations where a clean connection with minimal external components is preferred.
Made from 304 stainless steel, this sanitary reducer can be used in a range of hygienic fluid-handling applications, including food and beverage processing, dairy processing, liquid culture systems, fermentation equipment, and other stainless steel process piping systems.
Multiple tube-size combinations are available to accommodate different sanitary piping requirements.
Key Features
- 304 stainless steel construction
- Sanitary concentric reducer design
- Butt-weld connection
- Connects sanitary tubes of different diameters
- Multiple tube OD combinations available
- Compact and clean piping transition
- Suitable for hygienic fluid-processing systems
- Suitable for factory-direct supply and project applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Sanitary Concentric Reducer |
| Material | 304 Stainless Steel |
| Connection Type | Butt Weld |
| Reducer Type | Concentric |
| Available Tube OD | Ø19–Ø63 mm |
| Available Size Combinations | 21 |
| Application | Hygienic fluid processing and sanitary process piping |
Other specifications such as wall thickness, surface finish, and applicable tube standards can be confirmed according to project requirements.
Applications
This sanitary stainless steel reducer can be used in hygienic piping systems where different tube diameters need to be connected.
Typical applications include:
- Food and beverage processing
- Dairy processing
- Pharmaceutical and hygienic processing
- Liquid culture systems
- Fermentation systems
- Stainless steel process piping
- Hygienic fluid transfer systems
- Tank and vessel piping connections
Why Use a Sanitary Concentric Reducer?
When a sanitary piping system changes from one tube diameter to another, a reducer provides a dedicated transition between the two sizes.
A concentric reducer keeps the two tube connections centered on the same axis, making it suitable for many vertical or centered piping arrangements. The butt-weld configuration also allows the reducer to become part of a permanent welded piping assembly.
For applications where drainage, flow direction, equipment layout, or installation conditions require a different geometry, the appropriate reducer type should be selected according to the actual piping design.
Connection
This product uses a butt-weld connection for permanent installation in sanitary stainless steel tubing systems.
Before ordering, please confirm the required tube outside diameters and welding requirements for your piping system.
Factory Direct Supply
Haoqintech supplies sanitary stainless steel components for hygienic fluid-processing and process-engineering applications.
For projects requiring multiple reducer sizes or other sanitary fittings, we can supply different tube-size combinations according to the piping requirements.
Contact Haoqintech for size availability, specifications, and quotation.
