304 Stainless Steel Braided Sanitary Flexible Hose with Tri-Clamp Ends
Product Overview
Haoqintech supplies 304 stainless steel braided sanitary flexible hoses for equipment connections and fluid handling applications in hygienic processing systems.

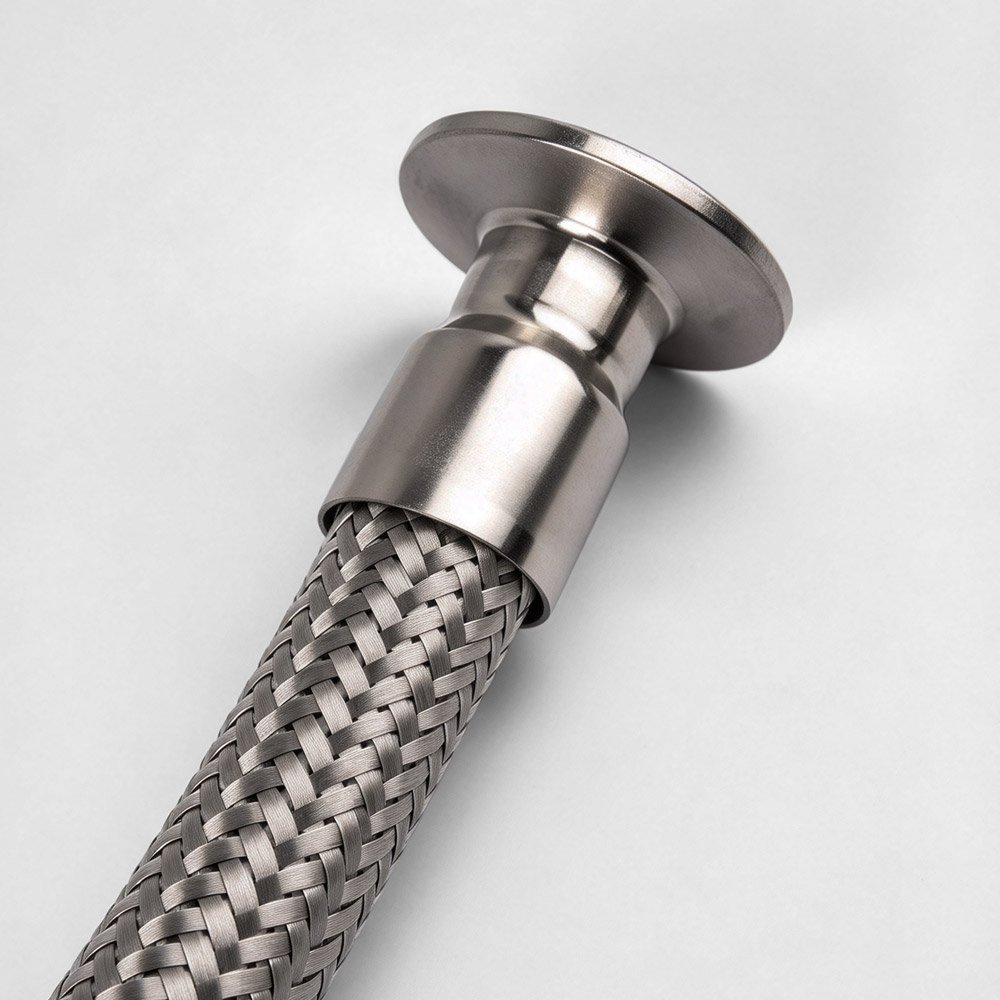

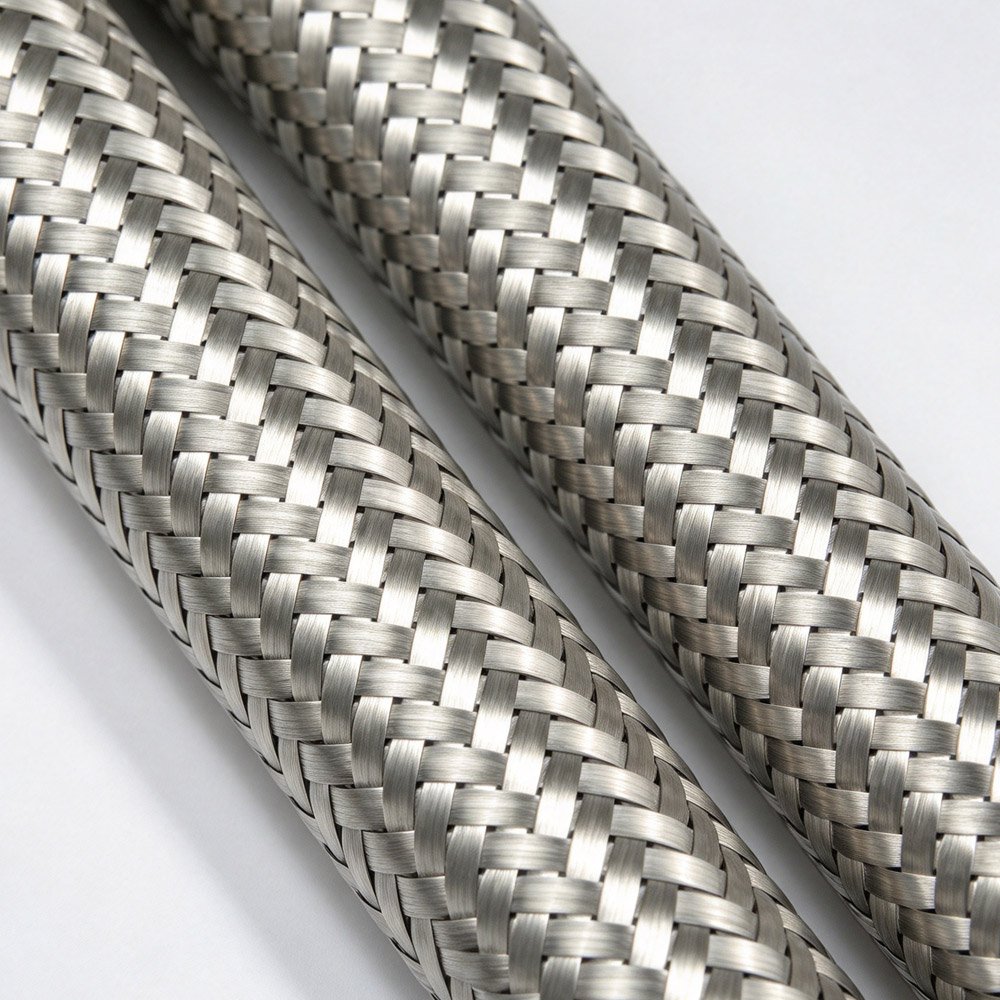

The hose assembly features a 304 stainless steel inner tube, an external 304 stainless steel braided reinforcement layer, and 304 stainless steel Tri-Clamp ferrules at both ends.
The flexible metal construction provides an alternative to rigid pipe sections where a flexible connection is required. The Tri-Clamp ends allow connection to compatible sanitary piping and equipment using the appropriate clamp and gasket.
The standard length is 300 mm, with 18 nominal size options ranging from DN10 to DN450. Actual connection dimensions and compatibility should be confirmed for the selected size before ordering.
Key Features
- 304 Stainless Steel Construction: The inner tube, external braided reinforcement, and end ferrules are made of 304 stainless steel.
- Tri-Clamp Connections at Both Ends: Designed for compatible sanitary clamped piping and equipment connections.
- Flexible Metal Hose Assembly: Suitable for applications requiring a flexible connection between compatible system components.
- 300 mm Standard Length: A defined length for equipment connection planning.
- 18 Nominal Size Options: From DN10 to DN450 to support different piping and equipment requirements.
- B2B Supply: Contact Haoqintech for dimensional confirmation, technical information, and project quotations.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Braided Sanitary Flexible Hose |
| Inner Tube Material | 304 Stainless Steel |
| Outer Braided Layer | 304 Stainless Steel |
| End Ferrule Material | 304 Stainless Steel |
| End Connection | Tri-Clamp × Tri-Clamp |
| Standard Length | 300 mm |
| Available Sizes | DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN70, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450 |
Applications
This braided flexible hose may be considered for compatible equipment and piping connections in the following sectors, subject to verification of the complete assembly’s suitability for the intended service:
- Food and beverage processing
- Dairy processing equipment
- Brewing and beverage production
- Hygienic fluid transfer systems
- Stainless steel tanks and process equipment
- Pharmaceutical and biotechnology process equipment, where applicable requirements are met
- Industrial fluid handling systems requiring compatible stainless steel flexible connections
The suitability of the hose depends on the process fluid, pressure, temperature, installation conditions, cleaning procedures, and applicable industry requirements.
How to Select the Correct Size
1. Confirm the Nominal Size
Choose the required DN size based on your piping or equipment specification. DN is a nominal designation and should not be treated as the measured inner diameter or the Tri-Clamp ferrule diameter.
2. Verify the Tri-Clamp Connection
Confirm the ferrule outside diameter and applicable connection standard at both ends. Different nominal sizes and connection standards may use different ferrule dimensions.
3. Check the Installation Length
The standard hose length is 300 mm. Check the available installation space and required connection geometry before ordering.
4. Confirm Operating Conditions
Provide the intended working pressure, operating temperature, process fluid, and cleaning requirements. These details are necessary to determine whether the selected hose assembly is suitable for the application.
5. Check Installation and Bending Requirements
Follow the supplier’s specified minimum bend radius and installation instructions. Avoid twisting, sharply bending, or applying loads beyond the assembly’s rated limits.
Ordering Information
To help us confirm the correct configuration, please provide:
- Required nominal size (DN)
- Required Tri-Clamp ferrule dimensions or connection standard
- Required quantity
- Intended application and process fluid
- Working pressure and operating temperature
- Cleaning or sterilization requirements, if applicable
Please confirm all critical dimensions and operating limits before placing an order.
Why Contact Haoqintech?
Haoqintech supplies stainless steel sanitary components for fluid handling and process equipment applications. We support B2B customers with product specification checks and quotation requests based on their application and connection requirements.
For this braided flexible hose, please contact us with your required DN size, connection dimensions, quantity, and operating conditions.
Contact Haoqintech to confirm specifications and request a quotation.
