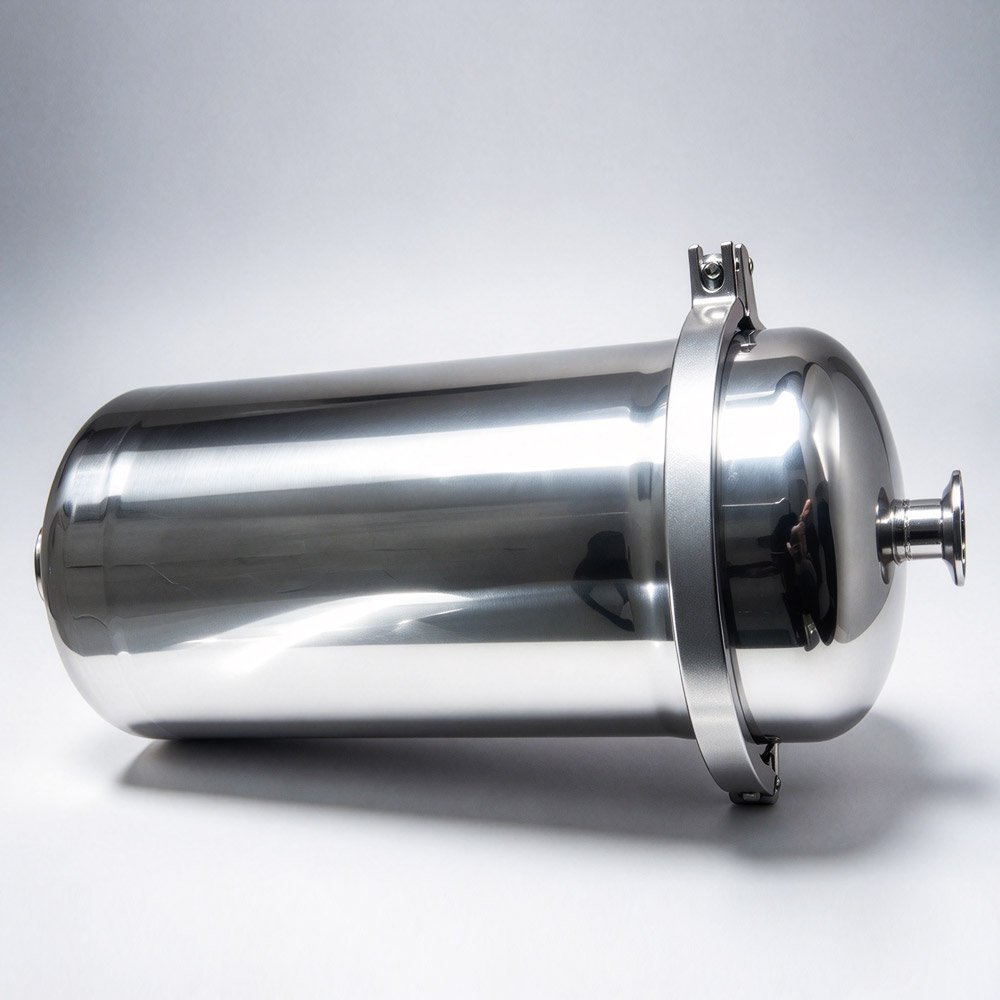

304 Stainless Steel Sanitary Dual Mesh Strainer
The Haoqintech 304 Stainless Steel Sanitary Dual Mesh Strainer is designed for hygienic liquid processing applications requiring stainless-steel mesh screening for particle separation.
The strainer features two cylindrical stainless-steel mesh elements installed side by side inside a single sanitary housing. The vertical configuration uses a bottom inlet and top outlet, providing a compact dual-element straining solution for sanitary process lines.
Available configurations include Ø32, Ø38, Ø45 and Ø51 sizes with 50.5 mm or 64 mm sanitary clamp connections.
Dual Mesh Element Design
Unlike a conventional single-element strainer, this sanitary dual mesh strainer incorporates two cylindrical stainless-steel mesh elements within one housing.
The two mesh elements are positioned side by side, allowing both elements to operate within the same sanitary body. This configuration provides an alternative to single-element strainers for liquid process applications requiring a dual mesh arrangement.
The stainless-steel mesh elements provide mechanical screening for particle separation, while the 304 stainless-steel housing is designed for hygienic liquid processing environments.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Sanitary Dual Mesh Strainer |
| Housing Material | Stainless Steel 304 |
| Mesh Element Material | Stainless Steel Mesh |
| Number of Mesh Elements | 2 |
| Element Shape | Cylindrical |
| Element Arrangement | Side by Side |
| Flow Configuration | Bottom Inlet / Top Outlet |
| Housing Diameter | Ø168 mm |
| Housing Length | 400 mm |
| Clamp Options | 50.5 mm / 64 mm |
| Available Sizes | Ø32 / Ø38 / Ø45 / Ø51 |
| Application | Hygienic Liquid Filtration / Particle Separation |
Available Configurations
| Configuration | Size | Housing | Connection | Mesh Elements |
|---|---|---|---|---|
| 1 | Ø32 | Ø168 × 400 mm | Clamp 50.5 mm | 2 |
| 2 | Ø38 | Ø168 × 400 mm | Clamp 50.5 mm | 2 |
| 3 | Ø45 | Ø168 × 400 mm | Clamp 64 mm | 2 |
| 4 | Ø51 | Ø168 × 400 mm | Clamp 64 mm | 2 |
Typical Applications
The 304 Stainless Steel Sanitary Dual Mesh Strainer can be used in hygienic liquid processing systems where stainless-steel mesh screening is required for particle separation.
Typical applications include:
- Food and beverage processing
- Dairy processing
- Fermentation systems
- Liquid culture processing
- Hygienic process piping
- Sanitary liquid processing systems
The appropriate mesh specification and connection configuration should be selected according to the process requirements.
Dual Mesh Strainer vs. Cartridge Filter Housing
This product uses cylindrical stainless-steel mesh elements, rather than disposable PP or other cartridge filter media.
A cartridge filter housing is designed to accommodate replaceable cartridge filter elements, while this dual mesh strainer uses two mesh elements installed side by side inside the sanitary housing.
The appropriate solution depends on the required filtration method, mesh specification, process conditions and application requirements.
Connection and Size Options
The strainer is available with 50.5 mm and 64 mm sanitary clamp connections.
Current configurations include Ø32, Ø38, Ø45 and Ø51 sizes, with a Ø168 × 400 mm housing.
For specific connection requirements or other configurations, contact Haoqintech to confirm availability.
Frequently Asked Questions
How many mesh elements are installed in the strainer?
Two cylindrical stainless-steel mesh elements are installed side by side inside the same sanitary housing.
What material is the strainer made from?
The current configuration is manufactured from 304 stainless steel, with stainless-steel mesh filter elements.
Is this a cartridge filter housing?
No. This product uses cylindrical stainless-steel mesh elements rather than disposable PP or other cartridge filter media.
What connection sizes are available?
The current configurations include 50.5 mm and 64 mm sanitary clamp connections.
What mesh specification is available?
Mesh specifications should be selected according to the application and required particle separation. Contact Haoqintech to confirm the available mesh specification for your process requirements.
Need Help Selecting a Sanitary Strainer?
Choosing between a Y-strainer, inline strainer, mesh strainer or cartridge filter housing depends on the process, connection size, filtration requirements and operating conditions.
See our Filter & Strainer Selection Guide for an overview of the main sanitary filtration and straining options.
For product specifications, configuration requirements or OEM inquiries, contact Haoqintech.
