Sanitary Stainless Steel Air Break Fitting with Sight Glass

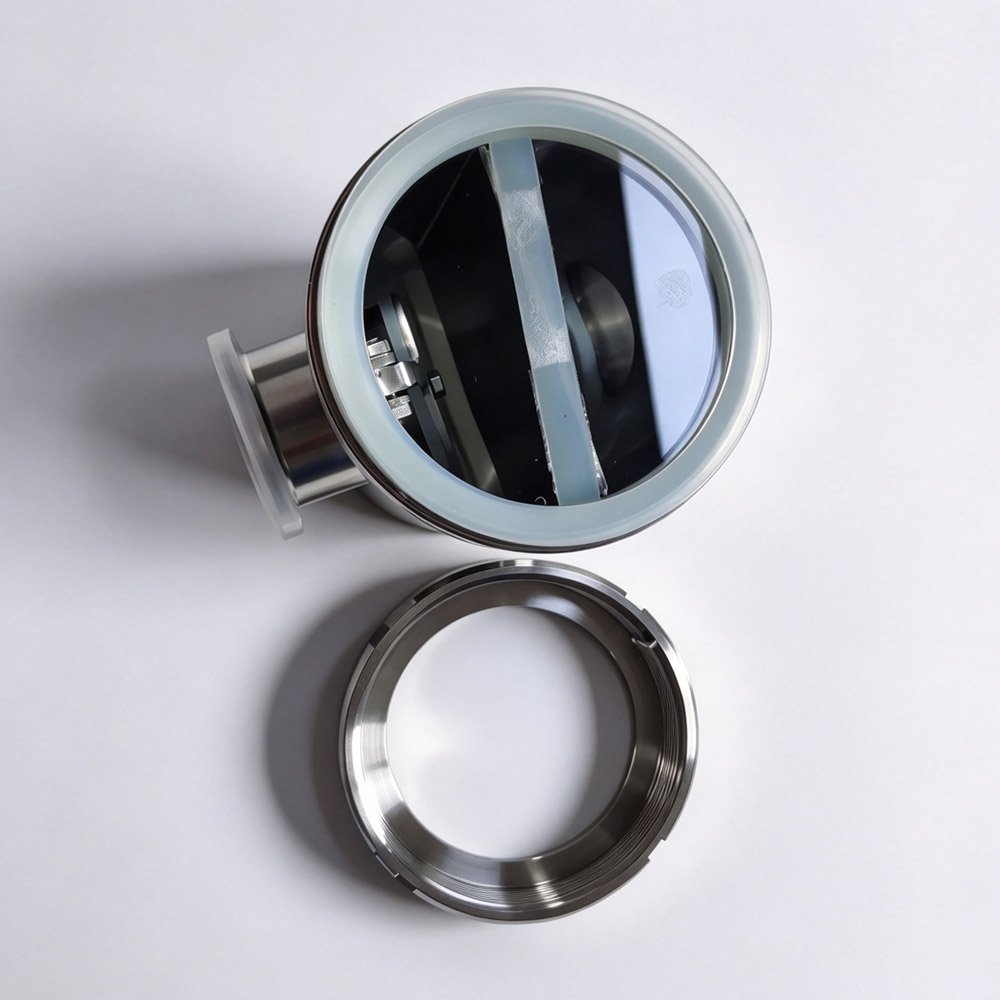

The Sanitary Stainless Steel Air Break Fitting with Sight Glass is a stainless steel component intended for suitable sanitary piping and drainage installations. Its clamp-style connection allows integration into compatible piping arrangements, while the sight glass provides a visible inspection window.
Constructed from 304 stainless steel, this fitting is available in several body diameters and inlet/outlet configurations. Selecting the correct combination helps ensure dimensional compatibility with the intended installation.
Key Features
- 304 stainless steel: Stainless steel construction for suitable industrial and sanitary applications.
- Tri-Clamp connections: Clamp-style connections for compatible piping assemblies.

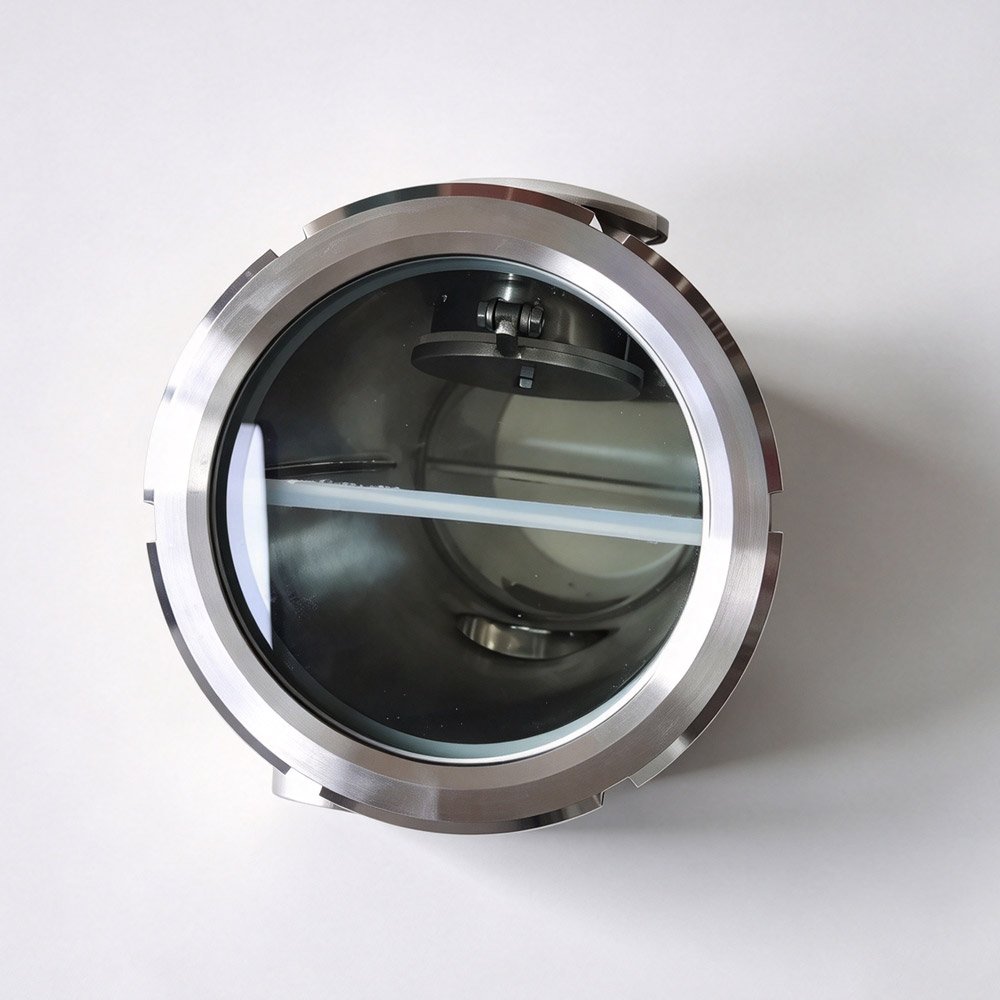

- Sight glass: Provides a viewing window for visual inspection of the internal area.
- Multiple size options: Nine body and inlet/outlet combinations are available.
- Application-specific selection: Confirm the connection dimensions and installation requirements before ordering.
Available Specifications
The following dimensions are based on the currently available product information. All dimensions are in millimeters (mm).
| Body Diameter | Inlet/Outlet Size | Clamp Diameter |
|---|---|---|
| 108 mm | 25 mm | 50.5 mm |
| 108 mm | 38 mm | 50.5 mm |
| 108 mm | 51 mm | 64 mm |
| 133 mm | 51 mm | 64 mm |
| 133 mm | 63 mm | 77.5 mm |
| 159 mm | 63 mm | 77.5 mm |
| 159 mm | 76 mm | 91 mm |
| 159 mm | 89 mm | 106 mm |
| 219 mm | 108 mm | 119 mm |
Please confirm the required body diameter, inlet/outlet size, and clamp dimensions when requesting a quotation.
Applications
Depending on the actual product configuration and installation design, potential application areas may include:
- Sanitary drainage arrangements
- Food and beverage processing facilities
- Dairy processing installations
- Pharmaceutical and hygienic process environments
- Compatible stainless steel piping systems requiring visual inspection
The suitability of the fitting for a specific drainage or process application should be confirmed before installation.
Installation and Selection Notes
Before ordering, please verify the required body diameter, inlet/outlet size, clamp diameter, and compatibility with the existing piping system.
The actual air-break configuration and its backflow-prevention performance depend on the product’s internal design and installation conditions. Confirm the manufacturer’s technical documentation before using the fitting in an application requiring a specified air gap or backflow-protection performance.
Material grades, sight-glass specifications, seals, operating limits, and applicable compliance requirements should be confirmed against the supplier’s documentation.
Request a Quote
Haoqintech supplies stainless steel sanitary components for industrial process applications.
Please provide your required dimensions, quantity, intended application, and any available connection drawings. Our team can review the requested configuration and help confirm the appropriate specification before quotation.
