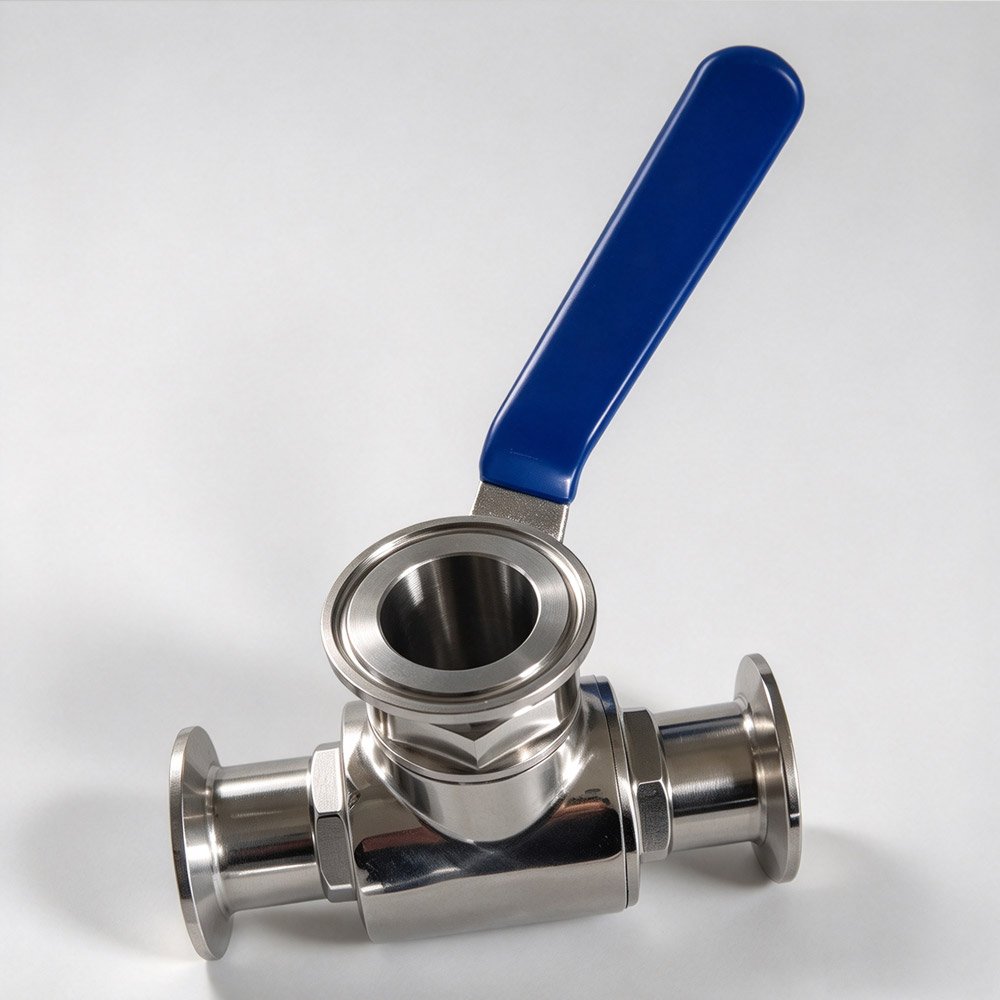

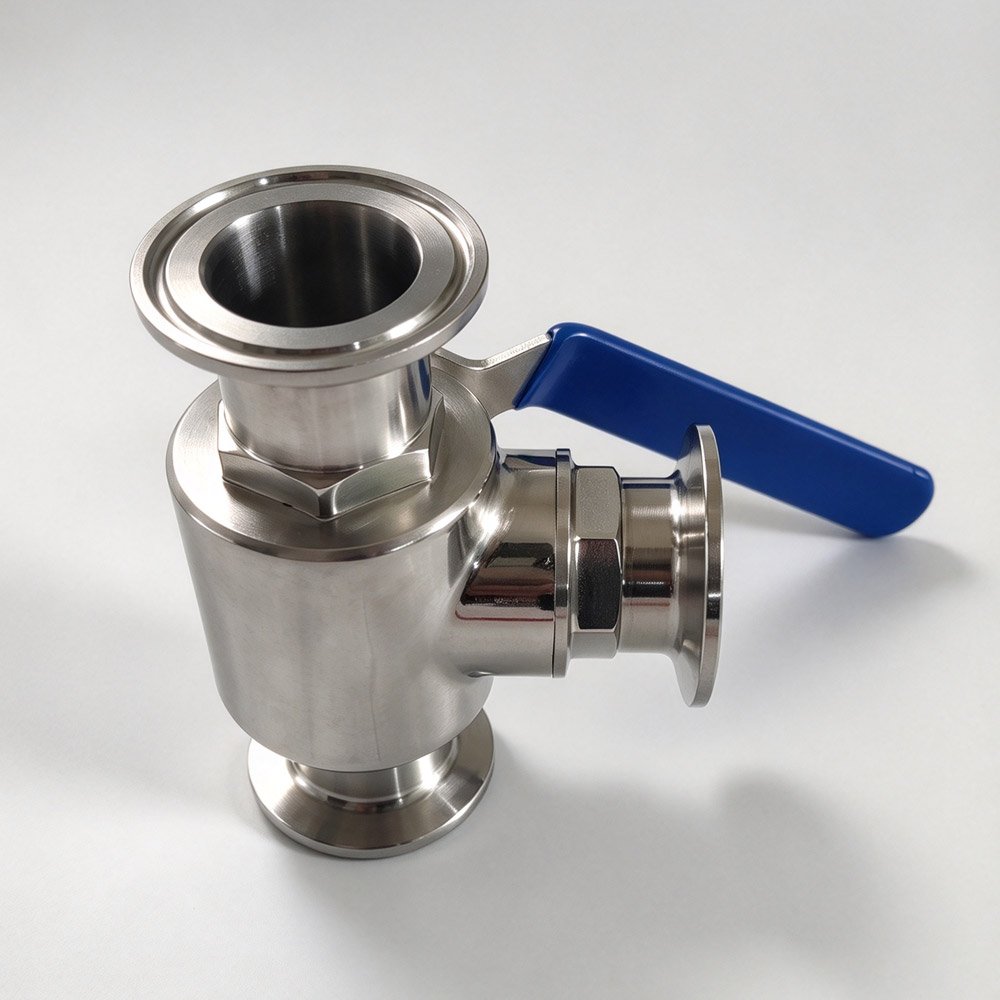

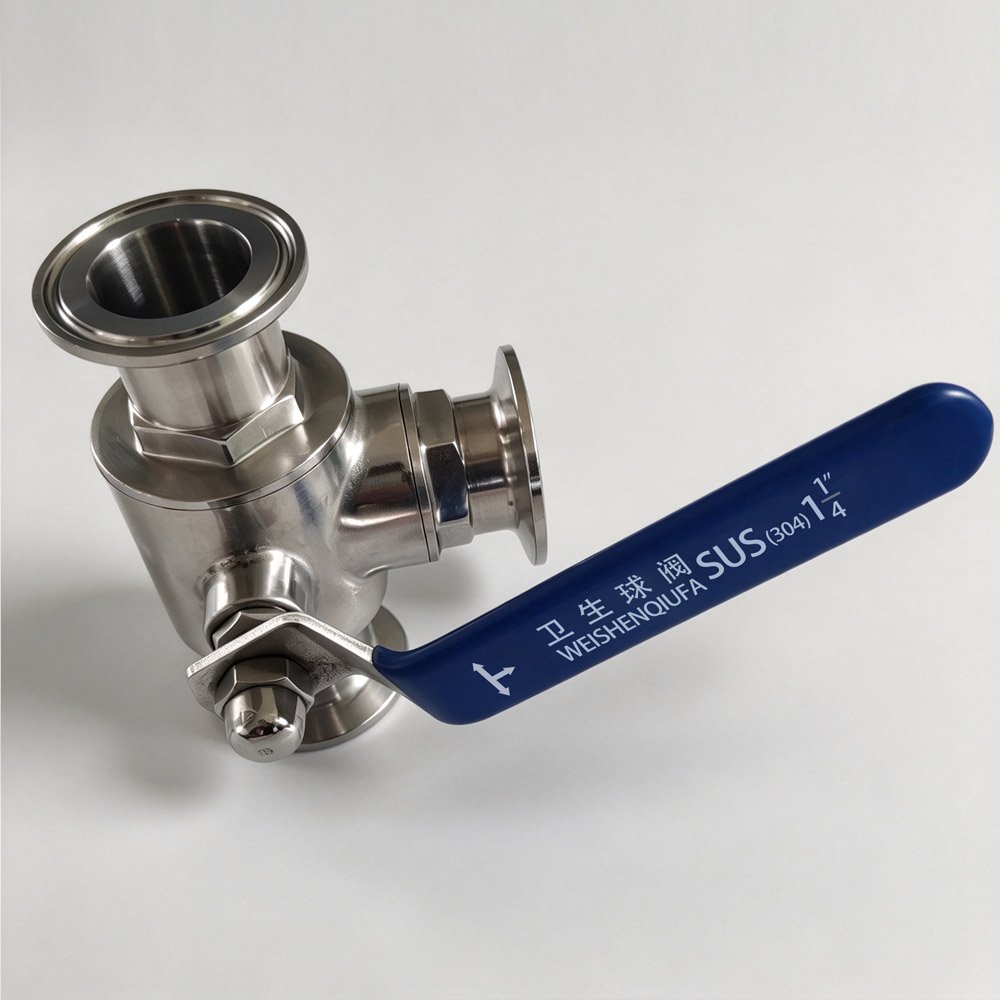

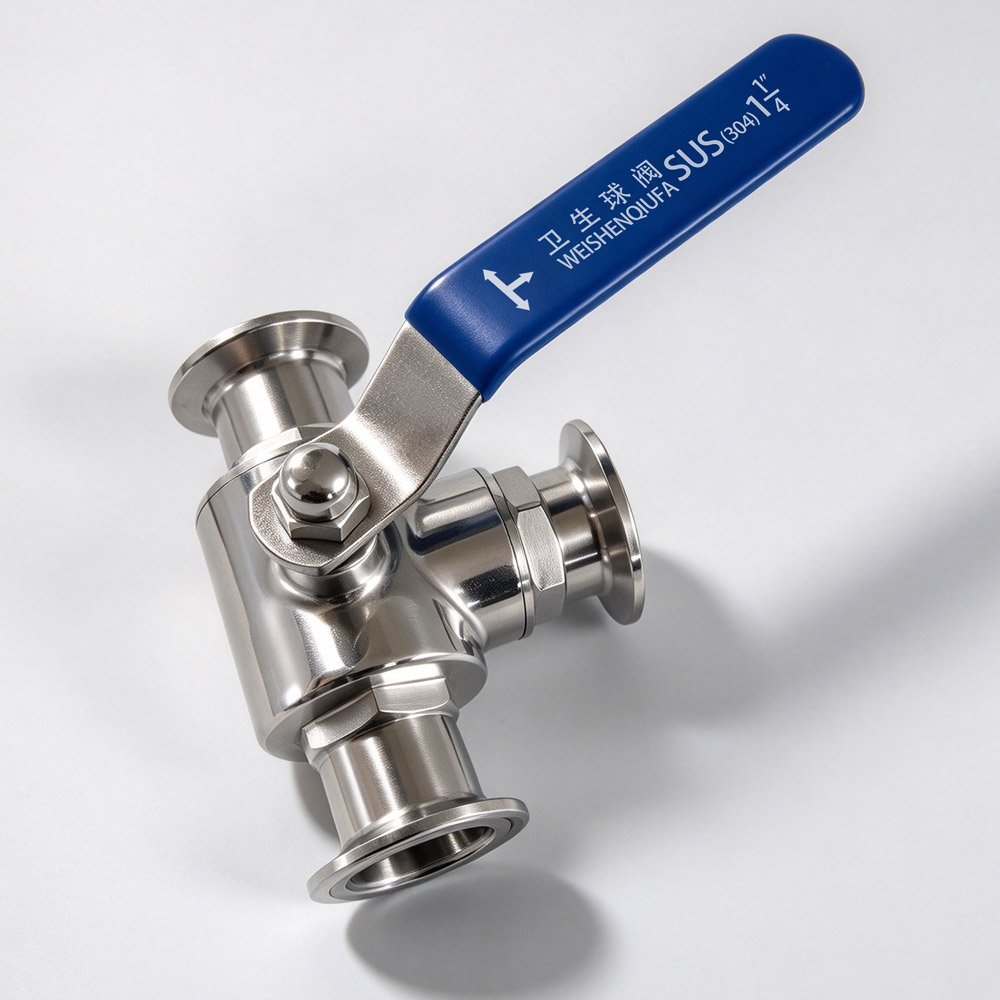

Sanitary Stainless Steel T-Port 3-Way Ball Valve
Product Overview
The Haoqintech Sanitary Stainless Steel T-Port 3-Way Ball Valve is designed for liquid process piping systems that require flexible flow routing. Its three-way configuration allows flow paths to be selected according to the valve’s internal port arrangement.
Made from 304 stainless steel, this manually operated valve features Tri-Clamp connections for convenient assembly and disassembly in compatible process piping systems.
It is an option for equipment manufacturers, system integrators and industrial buyers sourcing stainless steel valves for hygienic liquid processing applications.
Key Features
- 304 Stainless Steel: Stainless steel construction for compatible process environments.
- T-Port Configuration: Designed for flow routing and switching, subject to the valve’s internal port arrangement.
- Tri-Clamp Connections: Provide a removable connection method for compatible piping systems.
- Manual Operation: Lever handle operation without requiring a powered actuator.
- Multiple Size Options: Nine listed size options to accommodate different piping requirements.
- Equipment Integration: Suitable for consideration in compatible food and beverage processing, liquid handling and other process equipment.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Sanitary 3-Way Ball Valve |
| Port Configuration | T-Port |
| Body Material | Stainless Steel 304 |
| Connection Type | Tri-Clamp |
| Operation | Manual Lever Handle |
| Available Size Options | Φ19, Φ25, Φ32, Φ38, Φ51, Φ63, Φ76, Φ89, Φ102 |
| Brand | Haoqintech |
Technical note: The listed size options are reproduced as supplied. Please confirm the dimensional definition and matching Tri-Clamp connection size when selecting a valve.
Operating pressure, temperature range, seal material, surface finish and applicable certifications should be confirmed before the valve is specified for a particular process.
Typical Applications
Depending on the process requirements and compatibility of the valve, potential applications include:
- Food and beverage processing equipment
- Dairy and liquid product handling systems
- Brewing and beverage production lines
- Hygienic process piping assemblies
- Liquid transfer and routing equipment
- Custom process equipment manufactured by OEMs and system integrators
Final suitability depends on the process fluid, operating conditions, cleaning requirements and connection dimensions.
Installation and Selection
Before ordering, please check the following:
- Confirm the required valve size and the dimensions of the mating Tri-Clamp connections.
- Verify the required flow paths and confirm that the T-port configuration matches the intended operation.
- Confirm compatibility between the process fluid, valve materials and seals.
- Verify the required pressure and temperature ratings with the supplier before installation.
- Follow the applicable installation, cleaning and maintenance instructions for the specific valve model.
Ordering Information
Haoqintech supplies this valve in nine listed size options, from Φ19 to Φ102, in 304 stainless steel.
When requesting a quotation, please specify the required size, quantity, connection dimensions and intended application. Our team can help confirm the relevant product details before order placement.
Contact Haoqintech for availability, pricing and technical confirmation.
