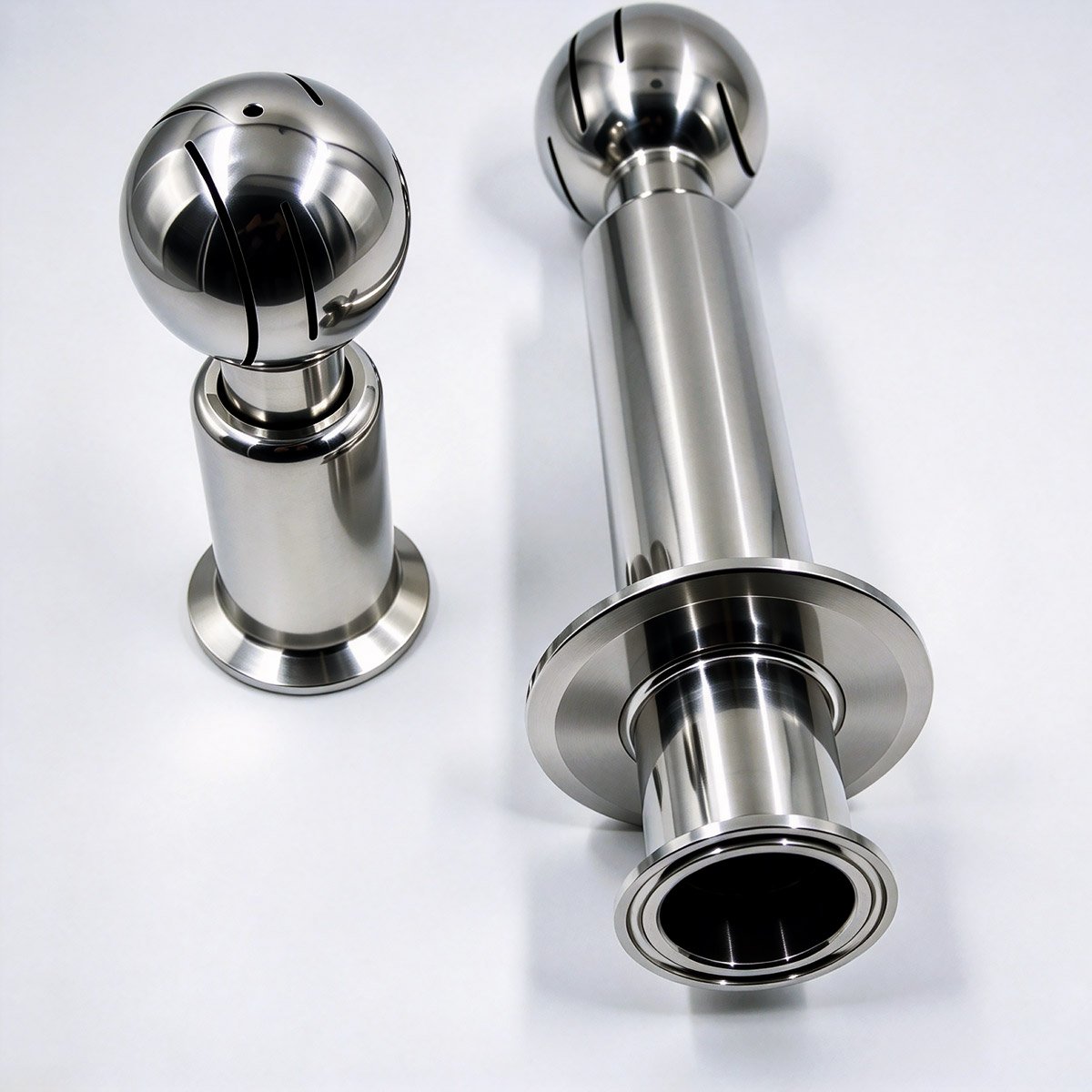

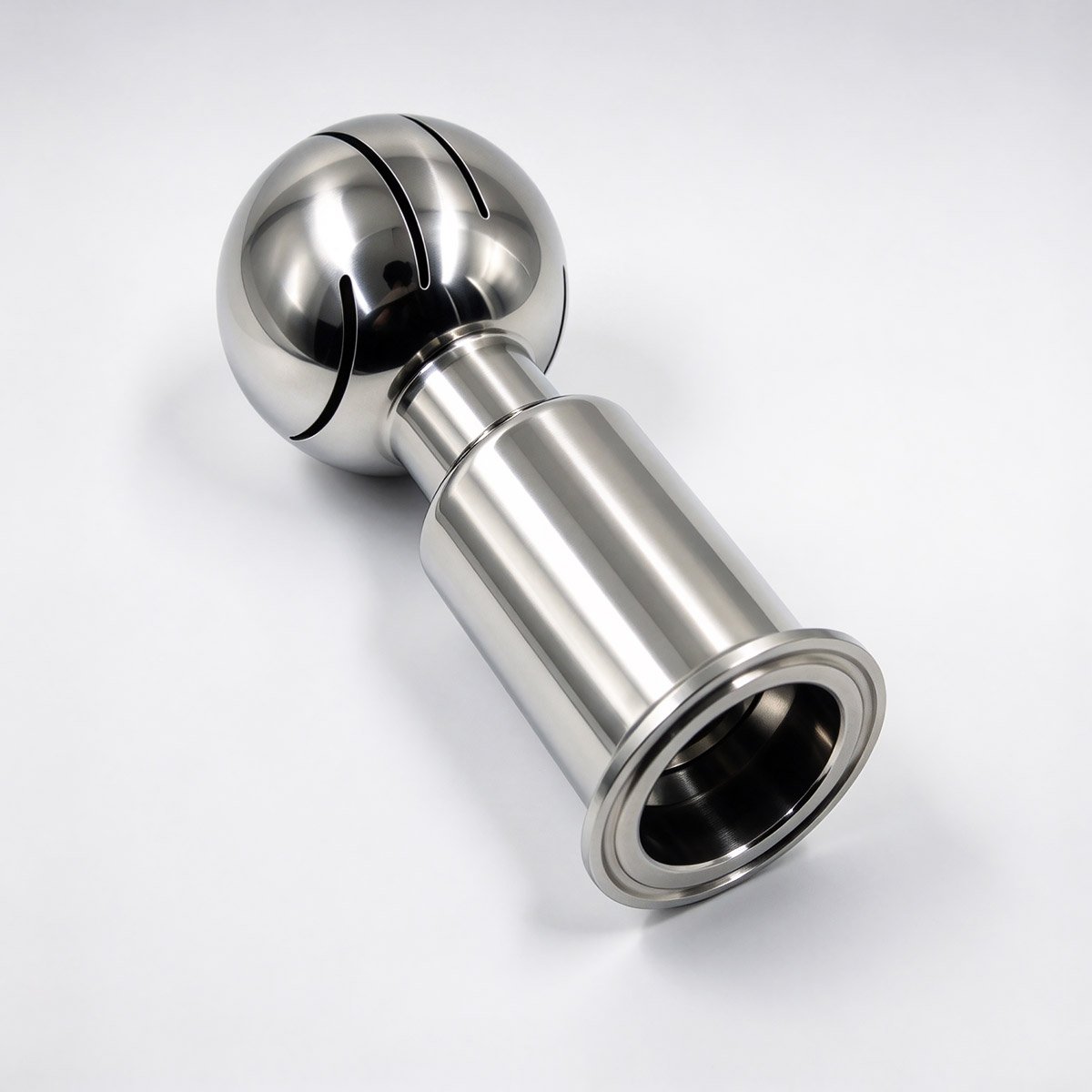

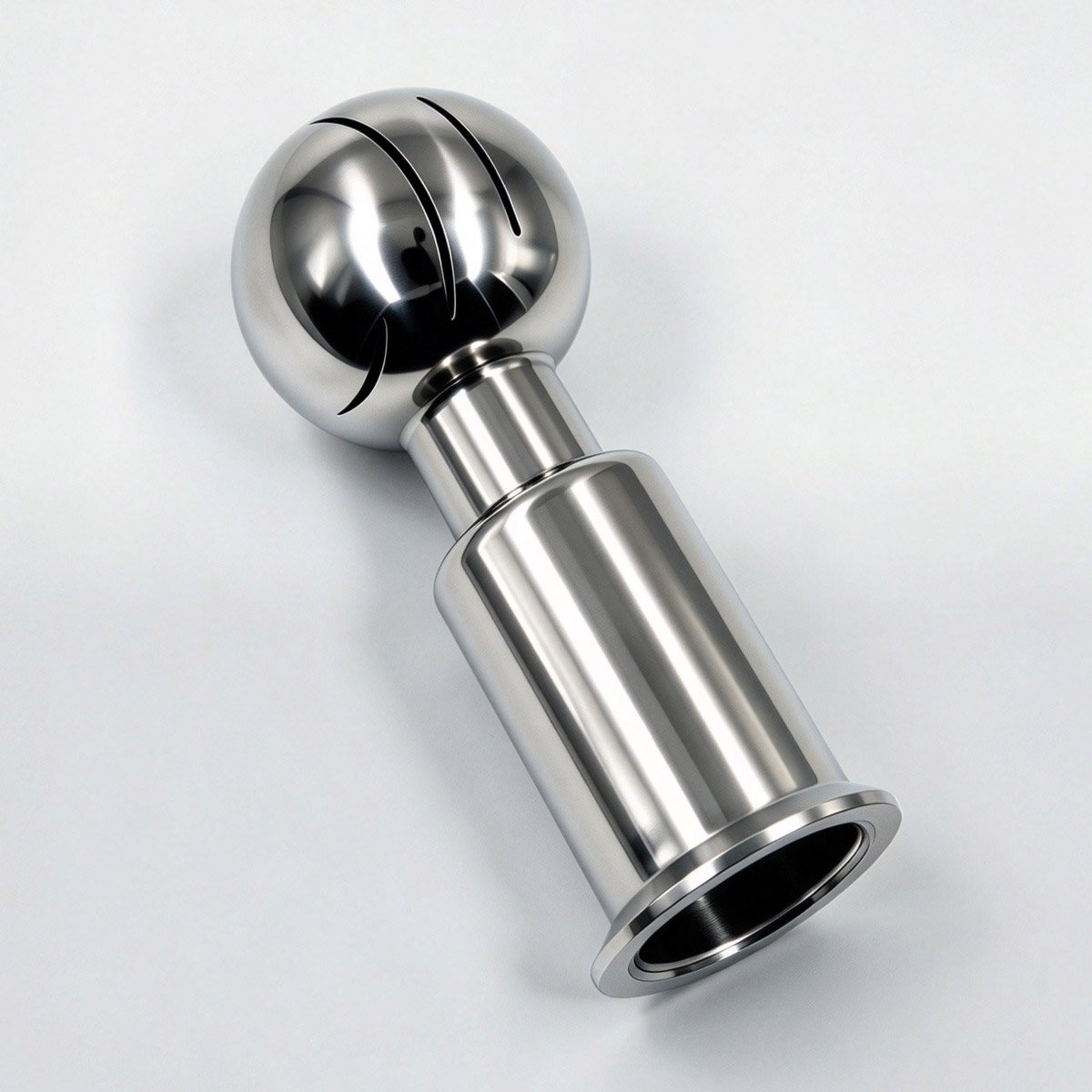

304 Stainless Steel Sanitary Tri-Clamp Rotary Spray Ball
The 304 Stainless Steel Sanitary Tri-Clamp Rotary Spray Ball is a tank cleaning component designed for hygienic processing systems and CIP applications.
The spray ball features a Tri-Clamp connection for convenient installation and removal from sanitary process piping or tank cleaning assemblies. During operation, the rotating spray mechanism provides dynamic spray coverage inside tanks and vessels, helping distribute cleaning liquid across the internal surfaces.
Constructed from 304 stainless steel, this spray ball is suitable for sanitary processing environments where cleanable construction, corrosion resistance and reliable mechanical performance are required.
Key Features
- 304 stainless steel construction
- Sanitary Tri-Clamp connection
- Rotary spray mechanism
- Designed for tank cleaning and CIP systems
- Suitable for installation inside tanks and process vessels
- Multiple connection and spray ball sizes available
- Suitable for food, beverage, dairy and other hygienic processing applications
- Can be integrated into sanitary process and cleaning systems
Available Sizes
| Connection Size | Clamp Size | Spray Ball Diameter |
|---|---|---|
| Ø25 mm | 50.5 mm | 53 mm |
| Ø32 mm | 50.5 mm | 53 mm |
| Ø38 mm | 50.5 mm | 53 mm |
| Ø51 mm | 64 mm | 64 mm |
| Ø57 mm | 77.5 mm | 76 mm |
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Rotary Spray Ball |
| Material | 304 Stainless Steel |
| Connection | Tri-Clamp |
| Connection Sizes | Ø25, Ø32, Ø38, Ø51, Ø57 mm |
| Clamp Sizes | 50.5, 64, 77.5 mm |
| Spray Ball Sizes | 53, 64, 76 mm |
| Installation | Tank / Process Vessel |
| Application | Tank Cleaning / CIP |
Applications
This sanitary rotary spray ball can be used in hygienic tank and vessel cleaning applications across a range of processing industries.
Food & Beverage Processing
For cleaning tanks and vessels used in food and beverage production.
Dairy Processing
Suitable for hygienic process tanks and vessels used in dairy applications.
Pharmaceutical Processing
For tank cleaning applications where sanitary equipment and cleanable process components are required.
Brewing & Fermentation
Suitable for cleaning fermentation tanks, storage vessels and other sanitary processing equipment.
Liquid Culture & Fermentation Systems
Can be integrated into tank cleaning systems used with liquid culture and fermentation equipment.
Connection and Size Selection
The appropriate spray ball configuration depends on the existing sanitary connection, tank design and cleaning system requirements.
The available configurations include Ø25 mm, Ø32 mm, Ø38 mm, Ø51 mm and Ø57 mm connection sizes with corresponding Tri-Clamp and spray ball dimensions.
Please confirm the required connection size and configuration when requesting a quotation.
Related Sanitary Tank Cleaning Products
Haoqintech also supplies other sanitary tank cleaning components, including rotary and fixed spray ball configurations with different connection options.
For projects requiring a different installation method, customers can compare the available spray ball configurations according to connection type and cleaning system design.
OEM & Project Supply
Haoqintech supplies stainless steel sanitary components for food, beverage, dairy, pharmaceutical, fermentation and liquid culture processing systems.
For OEM requirements, multiple-unit orders or complete sanitary processing projects, please contact our engineering team with the required connection size, quantity and application information.
